321616 Spur and Helical Gears

BROWNING BROWNING

YSS12H48

Description

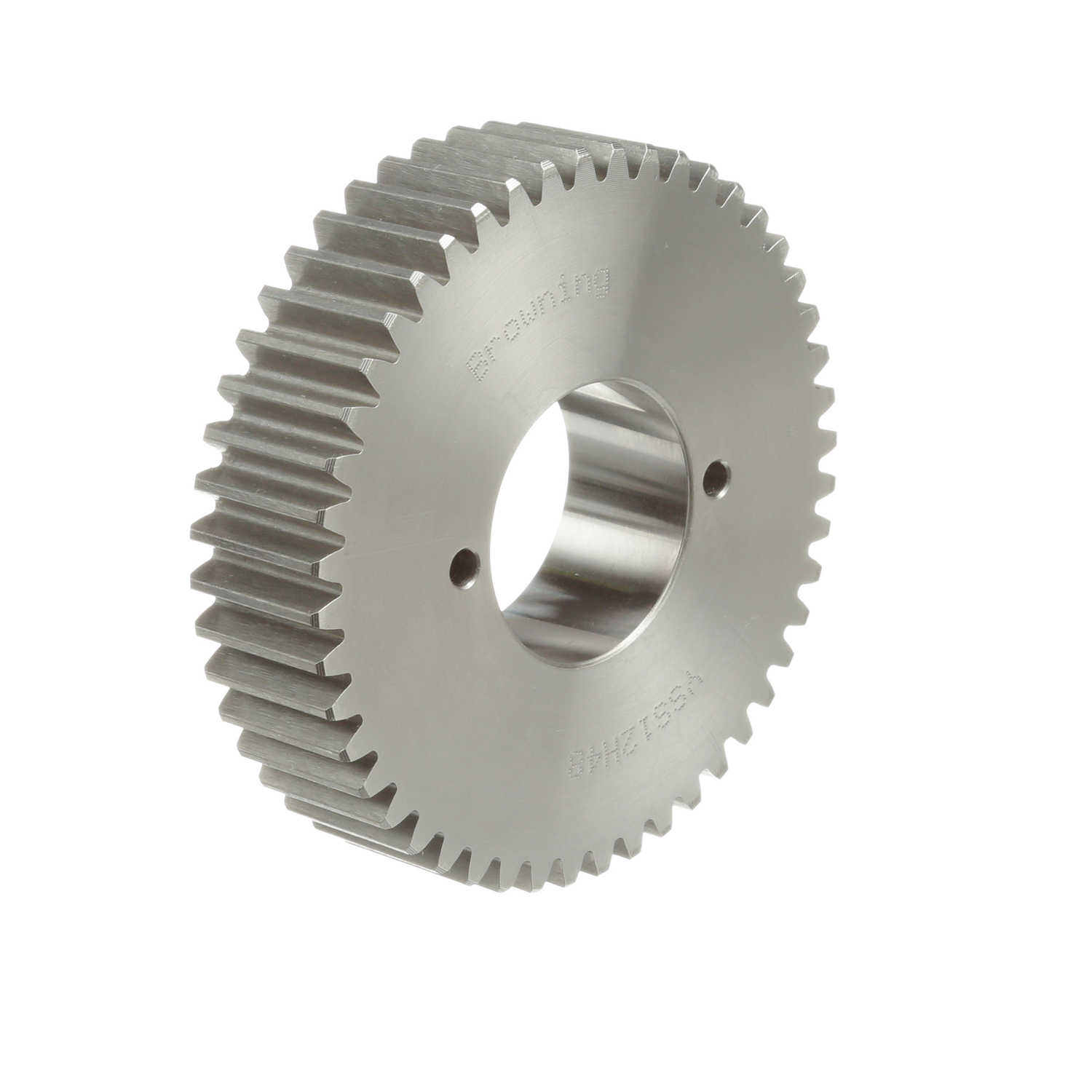

YSS12H48 SPUR GEAR ; 14 1/2 20 BUSHED

Spur Gear; 4" Pitch Diameter; 12 DP; 1" Face Width; Bushed; 48 Teeth; 20 Pressure Angle; H; 3/8 To 1-1/2" Bushing Bore Range; No Minimum Plain Bore; 2-1/2" Hub Diameter; Steel; No Hardened Teeth

Part #

YSS12H48

BDI #
321616

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Spur and Helical Gears
Brand
BROWNING
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
Weight / Kilogram
1.36
EAN
0662289147601
Product Group - BDI
M02182
Pitch
12 DP
Mounting Method
Bushed
Number of Teeth
48
Pressure Angle
20
Direction
Not Applicable
Bushing Size if bushed
H
Minimum Plain Bore
No
Gear Style
Spur Gear
Material
Steel
Hardened Teeth
No
Inch - Metric
Inch
Other Features
Bushing Sold Seperately | Bushing Not Included | Type 6 | Split Taper Bushings | Bore Size 3/8 and 7/16 has No Keyway
Category - BDI
Spur and Helical Gears
Harmonized Tariff Code
8483.40.90.00
Noun
Gear
Keyword String
Spur
Manufacturer URL
https://www.regalbeloit.com
Manufacturer Internal Number
1219955
Long Description
Spur Gear; 4" Pitch Diameter; 12 DP; 1" Face Width; Bushed; 48 Teeth; 20 Pressure Angle; H; 3/8 To 1-1/2" Bushing Bore Range; No Minimum Plain Bore; 2-1/2" Hub Diameter; Steel; No Hardened Teeth
Bushing Bore Range
3/8 To 1-1/2 Inch | 9.525 To 38.1 Millimeter
Bore
0 Inch | 0 Millimeter
Face Width
1 Inch | 25.4 Millimeter
Pitch Diameter
4 Inch | 101.6 Millimeter
Hub Diameter
2.5 Inch | 63.5 Millimeter
