320997 Spur and Helical Gears

BROWNING BROWNING

NSS535

Description

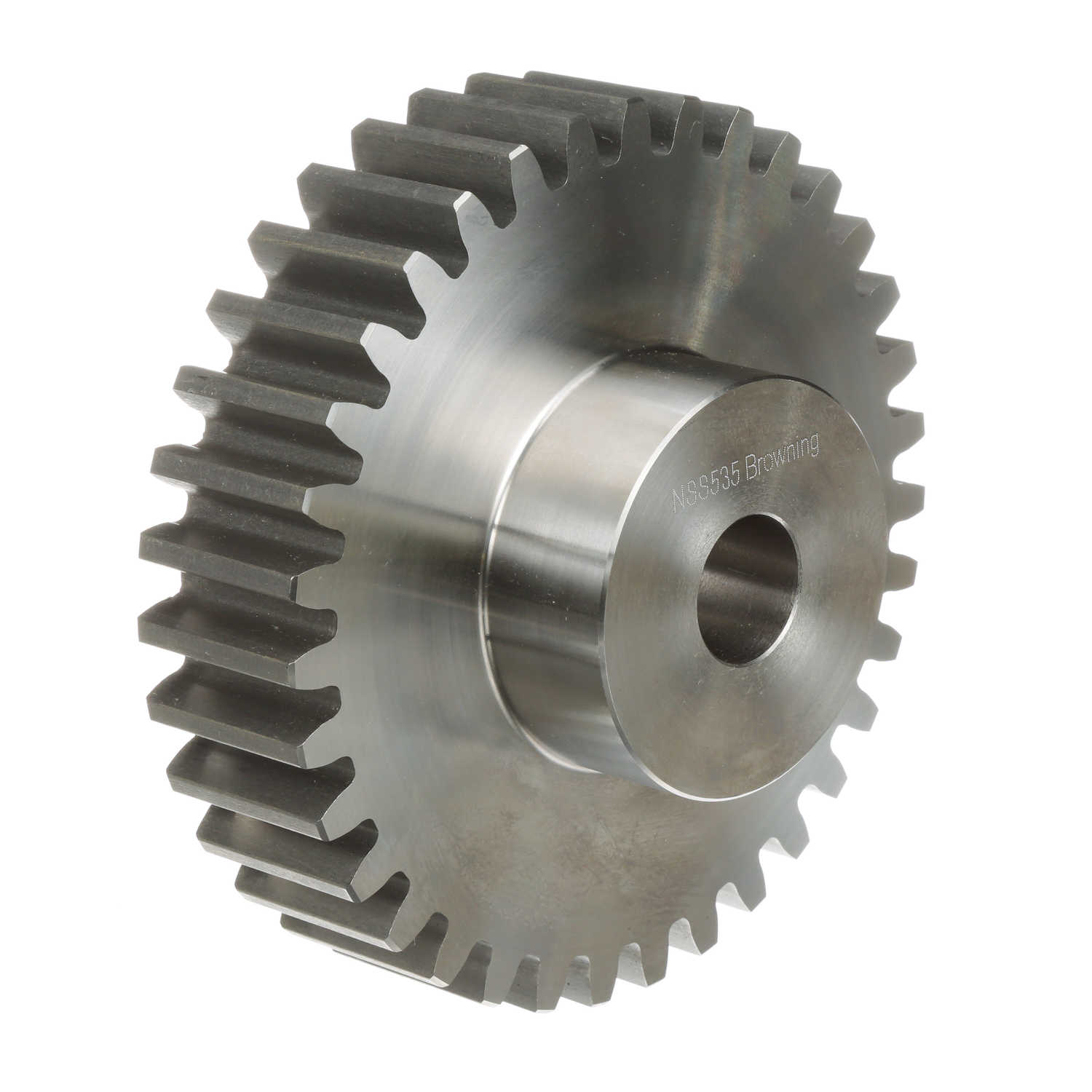

NSS535 SPUR GEAR

Spur Gear; 7" Pitch Diameter; 5 DP; 1-3/4" Face Width; Rough Bore; 35 Teeth; 14.5 Pressure Angle; No Bushing; Minimum Plain Bore; 2.375" Max Bore; 3-3/8" Hub Diameter; Steel; No Hardened Teeth

Part #

NSS535

BDI #
320997

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Spur and Helical Gears
Brand
BROWNING
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
Weight / Kilogram
9.99
EAN
0662289184385
Product Group - BDI
M02182
Pitch
5 DP
Mounting Method
Rough Bore
Number of Teeth
35
Pressure Angle
14.5
Direction
Not Applicable
Bushing Size if bushed
No Bushing
Minimum Plain Bore
Yes
Max Bore
2.375
Gear Style
Spur Gear
Material
Steel
Hardened Teeth
No
Inch - Metric
Inch
Other Features
Type 2 | Minimum Bore 1-3/16
Category - BDI
Spur and Helical Gears
Harmonized Tariff Code
8483.40.90.00
Noun
Gear
Keyword String
Spur
Manufacturer URL
https://www.regalbeloit.com
Manufacturer Internal Number
1212992
Long Description
Spur Gear; 7" Pitch Diameter; 5 DP; 1-3/4" Face Width; Rough Bore; 35 Teeth; 14.5 Pressure Angle; No Bushing; Minimum Plain Bore; 2.375" Max Bore; 3-3/8" Hub Diameter; Steel; No Hardened Teeth
Bore
0 Inch | 0 Millimeter
Pitch Diameter
7 Inch | 177.8 Millimeter
Face Width
1.75 Inch | 44.45 Millimeter
Hub Diameter
3.375 Inch | 85.725 Millimeter
