320820 Spur and Helical Gears

BROWNING BROWNING

NSS1626

Description

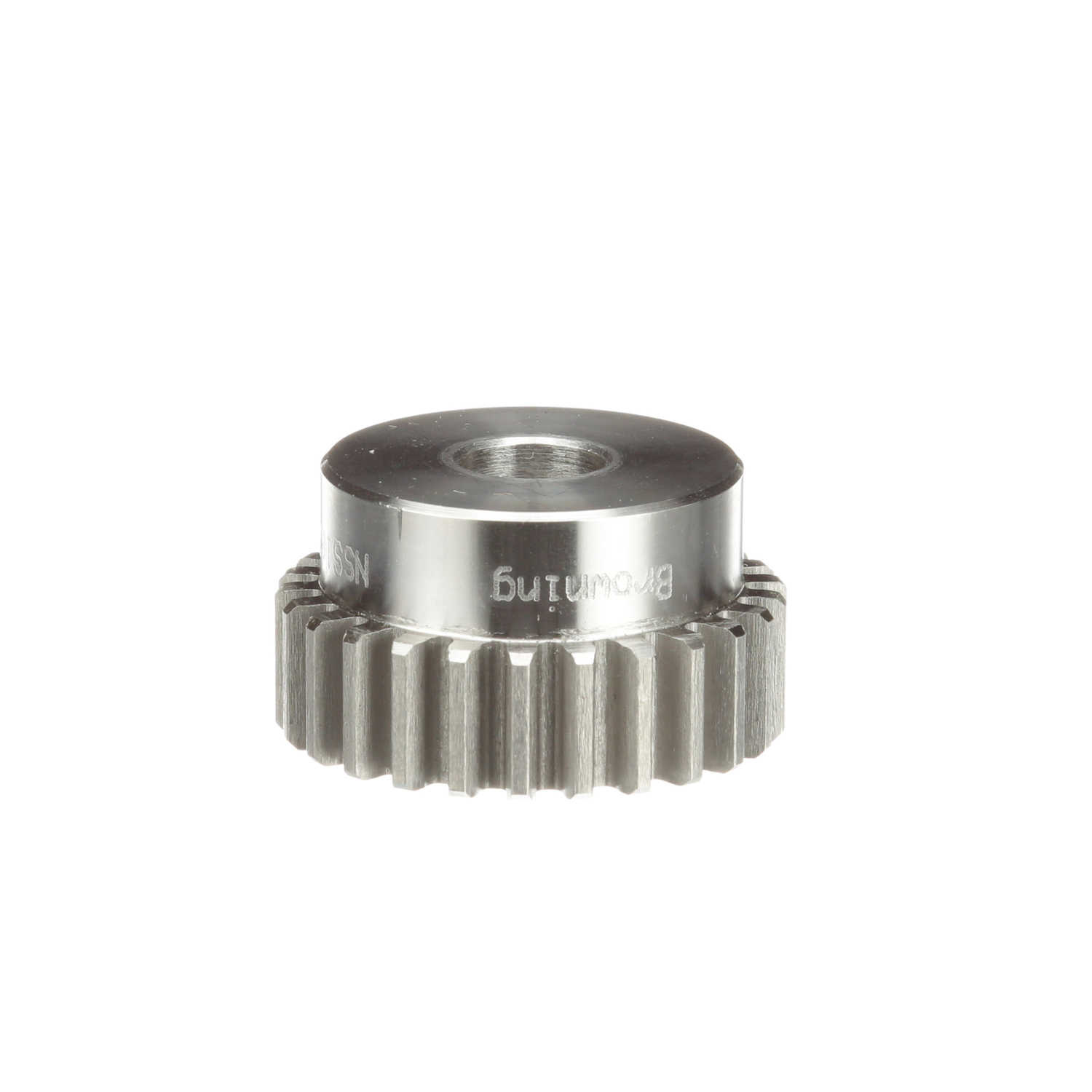

NSS1626 SPUR GEAR

Spur Gear; 1-5/8" Pitch Diameter; 16 DP; 1/2" Face Width; Rough Bore; 26 Teeth; 14.5 Pressure Angle; No Bushing; Minimum Plain Bore; 0.75" Max Bore; 1-7/16" Hub Diameter; Steel; No Hardened Teeth

Part #

NSS1626

BDI #
320820

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Spur and Helical Gears
Brand
BROWNING
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
Weight / Kilogram
0.14
EAN
0662289222308
Product Group - BDI
M02182
Pitch
16 DP
Mounting Method
Rough Bore
Number of Teeth
26
Pressure Angle
14.5
Direction
Not Applicable
Bushing Size if bushed
No Bushing
Minimum Plain Bore
Yes
Max Bore
0.75
Gear Style
Spur Gear
Material
Steel
Hardened Teeth
No
Inch - Metric
Inch
Other Features
Type 2 | Minimum Bore 1/2
Category - BDI
Spur and Helical Gears
Harmonized Tariff Code
8483.40.90.00
Noun
Gear
Keyword String
Spur
Manufacturer URL
https://www.regalbeloit.com
Manufacturer Internal Number
1211085
Long Description
Spur Gear; 1-5/8" Pitch Diameter; 16 DP; 1/2" Face Width; Rough Bore; 26 Teeth; 14.5 Pressure Angle; No Bushing; Minimum Plain Bore; 0.75" Max Bore; 1-7/16" Hub Diameter; Steel; No Hardened Teeth
Bore
0 Inch | 0 Millimeter
Hub Diameter
1.438 Inch | 36.525 Millimeter
Pitch Diameter
1.625 Inch | 41.275 Millimeter
Face Width
0.5 Inch | 12.7 Millimeter
