321125 Miter and Bevel Gears

BROWNING BROWNING

YSBS14F16LH-20X1/2

Description

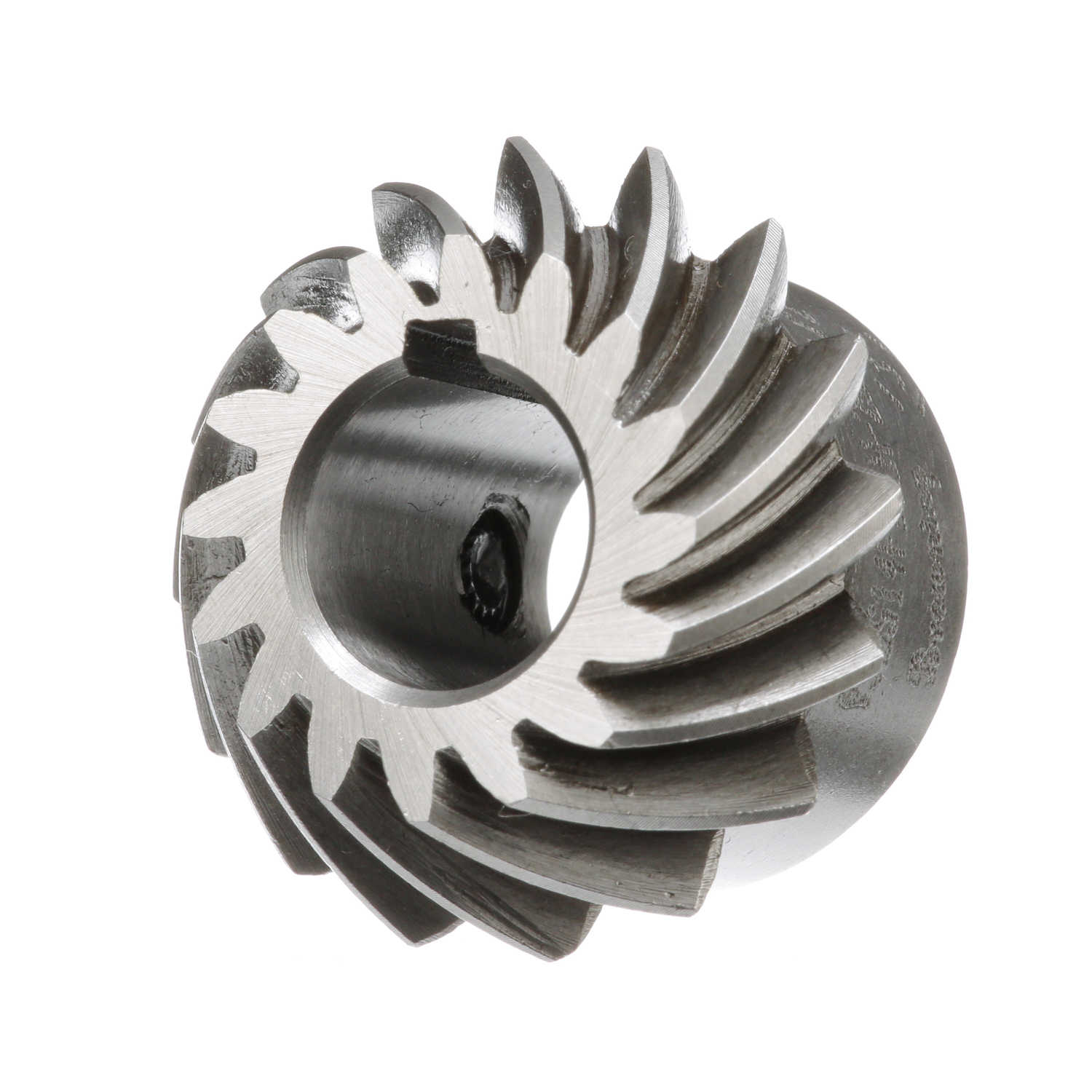

YSBS14F16LH-20X1/2 BEVEL GEAR

Spiral Bevel Gear; 1/5" Bore; 1.143" Pitch Dia; 14 DP; 0.38" Face Width; Finished Bore; 16 Teeth; 20 Degree Pressure Angle; No Bushing; No Minimum Plain Bore; 1" Hub Dia; Spiral Tooth; Steel

Part #

YSBS14F16LH-20X1/2

BDI #
321125

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Miter and Bevel Gears
Brand
BROWNING
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
UNSPSC
31171708
Weight / Kilogram
0.09
EAN
0662289305445
Product Group - BDI
M02182
Pitch
14 DP
Mounting Method
Finished Bore
Number of Teeth
16
Pressure Angle
20 Degree
Bushing Size if bushed
No Bushing
Minimum Plain Bore
No
Max Bore
0
Gear Style
Spiral Bevel Gear
Tooth Profile
Spiral Tooth
Spiral Angle
35 Degree
Material
Steel
Direction
Left Hand
Hardened Teeth
Yes
Inch - Metric
Inch
Other Features
Hardened Overall | Bevel Pinion | 2:1 Ratio | With Keyway and Set Screw
Manufacturer URL
https://www.regalbeloit.com
Manufacturer Internal Number
1228709
Long Description
Spiral Bevel Gear; 1/5" Bore; 1.143" Pitch Dia; 14 DP; 0.38" Face Width; Finished Bore; 16 Teeth; 20 Degree Pressure Angle; No Bushing; No Minimum Plain Bore; 1" Hub Dia; Spiral Tooth; Steel
Pitch Diameter
1.143 Inch | 29.032 Millimeter
Hub Diameter
1 Inch | 25.4 Millimeter
Bore
0.5 Inch | 12.7 Millimeter
Face Width
0.38 Inch | 9.652 Millimeter
