Back to search results

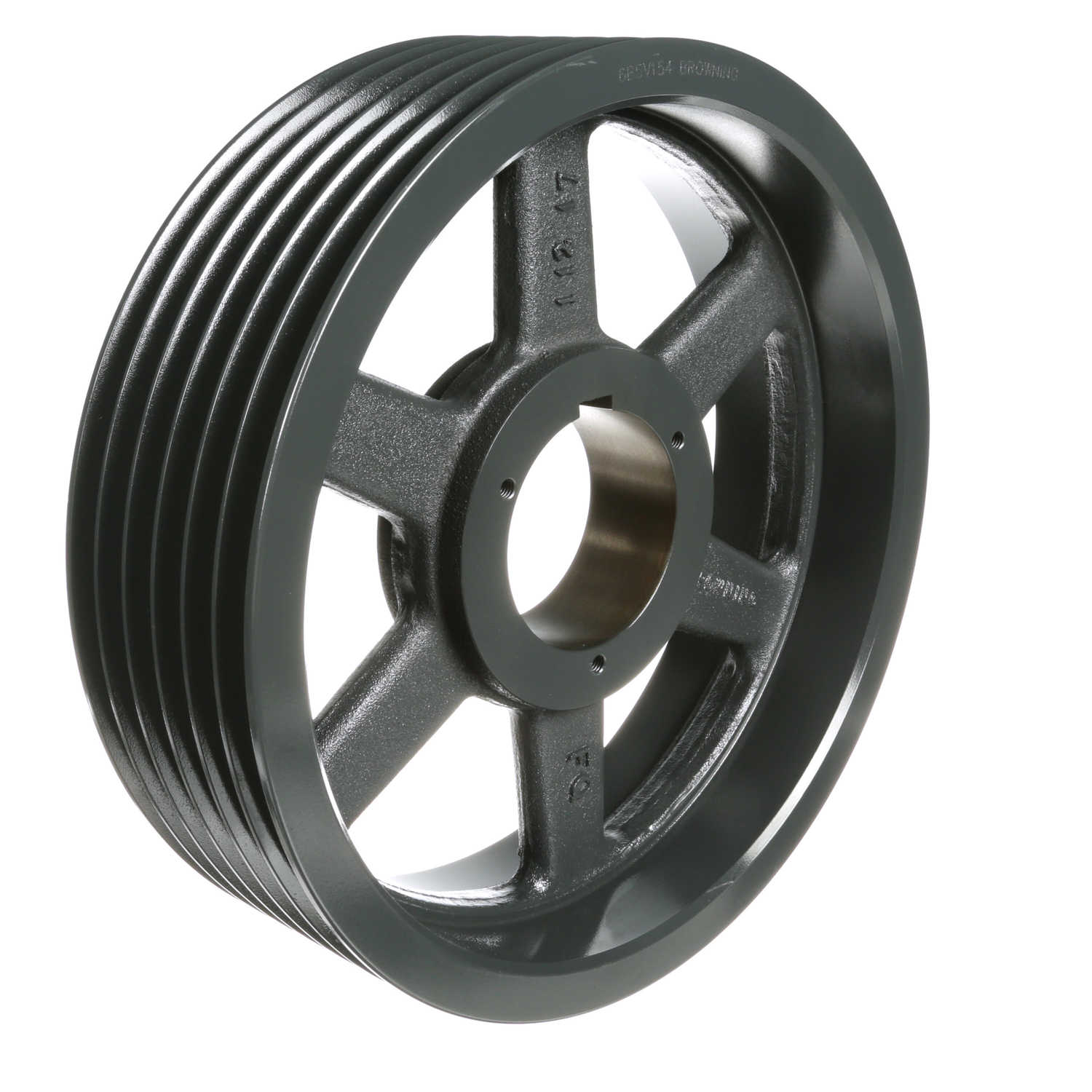

329073 Sheaves - Fixed Pitch

BROWNING BROWNING

6B5V154

Description

6B5V154 SHEAVE ; 6GROOVE 15.68"OD

6 Grooves; 15.68" Outside Diameter; Bushed; R1 Bushing Series; A | B | 5V Belt Series; 15" Pitch Minimum; 15-1/2" Pitch Maximum; 1-1/8 To 3-3/4" Bushing Bore Range; Keyway

Part #

1969518

BDI #
329073

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

783.2429 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 783.24 / each
$ 1,490.59 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Sheaves - Fixed Pitch
Brand
BROWNING
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
Weight / Kilogram
27.4
EAN
0662460344607
Product Group - BDI
M02350
Number of Grooves
6
Mounting Method
Bushed
Bushing Size
R1
Belt Series
A | B | 5V
Keyway Yes/No
Yes
Minimum Plain Bore
No
Other Features
Split Taper Bushing | Arm Style | Type 6
Inch - Metric
Inch
Category - BDI
Sheave - Fixed Pitch
Harmonized Tariff Code
8483.50.90.40
Noun
Pulley
Keyword String
Transmission
Manufacturer URL
https://www.regalbeloit.com
Manufacturer Item Number
6B5V154
Manufacturer Internal Number
1969518
Weight / LBS
60.36
Long Description
6 Grooves; 15.68" Outside Diameter; Bushed; R1 Bushing Series; A | B | 5V Belt Series; 15" Pitch Minimum; 15-1/2" Pitch Maximum; 1-1/8 To 3-3/4" Bushing Bore Range; Keyway
Outside Diameter
15.68 Inch | 398.272 Millimeter
Pitch Diameter Maximum
15.5 Inch | 393.7 Millimeter
Bore
0 Inch | 0 Millimeter
Pitch Diameter Minimum
15 Inch | 381 Millimeter
Bushing Bore Range
1-1/8 To 3-3/4 Inch | 28.575 To 95.25 Millimeter
