329024 Sheaves - Fixed Pitch

BROWNING BROWNING

4B5V46

Description

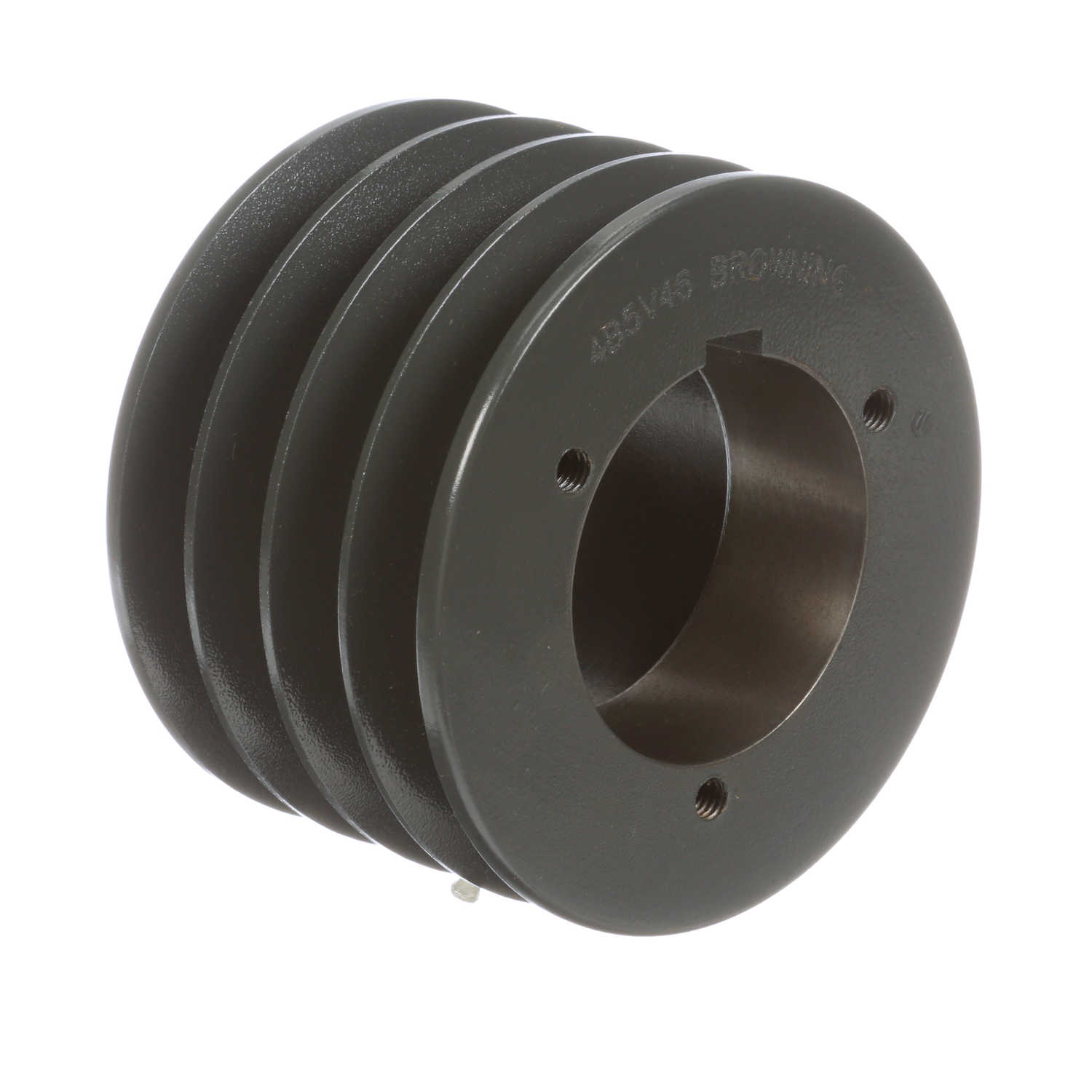

4B5V46 SHEAVE ; 4GROOVE 4.88"OD

Transmission Pulley; 4 Grooves; 4.88" Outside Diameter; Bushed; B Bushing Series; A | B | 5V Belt Series; 4.2" Pitch Minimum; 4.7" Pitch Maximum; 1/2 To 2-7/16" Bushing Bore Range; Keyway

Part #

3694445

BDI #
329024

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

163.9657 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 163.97 / each
$ 312.04 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Sheaves - Fixed Pitch
Brand
BROWNING
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
Weight / Kilogram
2.633
EAN
0662289037346
Product Group - BDI
M02350
Number of Grooves
4
Mounting Method
Bushed
Bushing Size
B
Belt Series
A | B | 5V
Keyway Yes/No
Yes
Minimum Plain Bore
No
Other Features
Split Taper Bushing | Type 5
Inch - Metric
Inch
Category - BDI
Sheave - Fixed Pitch
Harmonized Tariff Code
8483.50.90.40
Noun
Pulley
Keyword String
Transmission
Manufacturer URL
https://www.regalbeloit.com
Manufacturer Item Number
4B5V46
Manufacturer Internal Number
3694445
Weight / LBS
6.1
Long Description
Transmission Pulley; 4 Grooves; 4.88" Outside Diameter; Bushed; B Bushing Series; A | B | 5V Belt Series; 4.2" Pitch Minimum; 4.7" Pitch Maximum; 1/2 To 2-7/16" Bushing Bore Range; Keyway
Bushing Bore Range
1/2 To 2-7/16 Inch | 12.7 To 61.913 Millimeter
Pitch Diameter Minimum
4.2 Inch | 106.68 Millimeter
Outside Diameter
4.88 Inch | 123.952 Millimeter
Bore
0 Inch | 0 Millimeter
Pitch Diameter Maximum
4.7 Inch | 119.38 Millimeter
