MEV 23 LLS NC https://www.bdiexpress.com/medias/INDMTWVALVEX-7001000900-300x300.jpg?context=bWFzdGVyfHJvb3R8NDkwM3xpbWFnZS9qcGVnfGFESTRMMmcyT1M4eE1ESXdPREV6TXpZeE1UVTFNQzlKVGtSTlZGZFdRVXhXUlZoZk56QXdNVEF3TURrd01GOHpNREI0TXpBd0xtcHdad3xjNjU2ZTczMTU2NWZjMjZhYTMyMjY2MThhOTUxOGJkYjEwZjdlNmIzMTYwMjA1ZmY5NDAxMzc4Y2IwMDRiMGRl
21518502 Hydraulic and Pneumatic Valves

METAL WORK PNEUMATIC METAL WORK PNEUMATIC

MEV 23 LLS NC

Description

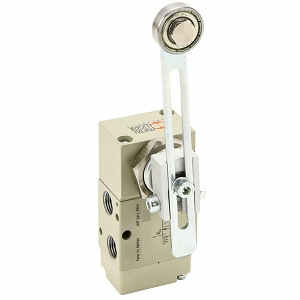

MEV 23 LLS NC ROLLER VALVE ; 1/8" PORT 3-WAY 2-POS MECHANICAL SPRING

Flow Control Valve; 1/8" G; 3 Port - 3 Way; 2 Position; Pneumatic; Frontal Roller Lever | Spring Return; 145 PSI; 14 To 140 Deg F

Part #

MEV 23 LLS NC

BDI #
21518502

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
METAL WORK PNEUMATIC
Manufacturer Name
METAL WORK PNEUMATIC
Minimum Buy Quantity
N/A
Weight / Kilogram
0.19
Product Group - BDI
F02352
Valve Type
Flow Control
Port Type
1/8" G
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Frontal Roller Lever | Spring Return
Voltage
Not Applicable
Media
Pneumatic
Maximum Pressure
145 PSI
Operating Pressure Range
-14.5 To 145 PSI
Operating Temperature Range
14 To 140 Deg F
Inch - Metric
Inch
Other Features
550 L/Min Flow Rate | Normally Closed
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.80
Noun
Valve
Keyword String
Flow Control
Manufacturer URL
https://metalwork.in
Manufacturer Internal Number
7001000900
Weight / LBS
0.417
Long Description
Flow Control Valve; 1/8" G; 3 Port - 3 Way; 2 Position; Pneumatic; Frontal Roller Lever | Spring Return; 145 PSI; 14 To 140 Deg F
Overall Height
1.26 Inch | 32 Millimeter
Overall Width
0.866 Inch | 22 Millimeter
Overall Length
2.067 Inch | 52.5 Millimeter
