Back to search results
324927 Pulleys - Synchronous

BROWNING BROWNING

19HB100

Description

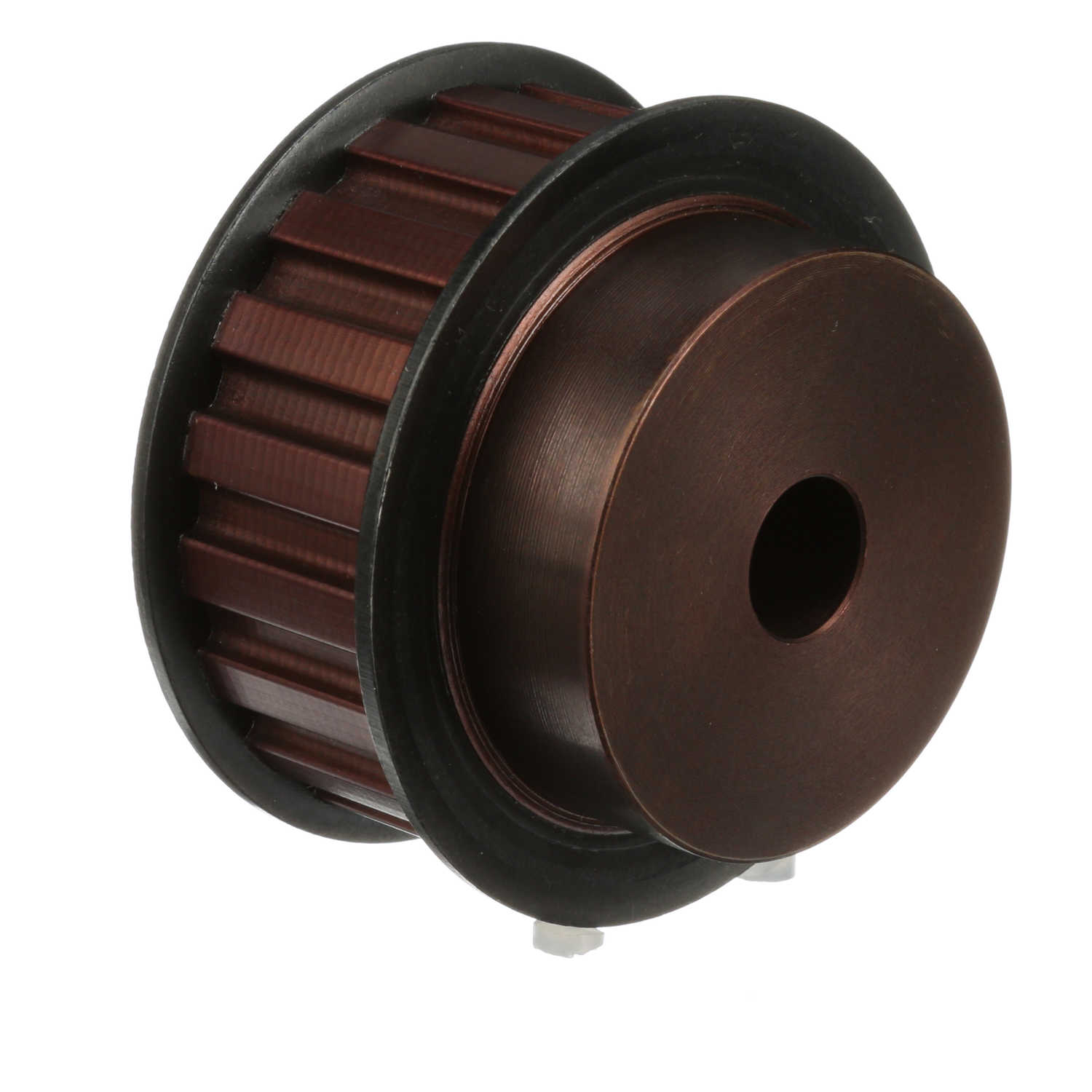

19HB100 TIMING PULLEY ; 1" WD 1/2"CH PIT H STYLE

Synchronous Pulley; 1" Belt Width; 1/2 Inch Belt Pitch; H Belt Style; 19 Teeth; 1-5/16" Face Width; Rough Bore; 3-3/8" Flange OD; 2.97" Outside Diameter; 3.024" Pitch Diameter; No Keyway; No Bushing; Minimum Plain Bore; 1.5" Max Bore

Part #

19HB100

BDI #
324927

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Pulleys - Synchronous
Brand
BROWNING
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
Weight / Kilogram
1.41
EAN
0662289314300
Product Group - BDI
M02316
Belt Pitch
1/2 Inch
Belt Style
H
Number of Teeth
19
Mounting Method
Rough Bore
Flanges
Yes
Keyway Yes/No
No
Bushing Size
No Bushing
Minimum Plain Bore
Yes
Max Bore
1.5
Other Features
Heavy | Type 2
Inch - Metric
Inch
Category - BDI
Pulley Synchronous
Harmonized Tariff Code
8483.50.90.80
Noun
Pulley
Keyword String
Synchronous
Manufacturer URL
https://www.regalbeloit.com
Manufacturer Internal Number
1055441
Long Description
Synchronous Pulley; 1" Belt Width; 1/2 Inch Belt Pitch; H Belt Style; 19 Teeth; 1-5/16" Face Width; Rough Bore; 3-3/8" Flange OD; 2.97" Outside Diameter; 3.024" Pitch Diameter; No Keyway; No Bushing; Minimum Plain Bore; 1.5" Max Bore
Bore
0 Inch | 0 Millimeter
Face Width
1.313 Inch | 33.35 Millimeter
Flange Outside Diameter
3.375 Inch | 85.725 Millimeter
Belt Width
1 Inch | 25.4 Millimeter
Pitch Diameter
3.024 Inch | 76.81 Millimeter
Outside Diameter
2.97 Inch | 75.438 Millimeter
