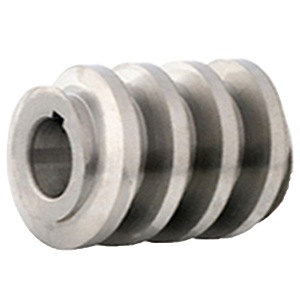

W12 1/2 2X 1/8X1/16 KWS https://www.bdiexpress.com/medias/INDM-GGEARXX-WRMS-FB-STL-300x300.jpg?context=bWFzdGVyfHJvb3R8MTQzMTZ8aW1hZ2UvanBlZ3xhR0ppTDJneFl5ODVPVFEzT1RRMU1EYzBOekU0TDBsT1JFMHRSMGRGUVZKWVdGOVhVazFUWDBaQ1gxTlVURjh6TURCNE16QXdMbXB3Wnd8M2YxY2JmZWRhNTZjZDY0NmQ1MTAwM2EwYTkwZmQ3OGM0ZWE0NWEzZGE3ZWE4NWY1ZDg5YTI5OGUwNWRmNTJmNg
Back to search results
21536838 Worms and Worm Gears

MARTIN SPROCKET & GR MARTIN SPROCKET & GR

W12 1/2 2X 1/8X1/16 KWS

Description

W12 1/2 2X 1/8X1/16 KWS WORM GEAR

Worm Gear; 1/2" Bore; 1" Pitch Diameter; 12 DP; 1-1/8" Face Width; Finished Bore; Not Applicable Teeth; 14-1/2 Degree Pressure Angle; No Bushing; No Minimum Plain Bore; Steel; Right Hand; Single; No Hardened Teeth

Part #

W12 1/2 2X 1/8X1/16 KWS

BDI #
21536838

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Worms and Worm Gears
Brand
MARTIN SPROCKET & GR
Manufacturer Name
MARTIN SPROCKET & GEAR
Minimum Buy Quantity
N/A
Weight / Kilogram
0
Product Group - BDI
M02182
Pitch
12 DP
Mounting Method
Finished Bore
Number of Teeth
Not Applicable
Pressure Angle
14-1/2 Degree
Bushing Size if bushed
No Bushing
Minimum Plain Bore
No
Gear Style
Worm Only
Material
Steel
Direction
Right Hand
Thread
Single
Hardened Teeth
No
Inch - Metric
Inch
Other Features
4 Degree 46 Minute Helix Angle | Without Hub | 1/8" X 1/16" Keyway
Category - BDI
Worm and Worm Gears
Harmonized Tariff Code
8483.40.90.00
Noun
Gear
Keyword String
Worm
Manufacturer URL
http://www.martinsprocket.com
Weight / LBS
0.17
Long Description
Worm Gear; 1/2" Bore; 1" Pitch Diameter; 12 DP; 1-1/8" Face Width; Finished Bore; Not Applicable Teeth; 14-1/2 Degree Pressure Angle; No Bushing; No Minimum Plain Bore; Steel; Right Hand; Single; No Hardened Teeth
Face Width
1.125 Inch | 28.575 Millimeter
Pitch Diameter
1 Inch | 25.4 Millimeter
Bore
0.5 Inch | 12.7 Millimeter
