Back to search results
320700 Spur and Helical Gears

BROWNING BROWNING

NSS10F20X3/4

Description

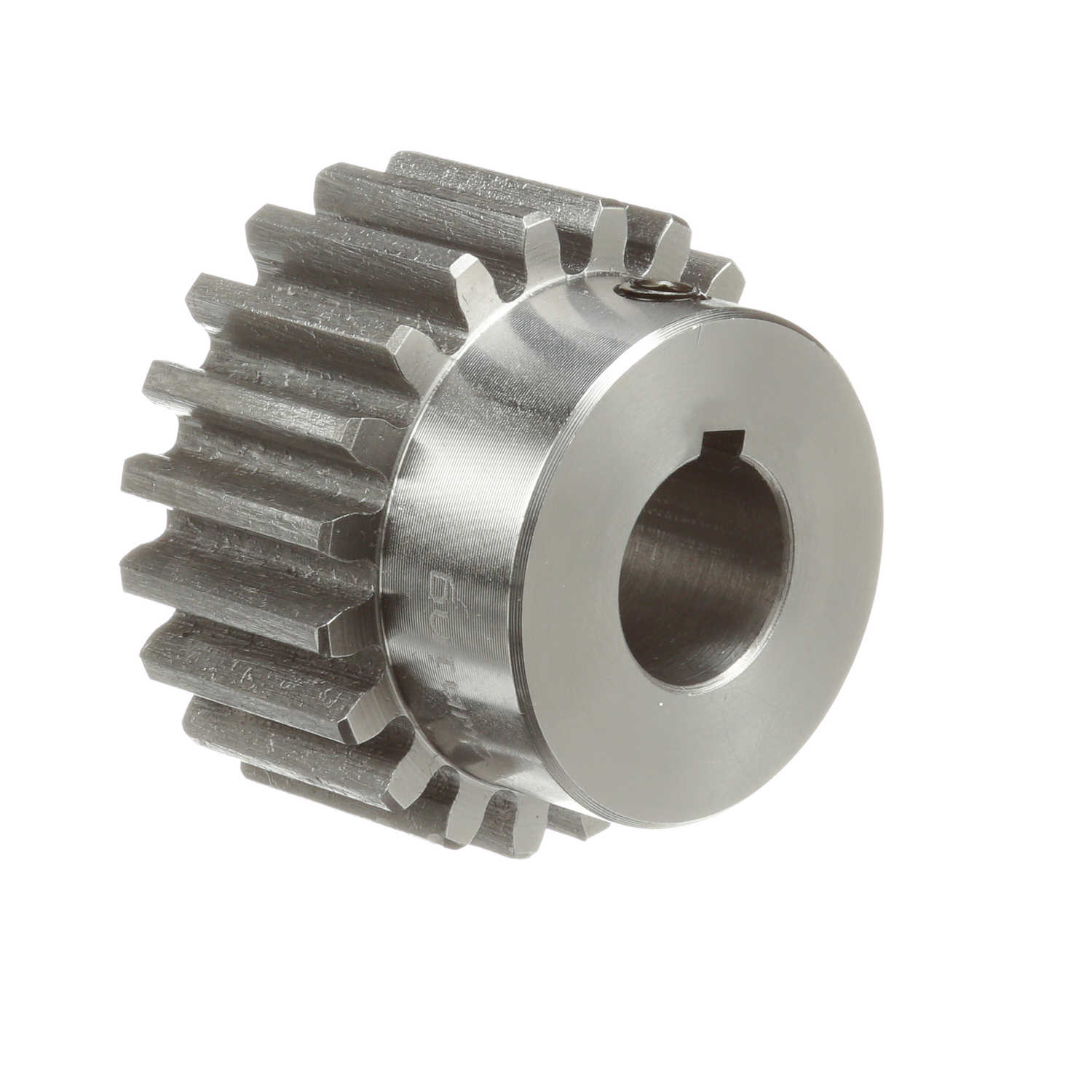

NSS10F20X3/4 SPUR GEAR ; FINISHED BORE 10 DP PITCH 20T

Spur Gear; 3/4" Bore; 2" Pitch Diameter; 10 DP; 1" Face Width; Finished Bore; 20 Teeth; 14.5 Pressure Angle; No Bushing; No Minimum Plain Bore; 1-23/32" Hub Diameter; Steel; No Hardened Teeth

Part #

NSS10F20X3/4

BDI #
320700

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Spur and Helical Gears
Brand
BROWNING
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
UNSPSC
31171707
Weight / Kilogram
0.41
EAN
0662289177431
Product Group - BDI
M02182
Pitch
10 DP
Mounting Method
Finished Bore
Number of Teeth
20
Pressure Angle
14.5
Direction
Not Applicable
Bushing Size if bushed
No Bushing
Minimum Plain Bore
No
Gear Style
Spur Gear
Material
Steel
Hardened Teeth
No
Inch - Metric
Inch
Other Features
Type 1 | With One Hollow Head Set Screw and Keyway
Category - BDI
Spur and Helical Gears
Harmonized Tariff Code
8483.40.90.00
Noun
Gear
Keyword String
Spur
Manufacturer URL
https://www.regalbeloit.com
Manufacturer Internal Number
1215748
Long Description
Spur Gear; 3/4" Bore; 2" Pitch Diameter; 10 DP; 1" Face Width; Finished Bore; 20 Teeth; 14.5 Pressure Angle; No Bushing; No Minimum Plain Bore; 1-23/32" Hub Diameter; Steel; No Hardened Teeth
Face Width
1 Inch | 25.4 Millimeter
Hub Diameter
1.719 Inch | 43.663 Millimeter
Pitch Diameter
2 Inch | 50.8 Millimeter
Bore
0.75 Inch | 19.05 Millimeter
