324908
Pulleys - Synchronous
BROWNING
BROWNING
18HH100
BROWNING BROWNING
Description

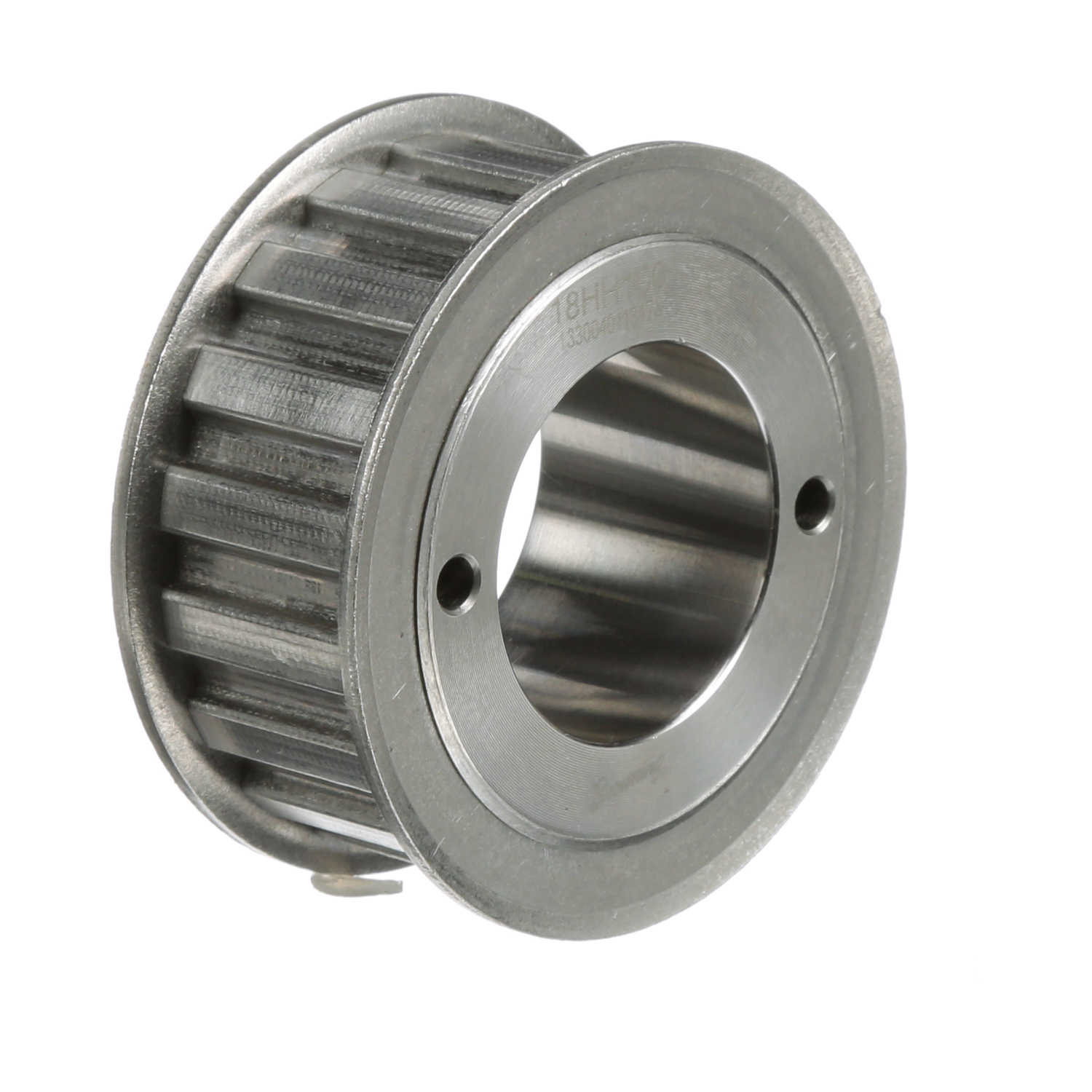

18HH100 TIMING PULLEY ; FOR 1" WD 1/2" PITCH BUSHED FOR H
Synchronous Pulley; 1" Belt Width; 1/2 Inch Belt Pitch; H Belt Style; 18 Teeth; 1-5/16" Face Width; Bushed; 3-1/8" Flange OD; 2.811" Outside Diameter; 2.865" Pitch Diameter; Keyway; 3/8 To 1-1/2" Bushing Bore Range; H Bushing; No Minimum Plain Bore
Part #
18HH100
BDI #
324908
Details
2099-12-31
http://schema.org/NewCondition
https://schema.org/LimitedAvailability
https://www.bdiexpress.com/in/en/Mechanical-Power-Transmission/Belt-Drives/Sheaves-and-Pulleys/Pulleys---Synchronous/18HH100/p/324908
Your Price
Request A Price
BDIExpress
|
Specifications
Category
Minimum Buy Quantity
N/A
Weight / Kilogram
0.64
EAN
0662289193714
Product Group - BDI
M02316
Belt Pitch
1/2 Inch
Belt Style
H
Number of Teeth
18
Mounting Method
Bushed
Flanges
Yes
Keyway Yes/No
Yes
Bushing Size
H
Minimum Plain Bore
No
Other Features
Bushing Not Included | Heavy | Split Taper Bushing | Type 4
Inch - Metric
Inch
Category - BDI
Pulley Synchronous
Harmonized Tariff Code
8483.50.90.80
Noun
Pulley
Keyword String
Synchronous
Manufacturer URL
https://www.regalbeloit.com
Manufacturer Internal Number
1056829
Long Description
Synchronous Pulley; 1" Belt Width; 1/2 Inch Belt Pitch; H Belt Style; 18 Teeth; 1-5/16" Face Width; Bushed; 3-1/8" Flange OD; 2.811" Outside Diameter; 2.865" Pitch Diameter; Keyway; 3/8 To 1-1/2" Bushing Bore Range; H Bushing; No Minimum Plain Bore
Bushing Bore Range
3/8 To 1-1/2 Inch | 9.525 To 38.1 Millimeter
Outside Diameter
2.811 Inch | 71.399 Millimeter
Face Width
1.313 Inch | 33.35 Millimeter
Pitch Diameter
2.865 Inch | 72.771 Millimeter
Bore
0 Inch | 0 Millimeter
Flange Outside Diameter
3.125 Inch | 79.375 Millimeter
Belt Width
1 Inch | 25.4 Millimeter
