VQZ115K-6M1-C4-PR https://www.bdiexpress.com/medias/INDSMCVALVEX-VQZ115-M-C4-PR-300x300.jpg?context=bWFzdGVyfHJvb3R8MjYwMzl8aW1hZ2UvanBlZ3xhRGsyTDJnd1lpOHhNREF5TVRNMU56YzRNVEF5TWk5SlRrUlRUVU5XUVV4V1JWaGZWbEZhTVRFMVgwMWZRelJmVUZKZk16QXdlRE13TUM1cWNHY3xkNTg3ZDkzMjA1NTM3NmRlZTRjOTZkMTJkZDYyZTc1NWJhYTNjMGNhODJjNzYxODFiZmZlZmNiZmQwZmI5Yjlh
Back to search results
17878128 Hydraulic and Pneumatic Valves

SMC SMC

VQZ115K-6M1-C4-PR

Description

VQZ115K-6M1-C4-PR

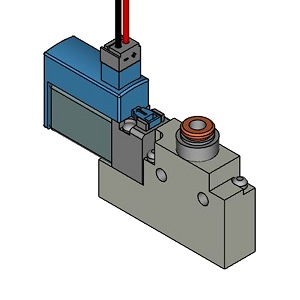

Poppet Valve; 4 MM Tubing OD Port; 3 Port | 3 Way; 2 Position; 12 VDC; Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; 145 PSI; 14 To 122 Deg F; Rubber Seal; Plastic

Part #

VQZ115K-6M1-C4-PR

BDI #
17878128

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
Weight / Kilogram
0.034
Product Group - BDI
F02352
Valve Type
Poppet | Solenoid
Port Type
4 MM Tubing OD
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
12 VDC
Media
Pneumatic
Maximum Pressure
145 PSI
Operating Pressure Range
22 To 145 PSI
Operating Temperature Range
14 To 122 Deg F
Seal Type
Rubber
Body Material
Plastic
Inch - Metric
Metric
Other Features
0.17 - 0.14 Cv Factor | Body Ported | M Plug Connector With Light/Surge Voltage Suppressor | High Speed Response | Non Locking Style
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Poppet Solenoid
Manufacturer URL
https://www.smcpneumatics.com
Weight / LBS
0.05291
Long Description
Poppet Valve; 4 MM Tubing OD Port; 3 Port | 3 Way; 2 Position; 12 VDC; Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; 145 PSI; 14 To 122 Deg F; Rubber Seal; Plastic
Overall Width
0.394 Inch | 10 Millimeter
Overall Length
2.118 Inch | 53.8 Millimeter
Overall Height
1.563 Inch | 39.7 Millimeter
