22735949 Pulleys - Synchronous

B & B MANUFACTURING B & B MANUFACTURING

QD156H100

Description

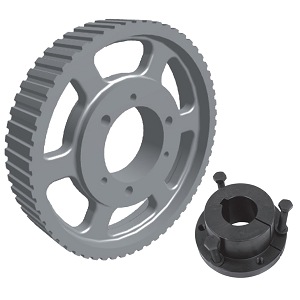

QD156H100 TIMING PULLEY ; 1/2" PIT 1" BELT W CI SF BUSHED 156T

Synchronous Pulley; 1" Belt Width; 1/2" Belt Pitch; H Style; 156 Teeth; 1.312" Face Width; Bushed; 24.774" Outside Diameter; 24-53/64" Pitch Diameter; Yes Keyway; 1/2 To 2-15/16" Bushing Bore Range; SF Bushing; No Minimum Plain Bore

Part #

QD156H100

BDI #
22735949

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Pulleys - Synchronous
Brand
B & B MANUFACTURING
Manufacturer Name
B & B MANUFACTURING
Minimum Buy Quantity
N/A
Weight / Kilogram
22.2
EAN
0195057628281
Product Group - BDI
M02316
Belt Pitch
1/2 Inch
Belt Style
H
Number of Teeth
156
Mounting Method
Bushed
Flanges
No
Keyway Yes/No
Yes
Bushing Size
SF
Minimum Plain Bore
No
Other Features
Bushing Not Included | Type D3 | Quick Disconnect Bushing | Cast Iron | Black Oxide Finish
Inch - Metric
Inch
Category - BDI
Pulley Synchronous
Harmonized Tariff Code
8483.50.90.80
Noun
Pulley
Keyword String
Synchronous
Manufacturer URL
https://www.bbman.com
Weight / LBS
49
Long Description
Synchronous Pulley; 1" Belt Width; 1/2" Belt Pitch; H Style; 156 Teeth; 1.312" Face Width; Bushed; 24.774" Outside Diameter; 24-53/64" Pitch Diameter; Yes Keyway; 1/2 To 2-15/16" Bushing Bore Range; SF Bushing; No Minimum Plain Bore
Bore
0 Inch | 0 Millimeter
Bushing Bore Range
1/2 To 2-15/16 Inch | 28 To 65 Millimeter
Outside Diameter
24.774 Inch | 629.26 Millimeter
Pitch Diameter
24.828 Inch | 630.631 Millimeter
Face Width
1.312 Inch | 33.325 Millimeter
Belt Width
1 Inch | 25.4 Millimeter
