CJ 24A PM 19MM KW https://www.bdiexpress.com/medias/INDL-JHUBXXX-FB-SCRW-IRN-KW-A-300x300.jpg?context=bWFzdGVyfHJvb3R8MjQ2MTB8aW1hZ2UvanBlZ3xhRGszTDJnNVppOHhNREE1T0RZeE5qZzVNelEzTUM5SlRrUk1MVXBJVlVKWVdGaGZSa0pmVTBOU1YxOUpVazVmUzFkZlFWOHpNREI0TXpBd0xtcHdad3w1YTg3YmIxYzNhM2UzN2FjN2IwZDgyMjZhMTcwYmEyNTQ1YzA2ZDE4ZWI2NjBhZThjYTZlZWJlOWEyZmRiYzM5

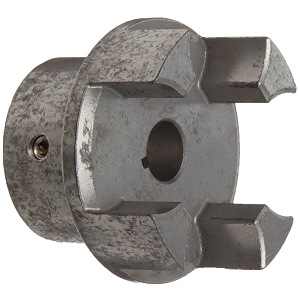

596881 Jaw Hub

LOVEJOY LOVEJOY

CJ 24A PM 19MM KW

Description

CJ 24A PM 19MM KW HUB

Jaw Coupling Hub; 19MM Bore; 39.878MM Hub Diameter; Jaw Coupling; Hub; Shaft; Finished Bore; Keyway; 29.972MM Length Thru Bore; 24/32 Size or Series; Set Screw; Iron; 10600RPM Maximum Speed; 310In-Lbs Torque

Part #

68514472542

BDI #
596881

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

Request A Price USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price Request A Price BDIExpress
QTY

Inventory

Total: 4

Category
Jaw Hub
Brand
LOVEJOY
Manufacturer Name
TIMKEN WWW.LOVEJOY-INC.COM
Minimum Buy Quantity
N/A
Weight / Kilogram
0.295
EAN
0685144725424
Product Group - BDI
M02304
Coupling Type
Jaw Coupling
Component
Hub
Hub Type
Shaft
Bore Profile
Finished Bore
Keyway Yes/No
Yes
Coupling Size or Series
24/32
Mounting Method
Set Screw
Bushing Size if bushed
No Bushing
Material
Iron
Maximum Speed RPM
10600
Torque
310In-Lbs
Inch - Metric
Metric
Other Features
Components May or May Not Intermix Among Brands | Curved Jaw | No Metal to Metal Contact | Elastomeric Spider
Category - BDI
Couplings Jaw Hub
Harmonized Tariff Code
8483.90.80.10
Noun
Hub
Keyword String
Coupling Jaw
Manufacturer URL
https://www.lovejoy-inc.com
Manufacturer Item Number
CJ 24A HUB PM 19MM KW
Manufacturer Internal Number
72542
Weight / LBS
0.65
Long Description
Jaw Coupling Hub; 19MM Bore; 39.878MM Hub Diameter; Jaw Coupling; Hub; Shaft; Finished Bore; Keyway; 29.972MM Length Thru Bore; 24/32 Size or Series; Set Screw; Iron; 10600RPM Maximum Speed; 310In-Lbs Torque
Length Thru Bore
1.18 Inch | 29.972 Millimeter
Outside Diameter
2.2 Inch | 55.88 Millimeter
Bore
0.748 Inch | 19 Millimeter
Hub Diameter
1.57 Inch | 39.878 Millimeter
