Back to search results
322272 Sheaves - Variable Speed

BROWNING BROWNING

3MVP35B49X 1 3/8

Description

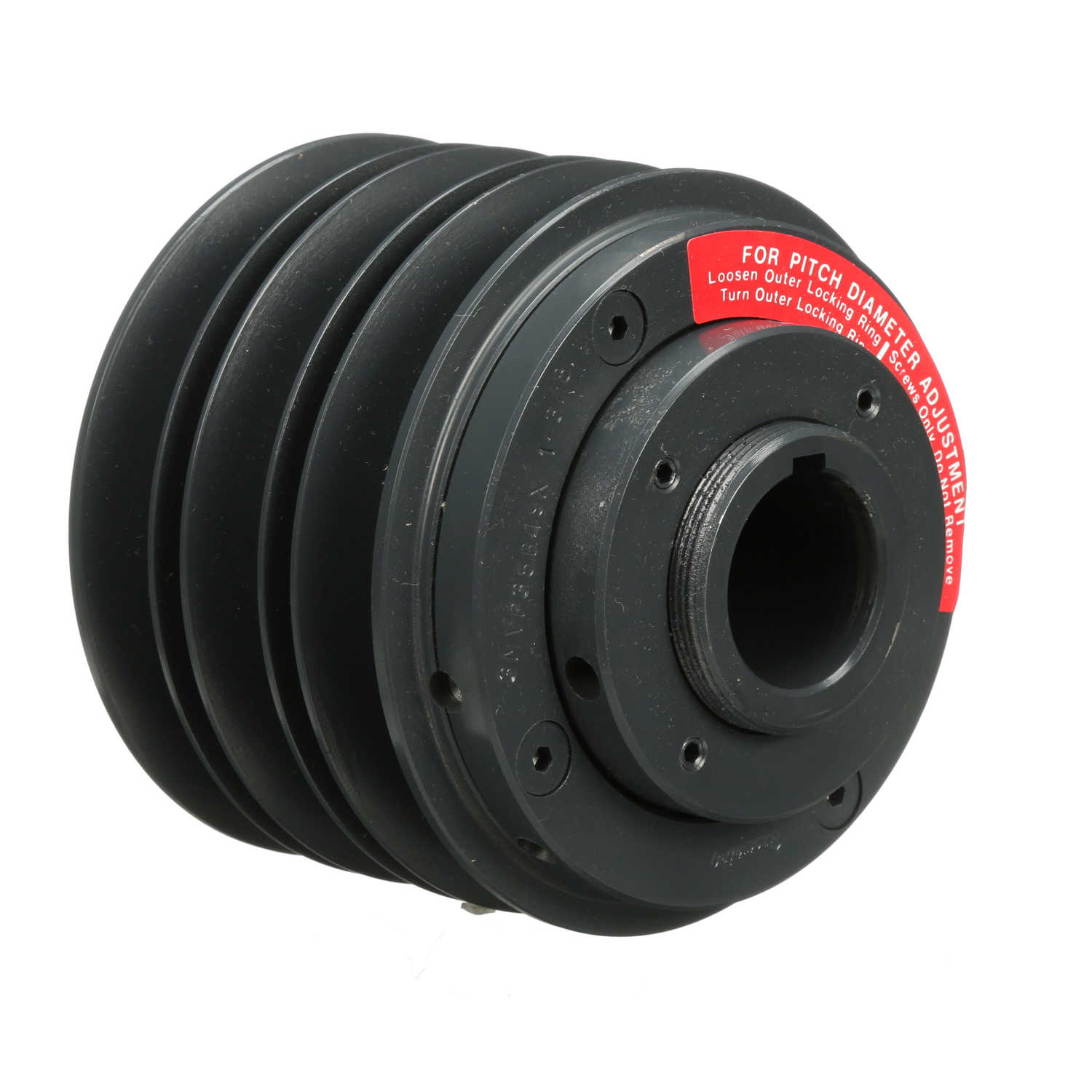

3MVP35B49X 1 3/8 VARIABLE PITCH SHEAVE ; 1-3/8" BORE 3 GROOVE 5.18" OD FB

Variable Speed Pulley; 1-3/8" Bore; 3 Grooves; 5.18" Outside Diameter; Finished Bore; No Bushing; A|B Belt Series; 3.4" Pitch Dia Min; 4.9" Pitch Dia Max; 3-1/16" Face Wid Min; 3-7/16" Face Wid Max; Keyway; Manual Turn Adjustment Method

Part #

3MVP35B49X 1 3/8

BDI #
322272

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Sheaves - Variable Speed
Brand
BROWNING
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
Weight / Kilogram
5.68
EAN
0662289164158
Product Group - BDI
M02354
Belt Series
A | B
Number of Grooves
3
Mounting Method
Finished Bore
Bushing Size
No Bushing
Keyway Yes/No
Yes
Adjustment Method
Manual Turn
Inch - Metric
Inch
Minimum Plain Bore
No
Category - BDI
Sheave - Variable Speed
Harmonized Tariff Code
8483.50.90.40
Noun
Pulley
Keyword String
Variable Speed
Manufacturer URL
https://www.regalbeloit.com
Manufacturer Item Number
3MVP35B49X 1 3/8
Manufacturer Internal Number
1019819
Weight / LBS
12.5
Long Description
Variable Speed Pulley; 1-3/8" Bore; 3 Grooves; 5.18" Outside Diameter; Finished Bore; No Bushing; A|B Belt Series; 3.4" Pitch Dia Min; 4.9" Pitch Dia Max; 3-1/16" Face Wid Min; 3-7/16" Face Wid Max; Keyway; Manual Turn Adjustment Method
Face Width Minimum
3.063 Inch | 77.8 Millimeter
Face Width Maximum
3.438 Inch | 87.325 Millimeter
Outside Diameter
5.18 Inch | 131.572 Millimeter
Belt Width Maximum
0.656 Inch | 16.662 Millimeter
Pitch Diameter Minimum
3.4 Inch | 86.36 Millimeter
Belt Width Minimum
0.5 Inch | 12.7 Millimeter
Pitch Diameter Maximum
4.9 Inch | 124.46 Millimeter
Bore
1.375 Inch | 34.925 Millimeter
