Back to search results
329094 Sheaves - Fixed Pitch

BROWNING BROWNING

6B5V80

Description

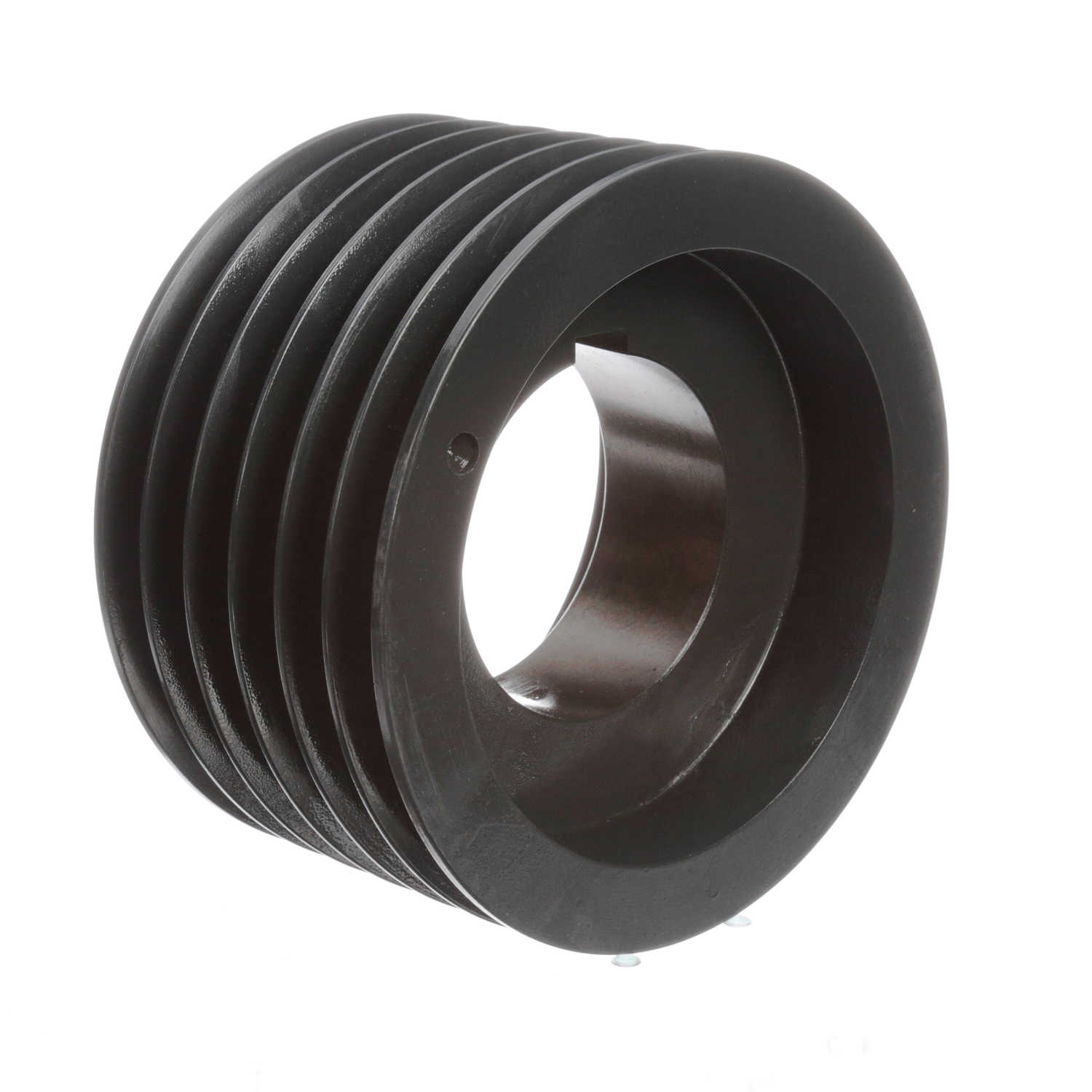

6B5V80 SHEAVE ; 6GROOVE 8.28"OD NON RETURNABLE

6 Grooves; 8.28" Outside Diameter; Bushed; R1 Bushing Series; A | B | 5V Belt Series; 7.6" Pitch Minimum; 8.1" Pitch Maximum; 1-1/8 To 3-3/4" Bushing Bore Range; Keyway

Part #

6B5V80

BDI #
329094

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Sheaves - Fixed Pitch
Brand
BROWNING
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
Weight / Kilogram
12.158
EAN
0662460344812
Product Group - BDI
M02350
Number of Grooves
6
Mounting Method
Bushed
Bushing Size
R1
Belt Series
A | B | 5V
Keyway Yes/No
Yes
Minimum Plain Bore
No
Other Features
Split Taper Bushing | Solid Style | Type 6
Inch - Metric
Inch
Category - BDI
Sheave - Fixed Pitch
Harmonized Tariff Code
8483.50.90.40
Noun
Pulley
Keyword String
Transmission
Manufacturer URL
https://www.regalbeloit.com
Manufacturer Item Number
6B5V80
Manufacturer Internal Number
1969443
Weight / LBS
32.55
Long Description
6 Grooves; 8.28" Outside Diameter; Bushed; R1 Bushing Series; A | B | 5V Belt Series; 7.6" Pitch Minimum; 8.1" Pitch Maximum; 1-1/8 To 3-3/4" Bushing Bore Range; Keyway
Pitch Diameter Maximum
8.1 Inch | 205.74 Millimeter
Bushing Bore Range
1-1/8 To 3-3/4 Inch | 28.575 To 95.25 Millimeter
Pitch Diameter Minimum
7.6 Inch | 193.04 Millimeter
Outside Diameter
8.28 Inch | 210.312 Millimeter
Bore
0 Inch | 0 Millimeter
