Back to search results
329092 Sheaves - Fixed Pitch

BROWNING BROWNING

6B5V70

Description

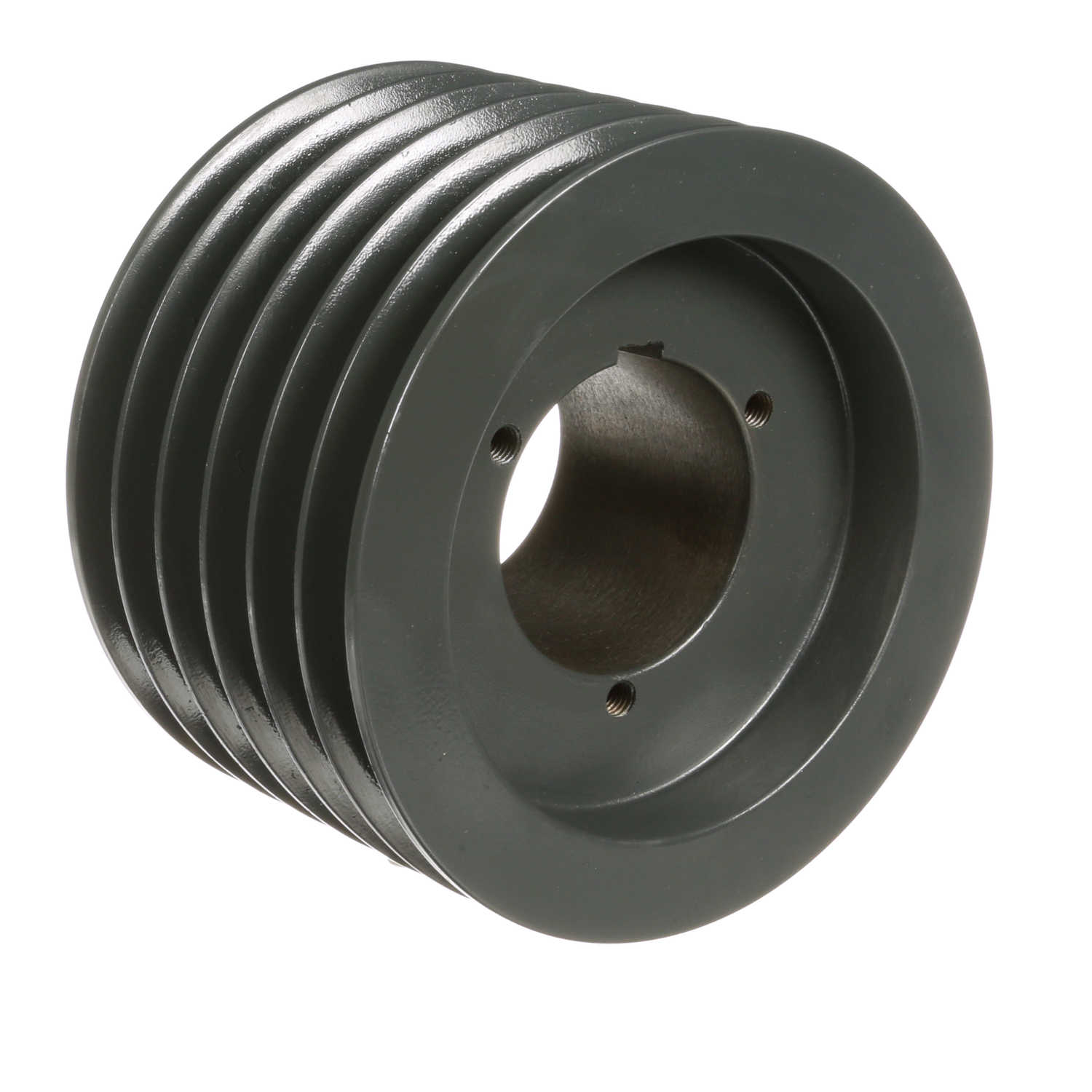

6B5V70 SHEAVE ; 6GROOVE 7.28"OD NON RETURNABLE

6 Grooves; 7.28" Outside Diameter; Bushed; Q2 Bushing Series; A | B | 5V Belt Series; 6.6" Pitch Minimum; 7.1" Pitch Maximum; 1 To 2-5/8" Bushing Bore Range; Keyway

Part #

6B5V70

BDI #
329092

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Sheaves - Fixed Pitch
Brand
BROWNING
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
Weight / Kilogram
10.45
EAN
0662460344799
Product Group - BDI
M02350
Number of Grooves
6
Mounting Method
Bushed
Bushing Size
Q2
Belt Series
A | B | 5V
Keyway Yes/No
Yes
Minimum Plain Bore
No
Other Features
Split Taper Bushing | Web Style | Type 6
Inch - Metric
Inch
Category - BDI
Sheave - Fixed Pitch
Harmonized Tariff Code
8483.50.90.40
Noun
Pulley
Keyword String
Transmission
Manufacturer URL
https://www.regalbeloit.com
Manufacturer Item Number
6B5V70
Manufacturer Internal Number
1969427
Weight / LBS
23.01
Long Description
6 Grooves; 7.28" Outside Diameter; Bushed; Q2 Bushing Series; A | B | 5V Belt Series; 6.6" Pitch Minimum; 7.1" Pitch Maximum; 1 To 2-5/8" Bushing Bore Range; Keyway
Bushing Bore Range
1 To 2-5/8 Inch | 25.4 To 66.675 Millimeter
Pitch Diameter Minimum
6.6 Inch | 167.64 Millimeter
Outside Diameter
7.28 Inch | 184.912 Millimeter
Pitch Diameter Maximum
7.1 Inch | 180.34 Millimeter
Bore
0 Inch | 0 Millimeter
