Back to search results
329014 Sheaves - Fixed Pitch

BROWNING BROWNING

4B5V136

Description

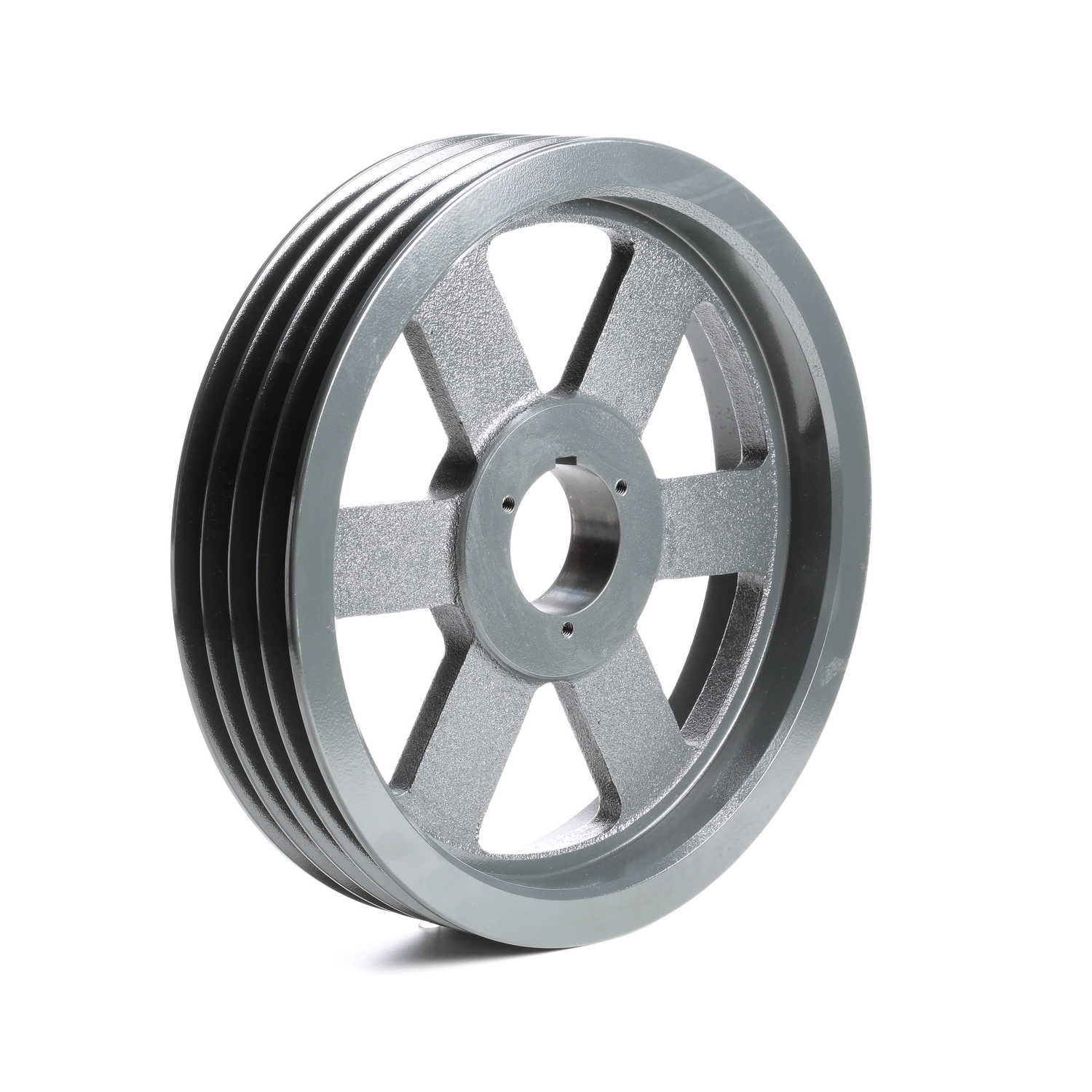

4B5V136 SHEAVE ; 4GROOVE 13.88"OD

Transmission Pulley; 4 Grooves; 13.88" Outside Diameter; Bushed; B Bushing Series; A | B | 5V Belt Series; 13.2" Pitch Minimum; 13.7" Pitch Maximum; 1/2 To 2-7/16" Bushing Bore Range; Keyway

Part #

4B5V136

BDI #
329014

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Sheaves - Fixed Pitch
Brand
BROWNING
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
Weight / Kilogram
16.185
EAN
0662289035335
Product Group - BDI
M02350
Number of Grooves
4
Mounting Method
Bushed
Bushing Size
B
Belt Series
A | B | 5V
Keyway Yes/No
Yes
Minimum Plain Bore
No
Other Features
Split Taper Bushing | Arm Style | Type 4
Inch - Metric
Inch
Category - BDI
Sheave - Fixed Pitch
Harmonized Tariff Code
8483.50.90.40
Noun
Pulley
Keyword String
Transmission
Manufacturer URL
https://www.regalbeloit.com
Manufacturer Item Number
4B5V136
Manufacturer Internal Number
3694643
Weight / LBS
30.7
Long Description
Transmission Pulley; 4 Grooves; 13.88" Outside Diameter; Bushed; B Bushing Series; A | B | 5V Belt Series; 13.2" Pitch Minimum; 13.7" Pitch Maximum; 1/2 To 2-7/16" Bushing Bore Range; Keyway
Bore
0 Inch | 0 Millimeter
Pitch Diameter Minimum
13.2 Inch | 335.28 Millimeter
Pitch Diameter Maximum
13.7 Inch | 347.98 Millimeter
Outside Diameter
13.88 Inch | 352.552 Millimeter
Bushing Bore Range
1/2 To 2-7/16 Inch | 12.7 To 61.913 Millimeter
