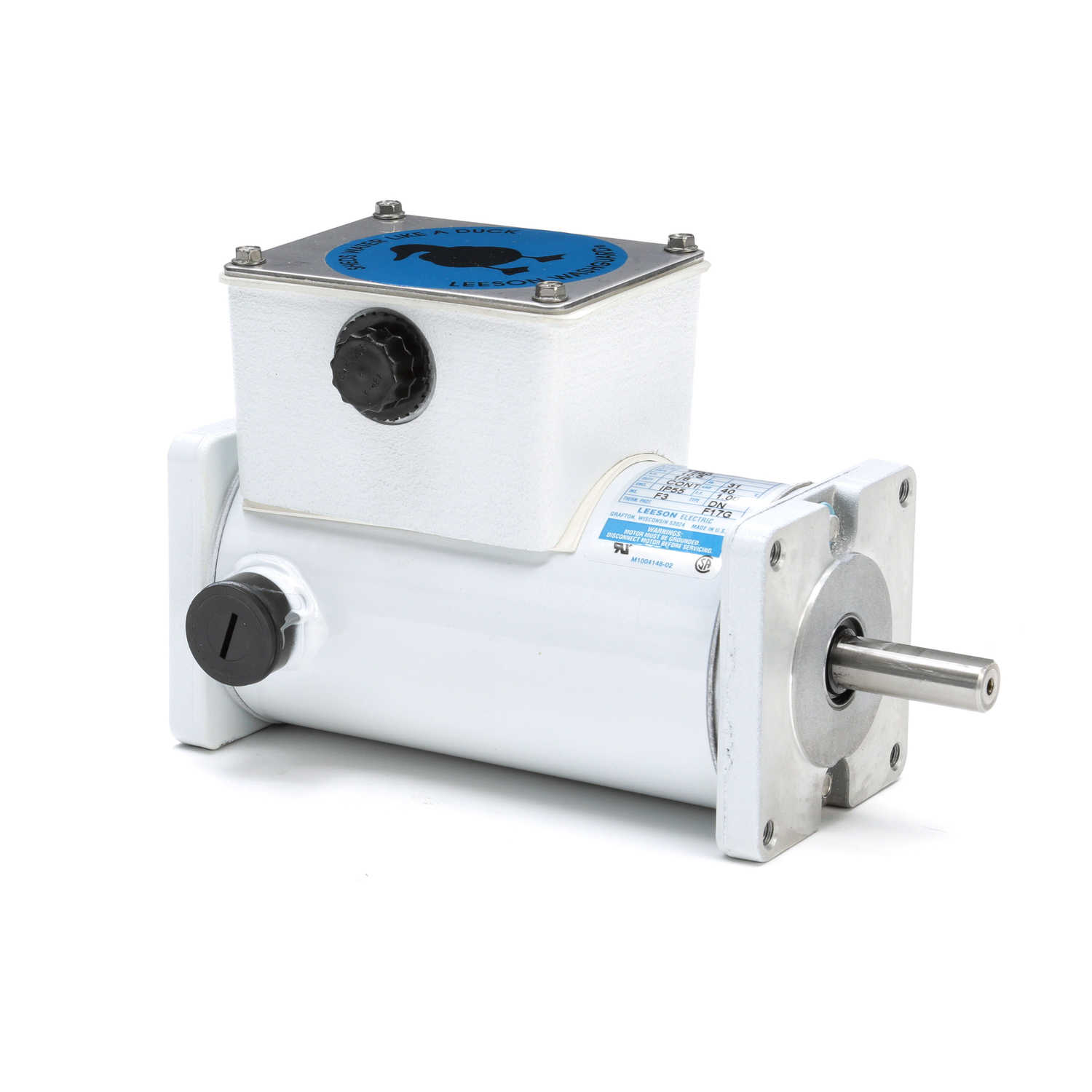

557393 DC Motors

LEESON LEESON

M1120182.00

Description

M1120182

Permanent Magnet; 1/8HP; 31 Frame Size; 1800 Sync RPM; 12 Voltage; DC; TENV and IP55 Enclosure; NEMA Frame Profile; Square Face Mounted; No Base; 1/2" Shaft Diameter; 9.57" Overall Length; 74.7 Efficiency Full Load

Part #

M1120182.00

BDI #
557393

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
DC Motors
Brand
LEESON
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
Weight / Kilogram
3.175
EAN
0691720346075
Product Group - BDI
M04104
Horse Power
1/8HP
Frame Size
31
Sync RPM
1800
Voltage
12
Current
DC
Enclosure
TENV | IP55
Frame Profile
NEMA
Mounting Method
Square Face
Base
No
Efficiency Full Load
74.7
Inch - Metric
Inch
Other Features
Current Rating 10.5 Ampere | Low Voltage
Category - BDI
DC Motor
Harmonized Tariff Code
8501.33.40.60
Noun
Motor
Keyword String
Direct Current Permanent Magnet
Manufacturer URL
https://www.regalbeloit.com
Manufacturer Item Number
M1120182.00
Manufacturer Internal Number
M1120182.00
Weight / LBS
7
Long Description
Permanent Magnet; 1/8HP; 31 Frame Size; 1800 Sync RPM; 12 Voltage; DC; TENV and IP55 Enclosure; NEMA Frame Profile; Square Face Mounted; No Base; 1/2" Shaft Diameter; 9.57" Overall Length; 74.7 Efficiency Full Load
Shaft Diameter
0.5 Inch | 12.7 Millimeter
Overall Length
9.57 Inch | 243.078 Millimeter
