554792 AC motors

LEESON LEESON

120922 OBSOLETE DO NOT USE 07/23

Description

LEESON 120922 OBSOLETE DO NOT USE 07/23

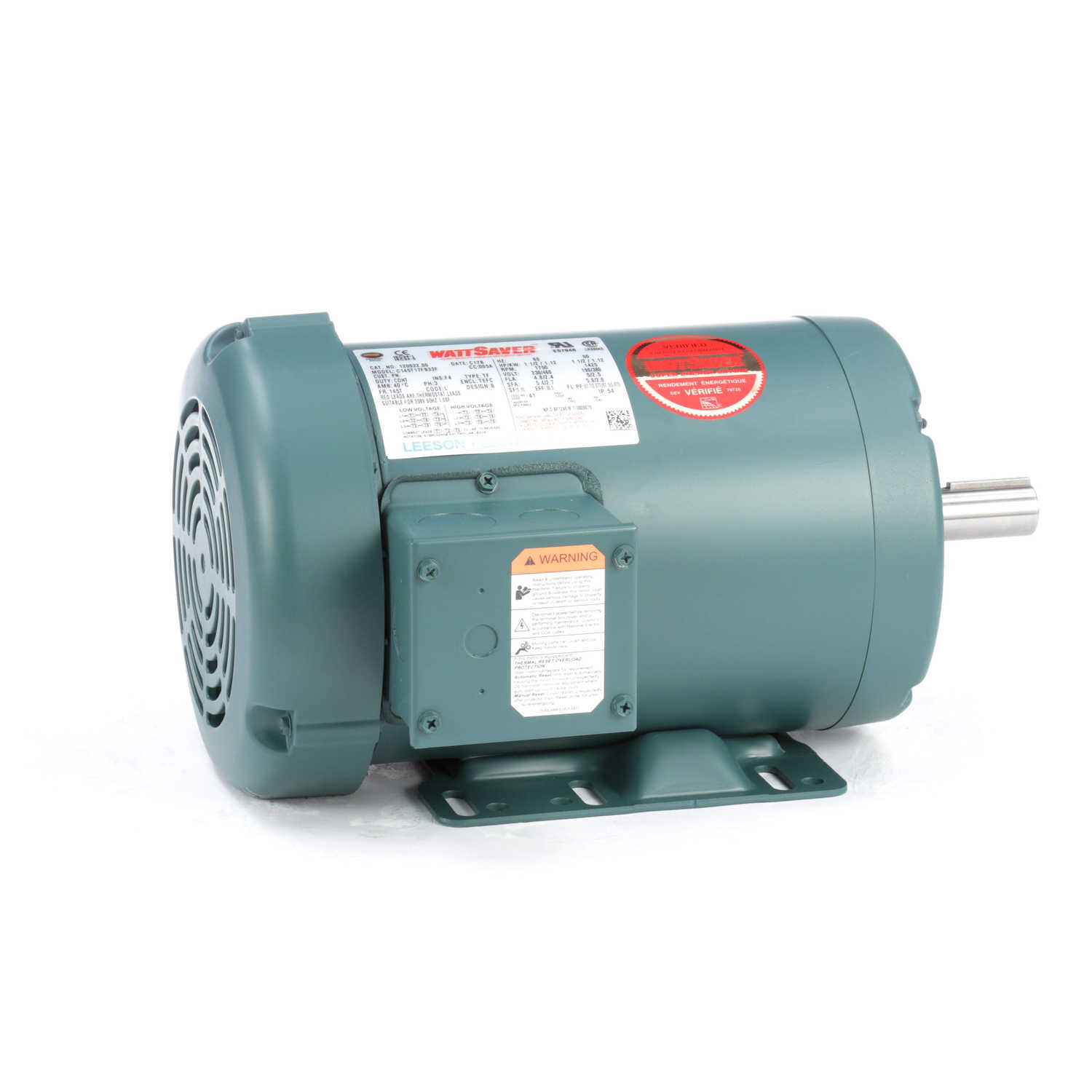

AC Motor; General Purpose; 1-1/2HP; 145T Frame Size; 1800 Sync RPM; 230/460 Voltage; AC; TEFC Enclosure; NEMA Frame Profile; Three Phase; 60 Hertz; Rigid; Base; 7/8" Shaft Diameter; 3-1/2" Base to Center of Shaft; 13.43" Overall Length; 86.5% Efficiency Full Load

Part #

120922 OBSOLETE DO NOT USE 07/23

BDI #
554792

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
AC motors
Brand
LEESON
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
Weight / Kilogram
20.43
EAN
0691720016237
Product Group - BDI
M04104
Konjska snaga
1-1/2HP
Veličina okvira
145T
Herc
60
Sinhroni o/min
1800
Napon
230/460
Struja
AC
Faza
Three Phase
Kućište
TEFC
Profil okvira
NEMA
Način montiranja
Rigid
Baza
Yes
Efikasnost punog opterećenja
86.5
Inčni - metrički
Inch
Ostale karakteristike
Current Rating 4.8/2.4 Ampere | 4 Poles
Kategorija - BDI
AC Motor
Harmonizovana carinska šifra
8501.51.60.40
Imenica
Motor
Niz ključnih reči
Alternating Current General Purpose
URL proizvođača
https://www.regalrexnord.com
Broj artikla proizvođača
120922.00
Interni broj proizvođača
120922.00
Težina / lbs
48
Duži opis
AC Motor; General Purpose; 1-1/2HP; 145T Frame Size; 1800 Sync RPM; 230/460 Voltage; AC; TEFC Enclosure; NEMA Frame Profile; Three Phase; 60 Hertz; Rigid; Base; 7/8" Shaft Diameter; 3-1/2" Base to Center of Shaft; 13.43" Overall Length; 86.5% Efficiency Full Load
Ukupna dužina
13.43 inč | 341.122 milimetar
Baza do ose vratila
3.5 inč | 88.9 Millimeter
Prečnik vratila
0.875 inč | 22.225 milimetar
