320602 Spur and Helical Gears

BROWNING BROWNING

NCS1075

Description

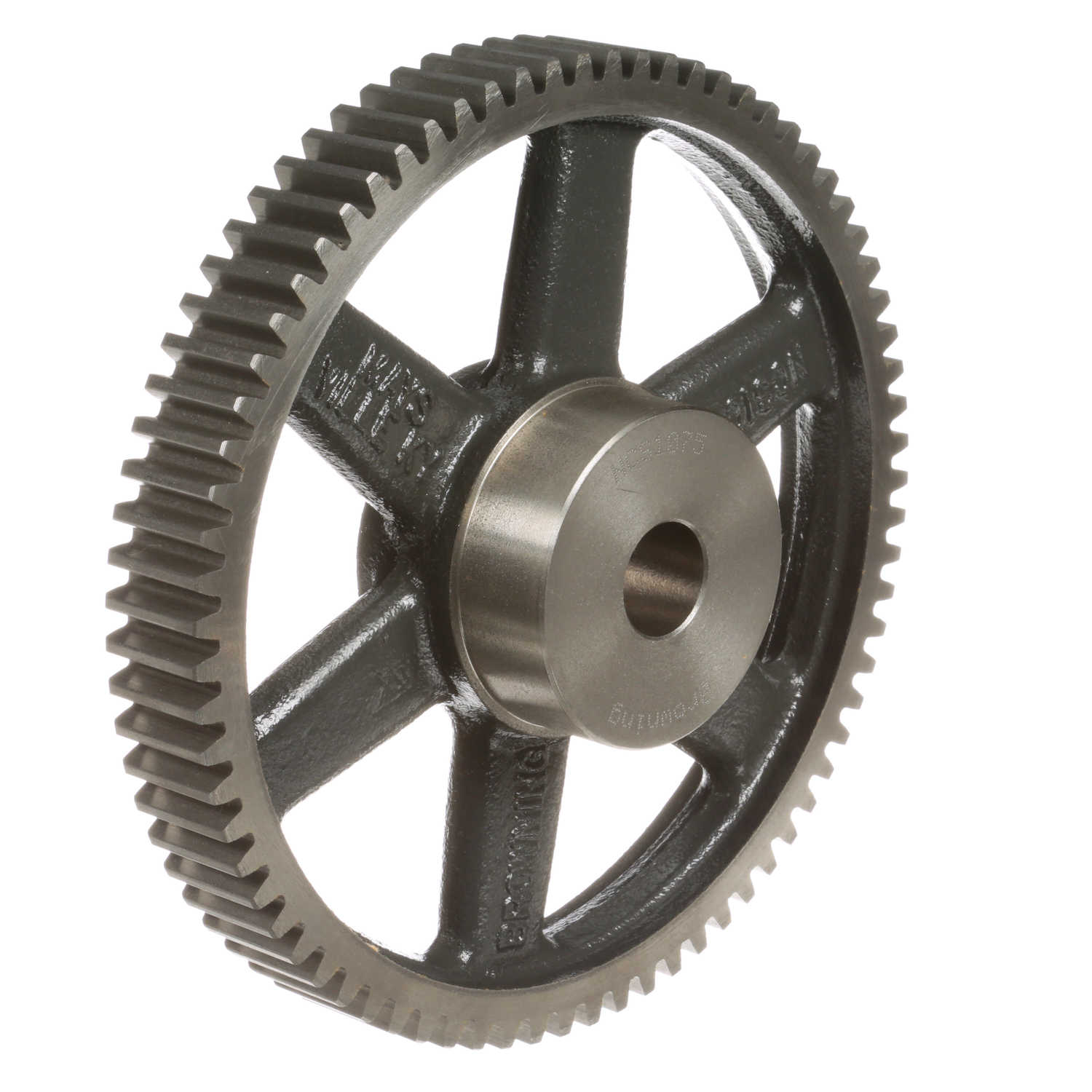

NCS1075 SPUR GEAR

Spur Gear; 7-1/2" Pitch Diameter; 10 DP; 1" Face Width; Rough Bore; 75 Teeth; 14.5 Pressure Angle; No Bushing; Minimum Plain Bore; 1.563" Max Bore; 2-5/8" Hub Diameter; Cast Iron; No Hardened Teeth

Part #

NCS1075

BDI #
320602

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Spur and Helical Gears
Brand
BROWNING
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
Weight / Kilogram
2.86
EAN
0662289303427
Product Group - BDI
M02182
Pitch
10 DP
Mounting Method
Rough Bore
Number of Teeth
75
Pressure Angle
14.5
Direction
Not Applicable
Bushing Size if bushed
No Bushing
Minimum Plain Bore
Yes
Max Bore
1.563
Gear Style
Spur Gear
Material
Cast Iron
Hardened Teeth
No
Inch - Metric
Inch
Other Features
Type 4 | Minimum Bore 7/8
Category - BDI
Spur and Helical Gears
Harmonized Tariff Code
8483.40.90.00
Noun
Gear
Keyword String
Spur
Manufacturer URL
https://www.regalbeloit.com
Manufacturer Internal Number
1212133
Long Description
Spur Gear; 7-1/2" Pitch Diameter; 10 DP; 1" Face Width; Rough Bore; 75 Teeth; 14.5 Pressure Angle; No Bushing; Minimum Plain Bore; 1.563" Max Bore; 2-5/8" Hub Diameter; Cast Iron; No Hardened Teeth
Pitch Diameter
7.5 Inch | 190.5 Millimeter
Face Width
1 Inch | 25.4 Millimeter
Bore
0 Inch | 0 Millimeter
Hub Diameter
2.625 Inch | 66.675 Millimeter
