BT 1502-13 https://www.bdiexpress.com/medias/INDSKFBTUNTX-1502-2OTFL-300x300.jpg?context=bWFzdGVyfHJvb3R8MTAyNDN8aW1hZ2UvanBlZ3xhR1JrTDJnNE55OHhNREE1TlRrNU1USXlOak01T0M5SlRrUlRTMFpDVkZWT1ZGaGZNVFV3TWw4eVQxUkdURjh6TURCNE16QXdMbXB3Wnd8Zjc3NDQwMjI5NTg5Y2U5YWM0ZmQ3NGM2ZWJiMGQzMDEzMTZlM2NkNDU4ZjZhYTU2OGFhOTQxNWFlMzYyOTdjMA
Back to search results

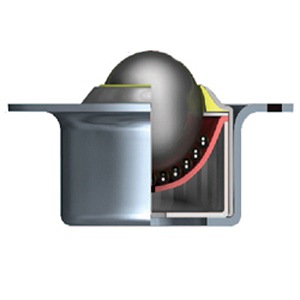

1299948 Ball Transfer Unit

SKF SKF

BT 1502-13

Description

BT 1502-13

Ball Transfer Unit; 2 Hole Top Flange; 25.4MM Ball Diameter; Steel Ball; Ball Up 220|Ball Down 110 Lbs Max Load; 68.1 MM Flange Size; 36.5MM Base to Ball Height; 42MM Housing Diameter; 30.5MM Housing Height; Steel Housing

Part #

BT 1502-13

BDI #
1299948

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Ball Transfer Unit
Brand
SKF
Manufacturer Name
SKF
Minimum Buy Quantity
N/A
Weight / Kilogram
0.195
EAN
7316578000629
Product Group - BDI
M00134
Product Name
Ball Transfer Unit
Fitting Type
2 Hole Top Flange
Ball Material
Steel
Maximum Load
Ball Up 220 | Ball Down 110 Lbs
Flange Size if applicable
68.1 MM
Housing Material
Steel
Bolt Size
5.1 Millimeter
Other Features
High Capacity | Low Profile | Dirt Exit Hole | Knife Edge Seal | Zinc Plated Housing
Inch - Metric
Metric
Long Description
Ball Transfer Unit; 2 Hole Top Flange; 25.4MM Ball Diameter; Steel Ball; Ball Up 220|Ball Down 110 Lbs Max Load; 68.1 MM Flange Size; 36.5MM Base to Ball Height; 42MM Housing Diameter; 30.5MM Housing Height; Steel Housing
Ball Outside Diameter
1 Inch | 25.4 Millimeter
Housing Height
1.201 Inch | 30.5 Millimeter
Stud Thread Length
0 Inch | 0 Millimeter
Housing Diameter
1.654 Inch | 42 Millimeter
Overall Height
1.437 Inch | 36.5 Millimeter
Base to Ball Height
1.437 Inch | 36.5 Millimeter
Stud Height if applicable
0 Inch | 0 Millimeter
