CDP3603 https://www.bdiexpress.com/medias/MFRBECMOTORX-9PAA00000192473-300x300.jpg?context=bWFzdGVyfHJvb3R8NjA5MXxpbWFnZS9qcGVnfGFEVXdMMmcyWVM4eE1ERTVNVFkxTkRJMU5qWTNNQzlOUmxKQ1JVTk5UMVJQVWxoZk9WQkJRVEF3TURBd01Ua3lORGN6WHpNd01IZ3pNREF1YW5CbnxhODllNTg1NzUyZDFmZjY1NTc3NmVlNjVkZGViZTIzM2JhNGZiZDViY2NmNmRlZWI2M2I1Y2ZjZjRjMjU3OTNl
125606 DC Motors

BALDOR-RELIANCE BALDOR-RELIANCE

CDP3603

Description

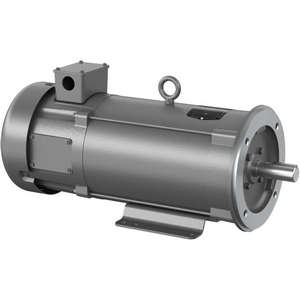

CDP3603 PERMANENT MAGNET DC MOTOR ; 3HP 182TC FRM 1800RPM 180VDC NEMA TEFC

Permanent Magnet; 3HP; 182TC Frame Size; 1800 Sync RPM; 180 Voltage; DC; TEFC Enclosure; NEMA Frame Profile; C-Face and Foot Mounted; Removable Base; 1-1/8" Shaft Diameter; 4-1/2" Base to Center Height; 23.33" Overall Length

Part #

CDP3603

BDI #
125606

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
DC Motors
Brand
BALDOR-RELIANCE
Manufacturer Name
ABB MOTORS AND MECHANICAL INC
Minimum Buy Quantity
N/A
Weight / Kilogram
50.848
EAN
0781568124567
Product Group - BDI
M04104
Horse Power
3HP
Frame Size
182TC
Sync RPM
1800
Voltage
180
Current
DC
Enclosure
TEFC
Frame Profile
NEMA
Mounting Method
C-Face | Foot Mounted
Base
Removable
Inch - Metric
Inch
Other Features
SCR Drive
Category - BDI
DC Motor
Harmonized Tariff Code
8501.33.40.60
Noun
Motor
Keyword String
Direct Current Permanent Magnet
Manufacturer URL
http://www.baldor.com
Weight / LBS
112
Long Description
Permanent Magnet; 3HP; 182TC Frame Size; 1800 Sync RPM; 180 Voltage; DC; TEFC Enclosure; NEMA Frame Profile; C-Face and Foot Mounted; Removable Base; 1-1/8" Shaft Diameter; 4-1/2" Base to Center Height; 23.33" Overall Length
Shaft Diameter
1.125 Inch | 28.575 Millimeter
Overall Length
23.33 Inch | 592.582 Millimeter
Base to Center Height
4.5 Inch | 114.3 Millimeter
