325325 Pulleys - Synchronous

BROWNING BROWNING

26XH300SF

Description

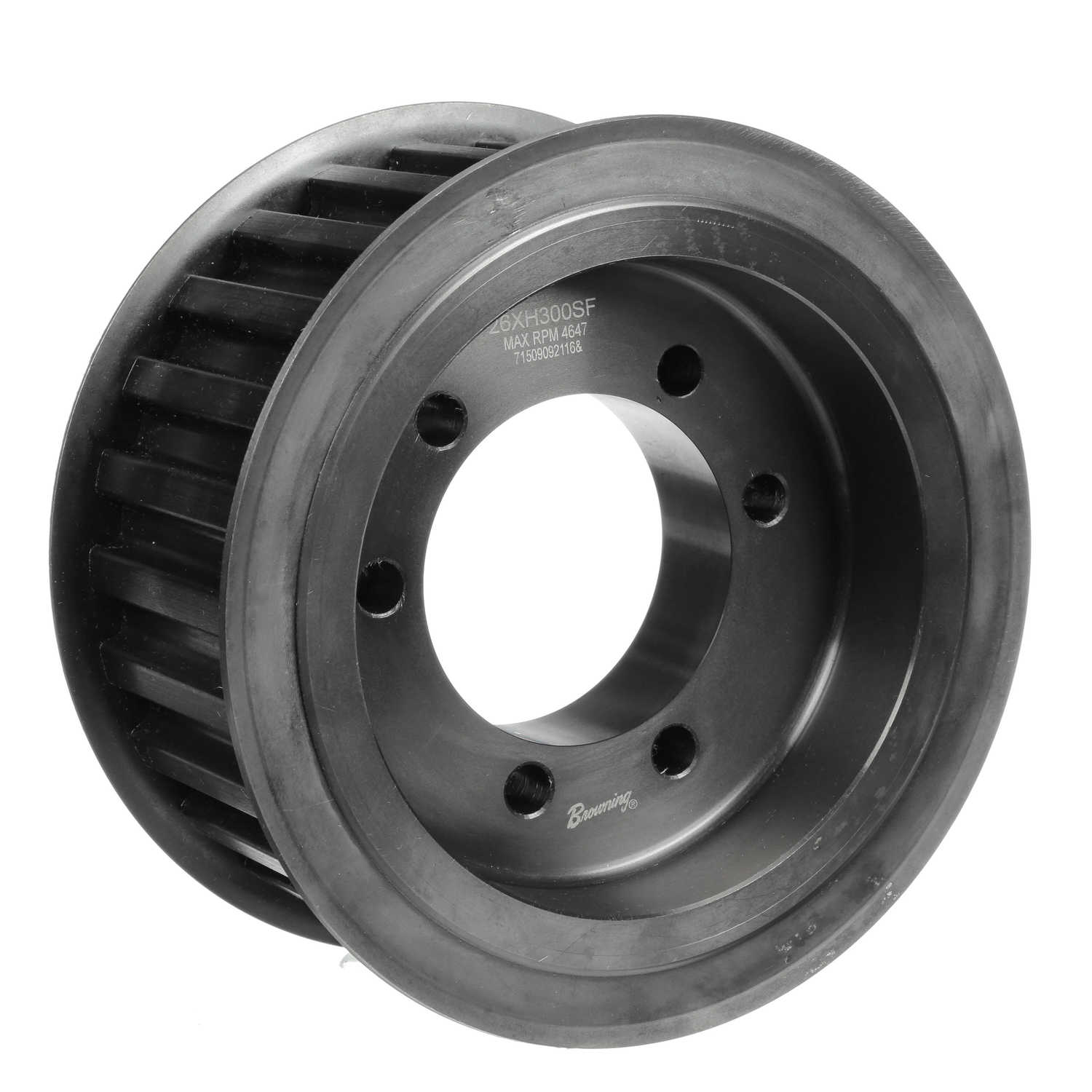

26XH300SF GEARBELT PULLEY

Synchronous Pulley; 3" Belt Width; 7/8 Inch Belt Pitch; XH Belt Style; 26 Teeth; 3-5/8" Face Width; Bushed; 7-3/4" Flange OD; 7.131" Outside Diameter; 7.241" Pitch Diameter; Keyway; 1/2 To 2-15/16" Bushing Bore Range; SF Bushing; No Minimum Plain Bore

Part #

26XH300SF

BDI #
325325

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Pulleys - Synchronous
Brand
BROWNING
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
Weight / Kilogram
8.898
EAN
0662289348718
Product Group - BDI
M02316
Belt Pitch
7/8 Inch
Belt Style
XH
Number of Teeth
26
Mounting Method
Bushed
Flanges
Yes
Keyway Yes/No
Yes
Bushing Size
SF
Minimum Plain Bore
No
Other Features
Bushing Not Included | Extra Heavy | QD Bushing | Solid Style | Type A1F
Inch - Metric
Inch
Category - BDI
Pulley Synchronous
Harmonized Tariff Code
8483.50.90.80
Noun
Pulley
Keyword String
Synchronous
Manufacturer URL
https://www.regalbeloit.com
Manufacturer Internal Number
3514726
Long Description
Synchronous Pulley; 3" Belt Width; 7/8 Inch Belt Pitch; XH Belt Style; 26 Teeth; 3-5/8" Face Width; Bushed; 7-3/4" Flange OD; 7.131" Outside Diameter; 7.241" Pitch Diameter; Keyway; 1/2 To 2-15/16" Bushing Bore Range; SF Bushing; No Minimum Plain Bore
Bore
0 Inch | 0 Millimeter
Face Width
3.625 Inch | 92.075 Millimeter
Flange Outside Diameter
7.75 Inch | 196.85 Millimeter
Belt Width
3 Inch | 76.2 Millimeter
Pitch Diameter
7.241 Inch | 183.921 Millimeter
Outside Diameter
7.131 Inch | 181.127 Millimeter
Bushing Bore Range
1/2 To 2-15/16 Inch | 12.7 To 74.613 Millimeter
