328958 Sheaves - Fixed Pitch

BROWNING BROWNING

2B5V200

Description

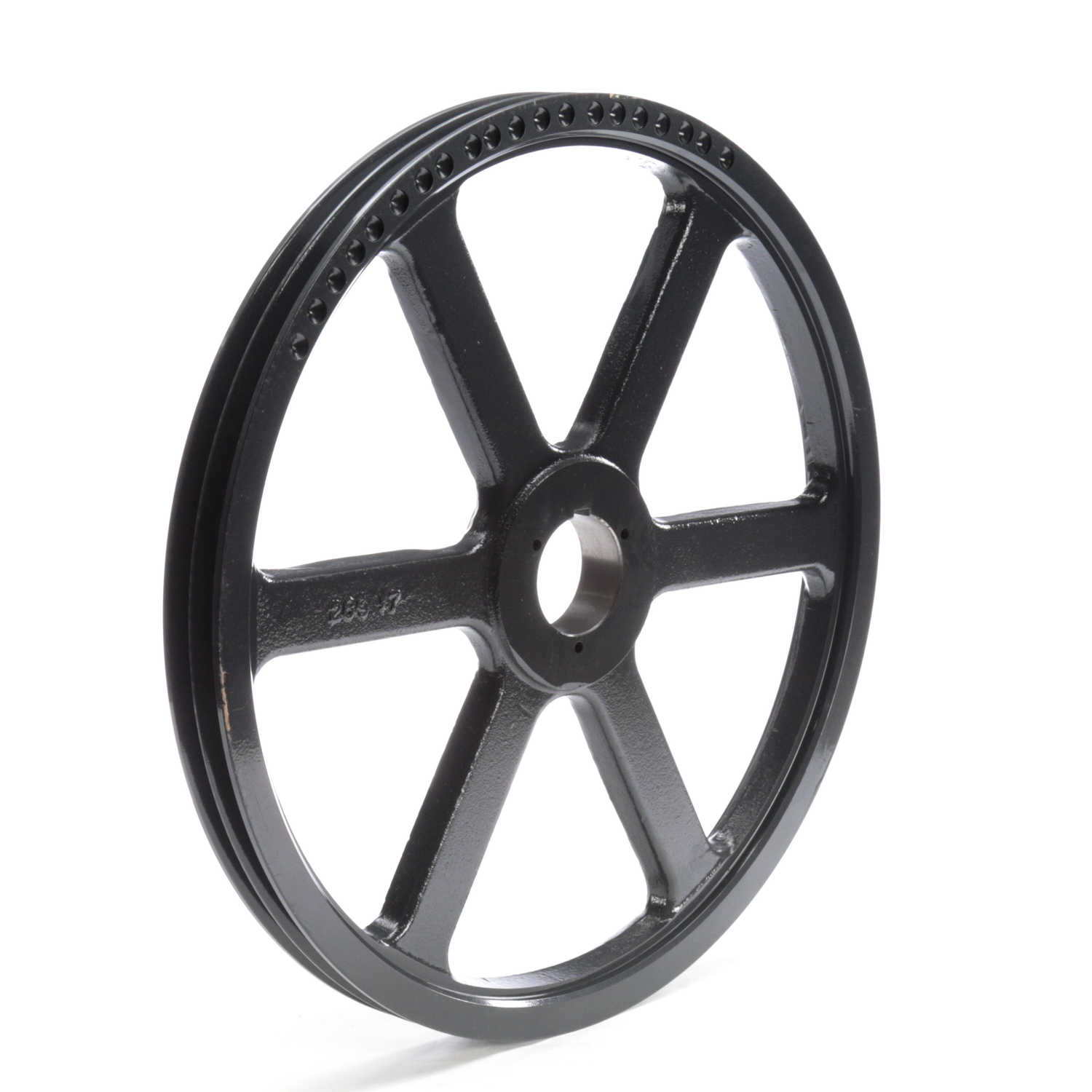

2B5V200 SHEAVE ; 2GR 5V 20.28" OD BORED FOR B BUSHING

Transmission Pulley; 2 Grooves; 20.28" Outside Diameter; Bushed; B Bushing Series; A | B | 5V Belt Series; 19-1/2" Pitch Minimum; 20.1" Pitch Maximum; 1/2 To 2-7/16" Bushing Bore Range; Keyway

Part #

2B5V200

BDI #
328958

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Sheaves - Fixed Pitch
Brand
BROWNING
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
UNSPSC
26111806
Weight / Kilogram
15.8
EAN
0662289034369
Product Group - BDI
M02350
Number of Grooves
2
Mounting Method
Bushed
Bushing Size
B
Belt Series
A | B | 5V
Keyway Yes/No
Yes
Minimum Plain Bore
No
Other Features
Split Taper Bushing | Arm Style | Type 4
Inch - Metric
Inch
Category - BDI
Sheave - Fixed Pitch
Harmonized Tariff Code
8483.50.90.40
Noun
Pulley
Keyword String
Transmission
Manufacturer URL
https://www.regalbeloit.com
Manufacturer Item Number
2B5V200
Manufacturer Internal Number
3694122
Weight / LBS
34.8
Long Description
Transmission Pulley; 2 Grooves; 20.28" Outside Diameter; Bushed; B Bushing Series; A | B | 5V Belt Series; 19-1/2" Pitch Minimum; 20.1" Pitch Maximum; 1/2 To 2-7/16" Bushing Bore Range; Keyway
Bore
0 Inch | 0 Millimeter
Outside Diameter
20.28 Inch | 515.112 Millimeter
Pitch Diameter Maximum
20.1 Inch | 510.54 Millimeter
Bushing Bore Range
1/2 To 2-7/16 Inch | 12.7 To 61.913 Millimeter
Pitch Diameter Minimum
19.5 Inch | 495.3 Millimeter
