Back to search results
358806 Parallel Shafts

BROWNING BROWNING

107SMTP05

Description

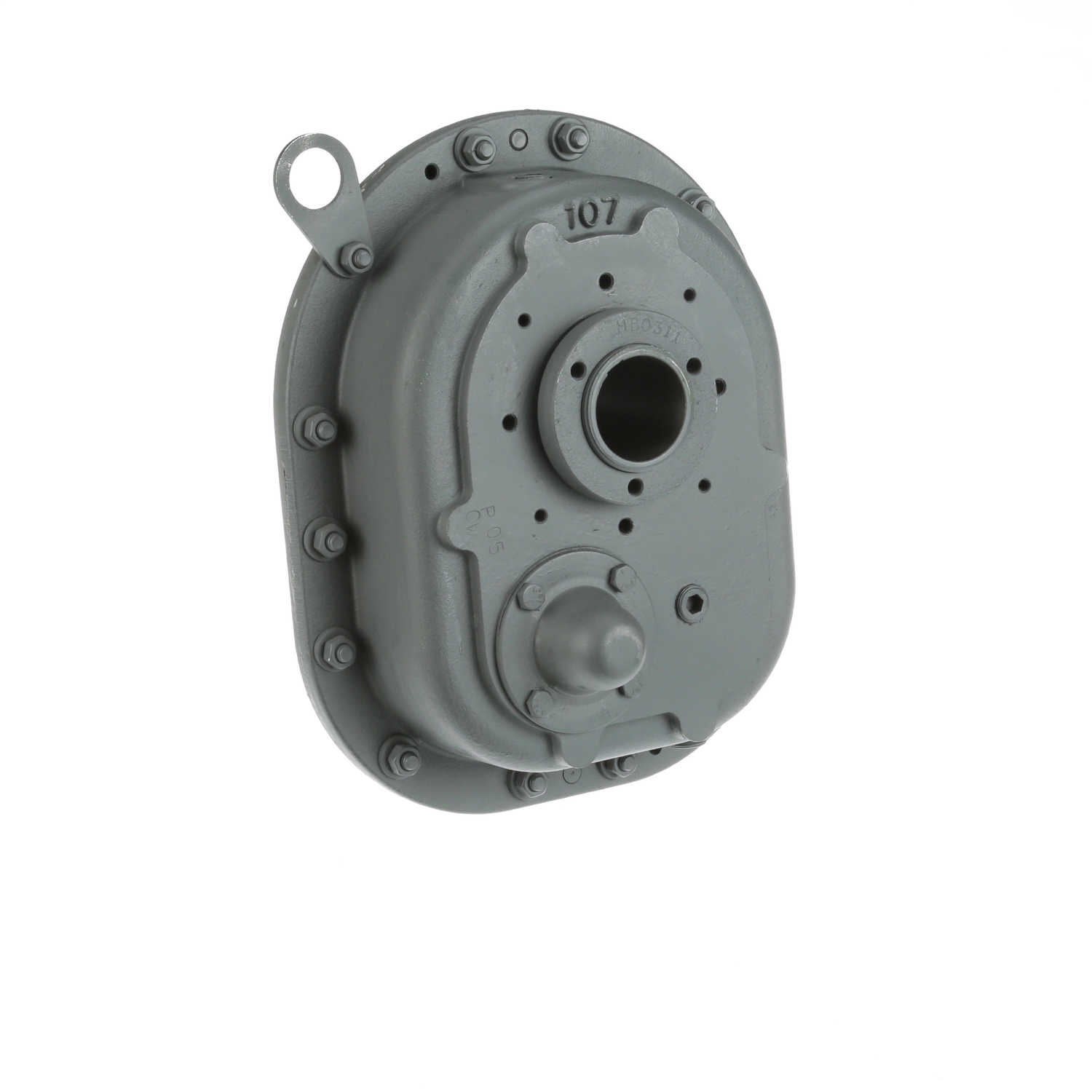

107SMTP05 ; SHAFT MOUNT REDUCER

Speed Reducer; TORQTAPER PLUS; Parallel; 5:1 Ratio; Not Applicable Frame; Shaft Input Type; Bushed Output Type; 350 Output RPM; Direct Mounted; Helical

Part #

PB0001

BDI #
358806

Details

2066.52 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 2,066.52 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Parallel Shafts
Brand
BROWNING
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
Weight / Kilogram
23.608
EAN
0662288909941
Product Group - BDI
M02282
Tradename
TORQTAPER PLUS
Reducer Type
Parallel
Nominal Ratio
5:1
Mounting Frame
Not Applicable
Input Type
Shaft
Output Type
Bushed
Motor Included
No
Nominal Max Input Rating
Not Available
Nominal Max Output RPM
350
Mounting Method
Direct Mounted
Output RPM at 1750 RPM Input
350
Gearing
Helical
Manufacturer's Series
SMTP
Maximum Overhung load value And um
1370Lbs
Base Included
No
Input Rating value plus um
1HP
Output Bushing Part Number
107TBP
Housing Material And Finish
Cast Iron
Output Torque value plus um
180.07In-Lbs
Fan Cooling
No
Other Features
Single Reduction
Inch - Metric
Inch
Category - BDI
Reducers Parallel Shaft
Harmonized Tariff Code
8483.40.10.00
Noun
Reducer
Keyword String
Speed Helical
Manufacturer URL
https://www.regalrexnord.com
Manufacturer Internal Number
PB0001
Weight / LBS
52
Long Description
Speed Reducer; TORQTAPER PLUS; Parallel; 5:1 Ratio; Not Applicable Frame; Shaft Input Type; Bushed Output Type; 350 Output RPM; Direct Mounted; Helical
Bolt Hole Diameter
0.375 Inch | 9.525 Millimeter
Overall Length
11.07 Inch | 281.178 Millimeter
Output Bore
1.438 Inch | 36.525 Millimeter
Overall Width
9.76 Inch | 247.904 Millimeter
Input Shaft Length
4.08 Inch | 103.632 Millimeter
Overall Height
12.07 Inch | 306.578 Millimeter
Nominal Center Distance
3.77 Inch | 95.758 Millimeter
Center Distance
3.77 Inch | 95.758 Millimeter
Input Shaft Diameter
0.75 Inch | 19.05 Millimeter
Output Bore Range
3/4 To 1-7/16 Inch | 19.05 To 36.513 Millimeter
