350468
Right Angle Shafts
MORSE INDUSTRIAL
MORSE INDUSTRIAL
237UR40
MORSE INDUSTRIAL MORSE INDUSTRIAL
Description

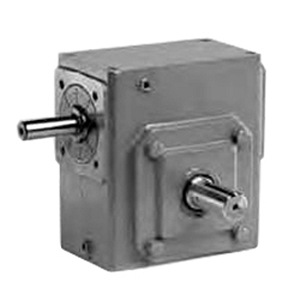

237UR40 WORM GEAR REDUCER ; U 100-325 NON RETURNABLE
Speed Reducer; Right Angle; 40:1 Ratio; Shaft Input Type; Right Hand Output Type; Direct Mounted; Worm; U Series; 3/4" Input Shaft Diameter
Part #
XF1018
BDI #
350468
Details
800.93
USD
2099-12-31
http://schema.org/NewCondition
https://schema.org/LimitedAvailability
https://www.bdiexpress.com/us/en/Mechanical-Power-Transmission/Reducers-%26-Gearmotors/Right-Angle-Shafts/237UR40/p/350468
Your Price
$ 800.93 / each
$ 1,603.80 / each BDIExpress
$ 1,603.80 / each BDIExpress
|
|||
Specifications
Category
Minimum Buy Quantity
N/A
Weight / Kilogram
14.982
EAN
0662288348771
Product Group - BDI
M02282
Tradename
RAIDER PLUS
Reducer Type
Right Angle
Nominal Ratio
40:1
Mounting Frame
Not Applicable
Input Type
Shaft
Output Type
Right Hand
Motor Included
No
Nominal Max Input Rating
1HP
Nominal Max Output RPM
43.8
Mounting Method
Direct Mounted
Output RPM at 1750 RPM Input
43.7
Gearing
Worm
Manufacturer's Series
U
Mounting Position
Universal
Mounting Bolt Pattern footprint
Rectangular
Maximum Overhung load value And um
843Lbs
Base Included
No
Input Rating value plus um
1.14HP
Housing Material And Finish
Rugged Cast Iron
Output Torque
1216In-Lbs
Fan Cooling
No
Other Features
Single Reduction | Single Piece Construction | Heavy Duty Tapered Roller Bearing on Output Shaft | Double Lip Seal
Inch - Metric
Inch
Category - BDI
Reducers Right Angle
Harmonized Tariff Code
8483.40.10.00
Noun
Reducer
Keyword String
Speed Worm
Manufacturer URL
https://www.regalrexnord.com
Manufacturer Item Number
237UR40
Manufacturer Internal Number
XF1018
Weight / LBS
31
Long Description
Speed Reducer; Right Angle; 40:1 Ratio; Shaft Input Type; Right Hand Output Type; Direct Mounted; Worm; U Series; 3/4" Input Shaft Diameter
Bolt Hole Diameter
0.375 Inch | 9.525 Millimeter
Overall Width
7.78 Inch | 197.612 Millimeter
Overall Length
9 Inch | 228.6 Millimeter
Output Shaft Diameter
1.125 Inch | 28.575 Millimeter
Nominal Center Distance
2.31 Inch | 58.674 Millimeter
Center Distance
2.37 Inch | 60.198 Millimeter
Overall Height
6.94 Inch | 176.276 Millimeter
Input Shaft Diameter
0.75 Inch | 19.05 Millimeter
Base to Center of Input Shaft
4.87 Inch | 123.698 Millimeter
Input Shaft Length
1.94 Inch | 49.276 Millimeter
Output Shaft Length
2.37 Inch | 60.198 Millimeter
Base to Center of Output Shaft
2.5 Inch | 63.5 Millimeter
