71948-MP-P5-UA https://www.bdiexpress.com/medias/INDFAGBRGXXX-PACB1-OPEN-BR-300x300.jpg?context=bWFzdGVyfHJvb3R8MjA0MjV8aW1hZ2UvanBlZ3xhR1EzTDJobE5DODVPVGswTmpFeU5UTTVOREl5TDBsT1JFWkJSMEpTUjFoWVdGOVFRVU5DTVY5UFVFVk9YMEpTWHpNd01IZ3pNREF1YW5CbnxhYzE4MzNjZWYxY2I4YWU5ZGFmN2Y5YzYyNGE2MWQ0MjRmZTk3NDJkZjE4MWIzNGE3NTM0NTc0MjBlOWU0M2Fk
Back to search results

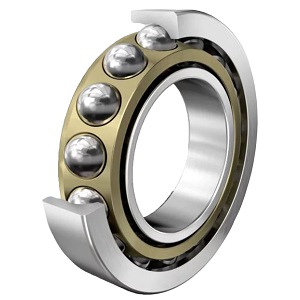

24858502 Precision Ball Bearings

FAG BEARING FAG BEARING

71948-MP-P5-UA

Description

71948-MP-P5-UA AC BALL BEARING ; POR NON RETURNABLE 240MM X 320MM X 38MM

Precision Ball Bearing; 240MM Bore; 320MM Outside Diameter; 38MM Width; Open Enclosure; ABEC 5 | ISO P5 Precision; Steel Ball Material; 1 (Single) Bearings; 30 Degree Contact Angle; Brass Cage Material; 1 Rib Inner Ring and Outer Ring Raceway Type; Ball Bearing; Universal Mounting Arrangement

Part #

71948-MP-P5-UA

BDI #
24858502

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Precision Ball Bearings
Brand
FAG BEARING
Manufacturer Name
SCHAEFFLER GROUP
Minimum Buy Quantity
N/A
Weight / Kilogram
7.21
EAN
4026677624697
Product Group - BDI
B00308
Enclosure
Open
Precision Class
ABEC 5 | ISO P5
Material - Ball
Steel
Number of Bearings
1 (Single)
Contact Angle
30 Degree
Preload
None
Raceway Style
1 Rib Inner Ring and Outer Ring
Cage Material
Brass
Rolling Element
Ball Bearing
Mounting Arrangement
Universal
Flush Ground
No
Inch - Metric
Metric
Other Features
Angular Contact
Category - BDI
Precision Ball Bearings
Harmonized Tariff Code
8482.10.50.28
Noun
Bearing
Keyword String
Ball Angular Contact
Manufacturer URL
https://www.schaeffler.com
Weight / LBS
15.895
Long Description
Precision Ball Bearing; 240MM Bore; 320MM Outside Diameter; 38MM Width; Open Enclosure; ABEC 5 | ISO P5 Precision; Steel Ball Material; 1 (Single) Bearings; 30 Degree Contact Angle; Brass Cage Material; 1 Rib Inner Ring and Outer Ring Raceway Type; Ball Bearing; Universal Mounting Arrangement
Bore
9.449 Inch | 240 Millimeter
Outside Diameter
12.598 Inch | 320 Millimeter
Width
1.496 Inch | 38 Millimeter
