GF60SS-PBH https://www.bdiexpress.com/medias/INDM-GHUBXXX-GF-MPB-SCRW-SS-300x300.jpg?context=bWFzdGVyfHJvb3R8MTgyMDR8aW1hZ2UvanBlZ3xhREl5TDJnME15OHhNREE1T0RVM016QXhOekV4T0M5SlRrUk5MVWRJVlVKWVdGaGZSMFpmVFZCQ1gxTkRVbGRmVTFOZk16QXdlRE13TUM1cWNHY3w0ZjFlOTYxNjIyMjk4N2MyMDNmNmU0NjczZGExNzY1ZjQyNWE3YTJkMDRkYjFmMTEzZGVmNjg3ZmEwZjk5Yjgw

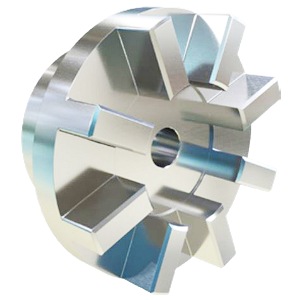

24658126 Jaw Hub

MARTIN SPROCKET & GR MARTIN SPROCKET & GR

GF60SS-PBH

Description

GF60SS-PBH COUPLING HUB ; GO-FLEX PLAIN BORE STK

Jaw Coupling Hub; 5-1/2" Hub Dia; Jaw Coupling; Hub; Shaft; Minimum Plain Bore; No Keyway; 6.75" Outside Diameter; 2.67" Length Thru Bore; GF60 Size or Series; Set Screw; Stainless Steel; 4200 Maximum Speed; 58137In-Lbs Torque

Part #

GF60SS-PBH

BDI #
24658126

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Jaw Hub
Brand
MARTIN SPROCKET & GR
Manufacturer Name
MARTIN SPROCKET & GEAR
Minimum Buy Quantity
N/A
Weight / Kilogram
10.98
EAN
0697950923765
Product Group - BDI
M02194
Coupling Type
Jaw Coupling
Component
Hub
Hub Type
Shaft
Bore Profile
Minimum Plain Bore
Keyway Yes/No
No
Coupling Size or Series
GF60
Mounting Method
Set Screw
Bushing Size if bushed
No Bushing
Material
Stainless Steel
Maximum Speed RPM
4200
Torque
58137In-Lbs
Inch - Metric
Inch
Other Features
Components May or May Not Intermix Among Brands
Category - BDI
Couplings Jaw Hub
Harmonized Tariff Code
8483.90.80.10
Noun
Hub
Keyword String
Coupling Jaw
Manufacturer URL
https://www.martinsprocket.com
Long Description
Jaw Coupling Hub; 5-1/2" Hub Dia; Jaw Coupling; Hub; Shaft; Minimum Plain Bore; No Keyway; 6.75" Outside Diameter; 2.67" Length Thru Bore; GF60 Size or Series; Set Screw; Stainless Steel; 4200 Maximum Speed; 58137In-Lbs Torque
Length Thru Bore
2.67 Inch | 67.818 Millimeter
Hub Diameter
5.5 Inch | 139.7 Millimeter
Bore
0 Inch | 0 Millimeter
Outside Diameter
6.75 Inch | 171.45 Millimeter
