ADS60A20H X 45MM 14MMX3.8MM KW 2SS https://www.bdiexpress.com/medias/INDUSTSPKTXX-RC-A-DS-KW-STL-300x300.jpg?context=bWFzdGVyfHJvb3R8MTgwMjB8aW1hZ2UvanBlZ3xhRGMwTDJnek9DODVPRGsxTVRZd09EQTNORFUwTDBsT1JGVlRWRk5RUzFSWVdGOVNRMTlCWDBSVFgwdFhYMU5VVEY4ek1EQjRNekF3TG1wd1p3fDAxMjRhMDZkYWEzMzU1ODM2YzcwNTIyMjQzMjkzMjViMjFmZDdlNmU0NDQzMTBlNTljMjAzMmVmZDA1NjFmYmE
23769466 Roller Chain Sprockets

TSUBAKI TSUBAKI

ADS60A20H X 45MM 14MMX3.8MM KW 2SS

Description

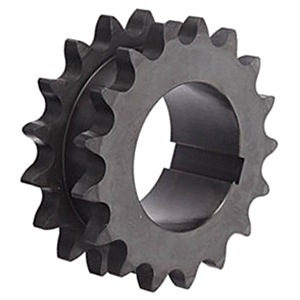

ADS60A20H X 45MM 14MMX3.8MM KW 2SS ; ROLLER CHAIN SPROCKET

Roller Chain Sprocket; 45MM Bore; 60 Chain; 20 Teeth; 2 Row of Teeth; Hardened Teeth; 131.724MM Outside Diameter; 121.78MM Pitch Diameter; A-Double Single; Finished Bore Mount; No Bushing; 19.05MM Chain Pitch; ANSI Roller Chain; Keyway; Steel Material

Part #

ADS60A20H X 45MM 14MMX3.8MM KW 2SS

BDI #
23769466

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Request a quotation

Category
Roller Chain Sprockets
Brand
TSUBAKI
Manufacturer Name
TSUBAKI
Minimum Buy Quantity
N/A
Weight / Kilogram
0
Product Group - BDI
M02312
Chain Size
60
Number of Teeth
20
Number of Rows of Teeth
2
Hub Type
A-Double Single
Mounting Method
Finished Bore
Bushing Size if bushed
No Bushing
Hardened Teeth
Yes
Chain Type
ANSI Roller Chain
Keyway Yes/No
Yes
Material
Steel
Minimum Plain Bore
No
Other Features
With 2 Set Screw
Inch - Metric
Metric
Category - BDI
Sprockets
Harmonized Tariff Code
8483.90.10.50
Noun
Sprocket
Keyword String
Roller Chain
Manufacturer URL
https://www.ustsubaki.com
Long Description
Roller Chain Sprocket; 45MM Bore; 60 Chain; 20 Teeth; 2 Row of Teeth; Hardened Teeth; 131.724MM Outside Diameter; 121.78MM Pitch Diameter; A-Double Single; Finished Bore Mount; No Bushing; 19.05MM Chain Pitch; ANSI Roller Chain; Keyway; Steel Material
Chain Pitch
0.75 Inch | 19.05 Millimeter
Bore
1.772 Inch | 45 Millimeter
Outside Diameter
5.186 Inch | 131.724 Millimeter
Pitch Diameter
4.794 Inch | 121.78 Millimeter
