VF3333K-5YOD1-02F https://www.bdiexpress.com/medias/MFRSMCVALVEX-20304086-300x300.jpg?context=bWFzdGVyfHJvb3R8NjcyM3xpbWFnZS9qcGVnfGFEWXlMMmhsTlM4eE1ESXhNVEk0T1RjMU9UYzNOQzlOUmxKVFRVTldRVXhXUlZoZk1qQXpNRFF3T0RaZk16QXdlRE13TUM1cWNHY3wxY2Y5Nzc5M2Y0ZWE3ZDcwNTk3MmE2MzI5ZDA4MDY3Yzc1M2UwNTlkMTQ2YThkOGY3MWRlMGVmNjY5MzA5YTJk
Back to search results

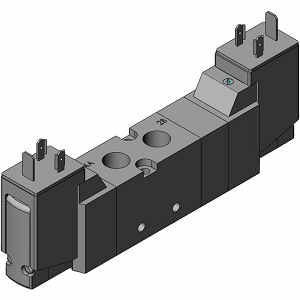

20304086 Hydraulic and Pneumatic Valves

SMC SMC

VF3333K-5YOD1-02F

Description

VF3333K-5YOD1-02F

Solenoid Valve; 1/4" G; 5 Port | 4 Way; 3 Position; 24 VDC; Pneumatic; Solenoid - Air Pilot - Spring | Solenoid - Air Pilot - Spring Return; 145 PSI; 14 To 122 Deg F; Rubber Seal; Aluminum

Part #

VF3333K-5YOD1-02F

BDI #
20304086

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
Weight / Kilogram
1
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/4" G
Number of Ports/Way
5 Port | 4 Way
Number of Positions
3 Position
Actuation
Solenoid - Air Pilot - Spring | Solenoid - Air Pilot - Spring Return
Voltage
24 VDC
Media
Pneumatic
Maximum Pressure
145 PSI
Operating Pressure Range
22 To 145 PSI
Operating Temperature Range
14 To 122 Deg F
Seal Type
Rubber
Body Material
Aluminum
Inch - Metric
Inch
Other Features
0.68/0.47 Cv Factor | Body Ported | Common Exhaust Main/Pilot | DIN Terminal with Connector | Push Turn Locking Slotted Type Manual Override | High Pressure Type
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcworld.com
Weight / LBS
0.723
Long Description
Solenoid Valve; 1/4" G; 5 Port | 4 Way; 3 Position; 24 VDC; Pneumatic; Solenoid - Air Pilot - Spring | Solenoid - Air Pilot - Spring Return; 145 PSI; 14 To 122 Deg F; Rubber Seal; Aluminum
Overall Height
3.504 Inch | 89 Millimeter
Overall Length
8.071 Inch | 205 Millimeter
Overall Width
1.181 Inch | 30 Millimeter
