FAG BEARING
FAG BEARING
HCB7022-E-2RSD-T-P4S-UL
FAG BEARING FAG BEARING
描述

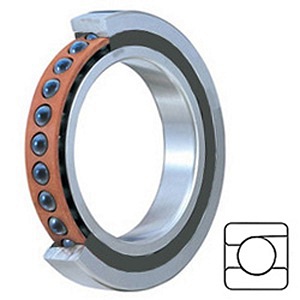

FAG BEARING HCB7022-E-2RSD-T-P4S-UL
Precision Ball Bearing; 110MM Bore; 170MM Outside Diameter; 28MM Width; 2 Seals Enclosure; ABEC 7 | ISO P4 Precision; Ceramic Ball Material; 1 (Single) Bearings; 25 Degree Contact Angle; Phenolic Cage Material; 1 Rib Outer Ring Raceway Type; Ball Bearing; Universal Mounting Arrangement
制造商部件号
HCB7022-E-2RSD-T-P4S-UL
BDI部件号
23927370
详情
979.0
CNY
2099-12-31
http://schema.org/NewCondition
http://schema.org/InStock
https://www.bdiexpress.com/cn/zh/%E8%BD%B4%E6%89%BF/%E7%90%83%E8%BD%B4%E6%89%BF/%E7%B2%BE%E5%AF%86%E7%90%83%E8%BD%B4%E6%89%BF/HCB7022-E-2RSD-T-P4S-UL/p/23927370
单价(不含税)
¥979.00 / 套
¥2,291.00 / 套 BDIExpress
¥2,291.00 / 套 BDIExpress
|
|||
产品详细信息
分类
最低订购量
无
重量 / Kilogram
0
Product Group - BDI
B04270
外壳
2 Seals
精度等级
ABEC 7 | ISO P4
材料 - 滚珠
Ceramic
轴承数量
1 (Single)
接触角
25 Degree
预加载
Light
滚道类型
1 Rib Outer Ring
保持架材料
Phenolic
滚动体
Ball Bearing
外壳类型
Non Contact Seal
安装配组
Universal
磨平
No
英寸 - 公制
Metric
其它特点
Angular Contact | Spindle Bearing | High Speed Ball
类别 - BDI
Precision Ball Bearings
名称
Bearing
关键字串
Ball Angular Contact
重量/磅
3.59133
详细描述
Precision Ball Bearing; 110MM Bore; 170MM Outside Diameter; 28MM Width; 2 Seals Enclosure; ABEC 7 | ISO P4 Precision; Ceramic Ball Material; 1 (Single) Bearings; 25 Degree Contact Angle; Phenolic Cage Material; 1 Rib Outer Ring Raceway Type; Ball Bearing; Universal Mounting Arrangement
外径
6.693 英寸 | 170 毫米
宽度
1.102 英寸 | 28 毫米
孔径
4.331 英寸 | 110 毫米
