3M505 https://www.bdiexpress.com/medias/SRODTNMOTORX-FAN-3M505-300x300.jpg?context=bWFzdGVyfHJvb3R8MTUzODd8aW1hZ2UvanBlZ3xhR1l4TDJobE5pODVOemc0TlRjeU1UTTVOVFV3TDFOU1QwUlVUazFQVkU5U1dGOUdRVTVmTTAwMU1EVmZNekF3ZURNd01DNXFjR2N8NjM0M2M2MWU0NDg0MTRhZWI5OTUwYjk1MjQyNjY3YTU5MmJiMTM0ZjkxNmViMmQ3OWU1YjhjM2Q5MDk4YTlkYg
Back to search results
21470571 AC Motors

DAYTON MANUFACTURING DAYTON MANUFACTURING

3M505

Description

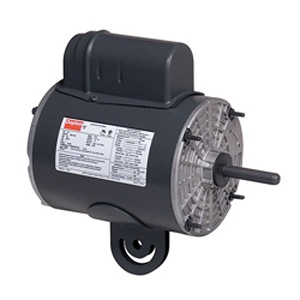

3M505 FAN MOTOR ; 115V 7.2A 1PH 1/2HP 1075RPM

AC Motor; Pedestal Fan; 1/2HP Power; 115VAC Voltage; 1 Phase; 8A Current; 48YZ Frame; 60HZ Frequency; 1075RPM Speed; Totally Enclosed Air Over; 5/8" Shaft Diameter; Yoke Mounting; 10-3/8" Length; 5-5/8" Body Diameter; 2-1/2" Shaft Length; Auto Thermally Protected; Continuous Duty; 40 Degree C

Part #

3M505

BDI #
21470571

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
AC Motors
Brand
DAYTON MANUFACTURING
Manufacturer Name
DAYTON MANUFACTURING
Minimum Buy Quantity
N/A
Weight / Kilogram
2.27
Product Group - BDI
M04104
Harmonized Tariff Code
8501.40.60.40
Noun
Motor
Keyword String
Alternating Current
Manufacturer URL
http://www.daytonmanufacturing.com
Product Detail
AC Motor
Product Specification
Pedestal Fan; 1/2HP Power; 115VAC Voltage; 1 Phase; 8A Current; 48YZ Frame; 60HZ Frequency; 1075RPM Speed; Totally Enclosed Air Over; 5/8" Shaft Diameter; Yoke Mounting; 10-3/8" Length; 5-5/8" Body Diameter; 2-1/2" Shaft Length; Auto Thermally Protected; Continuous Duty; 40 Degree C
Long Description
AC Motor; Pedestal Fan; 1/2HP Power; 115VAC Voltage; 1 Phase; 8A Current; 48YZ Frame; 60HZ Frequency; 1075RPM Speed; Totally Enclosed Air Over; 5/8" Shaft Diameter; Yoke Mounting; 10-3/8" Length; 5-5/8" Body Diameter; 2-1/2" Shaft Length; Auto Thermally Protected; Continuous Duty; 40 Degree C
