SY3120-6LZD-C4 https://www.bdiexpress.com/medias/INDSMCVALVEX-SY3120-L-C4-300x300.jpg?context=bWFzdGVyfHJvb3R8MjM3ODF8aW1hZ2UvanBlZ3xhRGRqTDJnMk15OHhNREF5TWpBek5qTTNNelV6TkM5SlRrUlRUVU5XUVV4V1JWaGZVMWt6TVRJd1gweGZRelJmTXpBd2VETXdNQzVxY0djfDcyZTlkOGEzNjUwYThhYTI0Nzk1OGI2ZDZjNzk2M2JjOTRiYzU5NmM5MTdhMGI1Y2I4NTkyMDZiYmU0YWU1MWQ
Back to search results
17865141 Hydraulic and Pneumatic Valves

SMC SMC

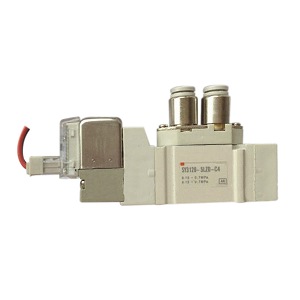

SY3120-6LZD-C4

Description

SY3120-6LZD-C4 ; VALVE SGL SOL BODY PT DC

Solenoid Valve; 4 MM Tubing OD Port; 5 Port | 4 Way; 2 Position; 12 VDC; Pneumatic; Solenoid - Air Pilot | Air Pilot Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Zinc

Part #

SY3120-6LZD-C4

BDI #
17865141

Details

108.53 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 108.53 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
Weight / Kilogram
0.06
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
4 MM Tubing OD
Number of Ports/Way
5 Port | 4 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot Return
Voltage
12 VDC
Media
Pneumatic
Maximum Pressure
102 PSI
Operating Pressure Range
22 To 102 PSI
Operating Temperature Range
14 To 122 Deg F
Seal Type
Rubber
Body Material
Zinc
Inch - Metric
Metric
Other Features
0.18/0.17 Cv Factor | Air Fluid | Body Ported | Internal Pilot | Push-Turn Locking Slotted Type Manual Override | L Plug with 300MM Lead Wire | With Light/Surge Voltage Suppressor | One Touch Fitting | In/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcpneumatics.com
Weight / LBS
0.1328
Long Description
Solenoid Valve; 4 MM Tubing OD Port; 5 Port | 4 Way; 2 Position; 12 VDC; Pneumatic; Solenoid - Air Pilot | Air Pilot Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Zinc
Overall Length
3.024 Inch | 76.8 Millimeter
Overall Width
0.457 Inch | 11.6 Millimeter
Overall Height
1.449 Inch | 36.8 Millimeter
