328899 Right Angle Shafts

BROWNING BROWNING

6HB1-SF10

Description

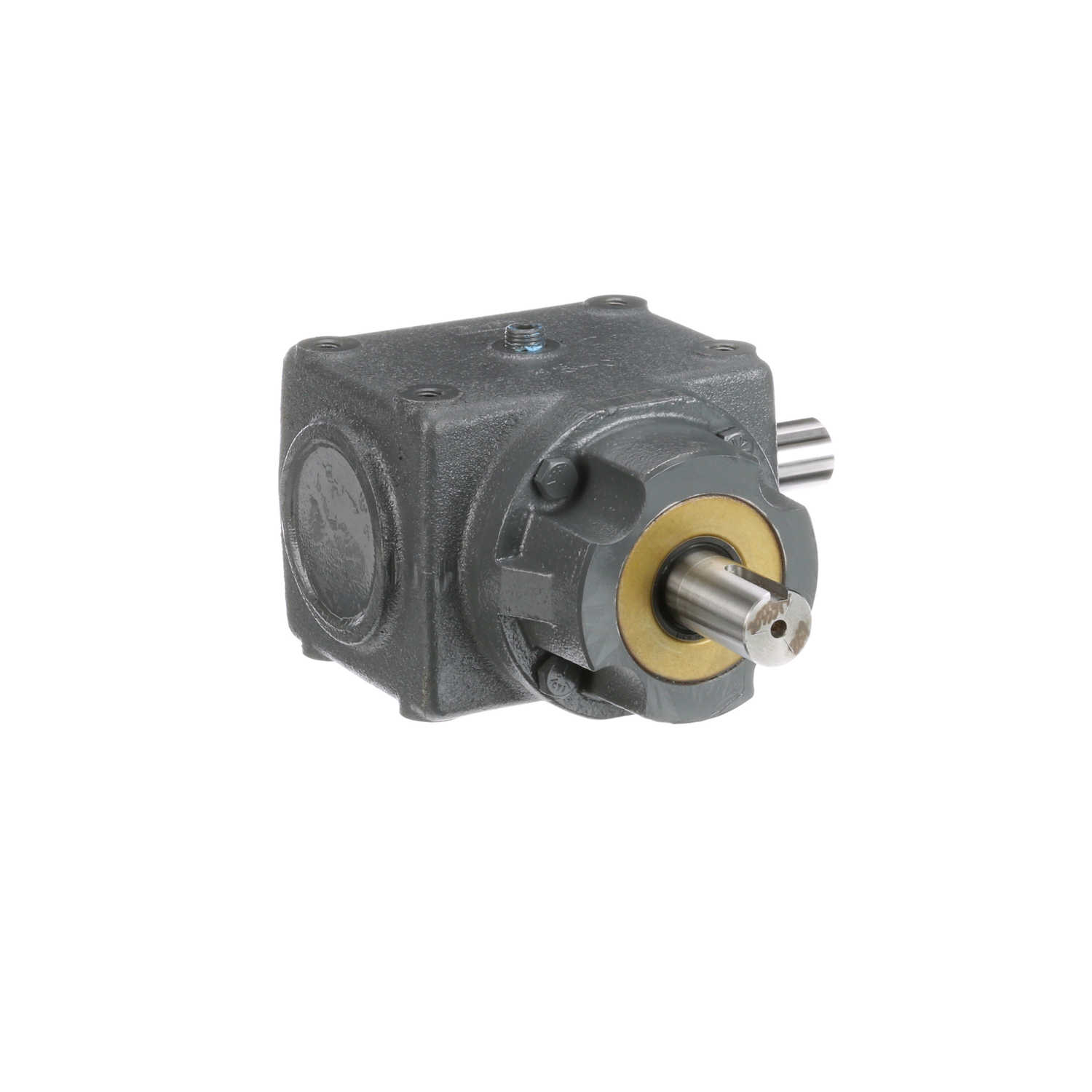

BROWNING 6HB1-SF10

Speed Reducer; Right Angle; 1:1 Ratio; Shaft Input Type; Shaft Output Type; Direct Mounted; Straight Bevel; 6HB1 Series; 1" Input Shaft Diameter

Part #

1251388

BDI #
328899

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

751.2923 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 751.29 / CU
$ 1,997.60 / CU BDIExpress
QTY

Inventory

Total: Available to order

Category
Right Angle Shafts
Brand
BROWNING
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
Weight / Kilogram
10.306
EAN
0662289200207
Product Group - BDI
M02282
Reducer Type
Right Angle
Nominal Ratio
1:1
Mounting Frame
Not Applicable
Input Type
Shaft
Output Type
Shaft
Motor Included
No
Nominal Max Input Rating
20HP
Nominal Max Output RPM
1750
Mounting Method
Direct Mounted
Output RPM at 1750 RPM Input
1750
Gearing
Straight Bevel
Manufacturer's Series
6HB1
Mounting Position
Floor
Mounting Bolt Pattern footprint
Rectangular
Maximum Overhung load value And um
536Lbs
Base Included
No
Input Rating value plus um
21.8HP
Housing Material And Finish
Rugged Cast Iron
Output Torque
784In-Lbs
Fan Cooling
No
Inch - Metric
Inch
Category - BDI
Reducers Right Angle
Harmonized Tariff Code
8483.40.10.00
Noun
Reducer
Keyword String
Speed Straight Bevel
Manufacturer URL
https://www.regalrexnord.com
Manufacturer Internal Number
1251388
Weight / LBS
23
Long Description
Speed Reducer; Right Angle; 1:1 Ratio; Shaft Input Type; Shaft Output Type; Direct Mounted; Straight Bevel; 6HB1 Series; 1" Input Shaft Diameter
Base to Center of Input Shaft
2.125 Inch | 53.975 Millimeter
Nominal Center Distance
0 Inch | 0 Millimeter
Bolt Hole Diameter
0.375 Inch | 9.525 Millimeter
Overall Width
8.188 Inch | 207.975 Millimeter
Input Shaft Diameter
1 Inch | 25.4 Millimeter
Output Shaft Length
1.625 Inch | 41.275 Millimeter
Output Shaft Diameter
1 Inch | 25.4 Millimeter
Base to Center of Output Shaft
2.125 Inch | 53.975 Millimeter
Overall Length
7.469 Inch | 189.713 Millimeter
Input Shaft Length
1.75 Inch | 44.45 Millimeter
Overall Height
4.25 Inch | 107.95 Millimeter
