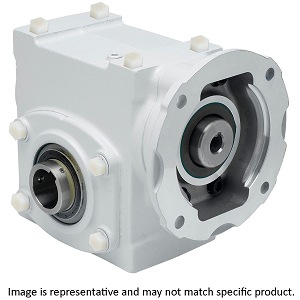

20QZ20HA14WP https://www.bdiexpress.com/medias/INDDODSPDRED-QZ-HA14-WP-300x300.jpg?context=bWFzdGVyfHJvb3R8MjE2Nzl8aW1hZ2UvanBlZ3xhRFV5TDJnMFpDOHhNREV4TURRMU5qRTJPRFEzT0M5SlRrUkVUMFJUVUVSU1JVUmZVVnBmU0VFeE5GOVhVRjh6TURCNE16QXdMbXB3Wnd8NWQwZGE2ZWZhMjVhY2QxZjZiN2M4MmEwOTBhODU1OWNmN2UzNWM2ZTRlZjJkYTRjMzkzMmM5NjdjMDU3YTAzMA
Back to search results
268187 Right Angle Shafts

DODGE DODGE

20QZ20HA14WP

Description

20QZ20HA14WP TIGEAR-2 E-Z KL ; NON RETURNABLE

Speed Reducer; Right Angle; 20:1 Ratio; 143TC/145TC; C-Face Quill Input Type; Hollow Shaft Output Type; Direct Mounted; Worm; 20 Series; 7/8" Input Shaft Diameter

Part #

20QZ20HA14WP

BDI #
268187

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

1216.9 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 1,216.90 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Right Angle Shafts
Brand
DODGE
Manufacturer Name
ABB MOTORS AND MECHANICAL INC
Minimum Buy Quantity
N/A
Weight / Kilogram
21.79
EAN
0782476211431
Product Group - BDI
M02282
Tradename
TIGEAR-2 E-Z KLEEN
Reducer Type
Right Angle
Nominal Ratio
20:1
Mounting Frame
143TC/145TC
Input Type
C-Face Quill
Output Type
Hollow Shaft
Motor Included
No
Nominal Max Input Rating
1HP
Nominal Max Output RPM
87.5
Mounting Method
Direct Mounted
Output RPM at 1750 RPM Input
88
Gearing
Worm
Manufacturer's Series
20
Mounting Position
Floor | Wall | Ceiling
Mounting Bolt Pattern footprint
Rectangular
Maximum Overhung load value And um
1560Lbs
Base Included
No
Input Rating value plus um
1.34HP
Housing Material And Finish
White Painted Class 30 Gray Iron
Output Torque
796In-Lbs
Fan Cooling
No
Other Features
Single Reduction | Washdown Duty | Totally Enclosed Non-Vented Sealing
Inch - Metric
Inch
Category - BDI
Reducers Right Angle
Harmonized Tariff Code
8483.40.10.00
Noun
Reducer
Keyword String
Speed Worm
Manufacturer URL
https://dodgeindustrial.com
Manufacturer Item Number
TIGEAR-2 E-Z KLEEN REDUCER-WHITE
Weight / LBS
48
Long Description
Speed Reducer; Right Angle; 20:1 Ratio; 143TC/145TC; C-Face Quill Input Type; Hollow Shaft Output Type; Direct Mounted; Worm; 20 Series; 7/8" Input Shaft Diameter
Output Bore
1.188 Inch | 30.175 Millimeter
Input Shaft Diameter
0.875 Inch | 22.225 Millimeter
Base to Center of Input Shaft
4.24 Inch | 107.696 Millimeter
Base to Center of Output Shaft
2.24 Inch | 56.896 Millimeter
Overall Width
6.5 Inch | 165.1 Millimeter
Bolt Hole Diameter
0.375 Inch | 9.525 Millimeter
Nominal Center Distance
2 Inch | 50.8 Millimeter
Overall Length
8.47 Inch | 215.138 Millimeter
Overall Height
7.5 Inch | 190.5 Millimeter
Center Distance
2 Inch | 50.8 Millimeter
