328848 Right Angle Shafts

BROWNING BROWNING

12HB1-LR20

Description

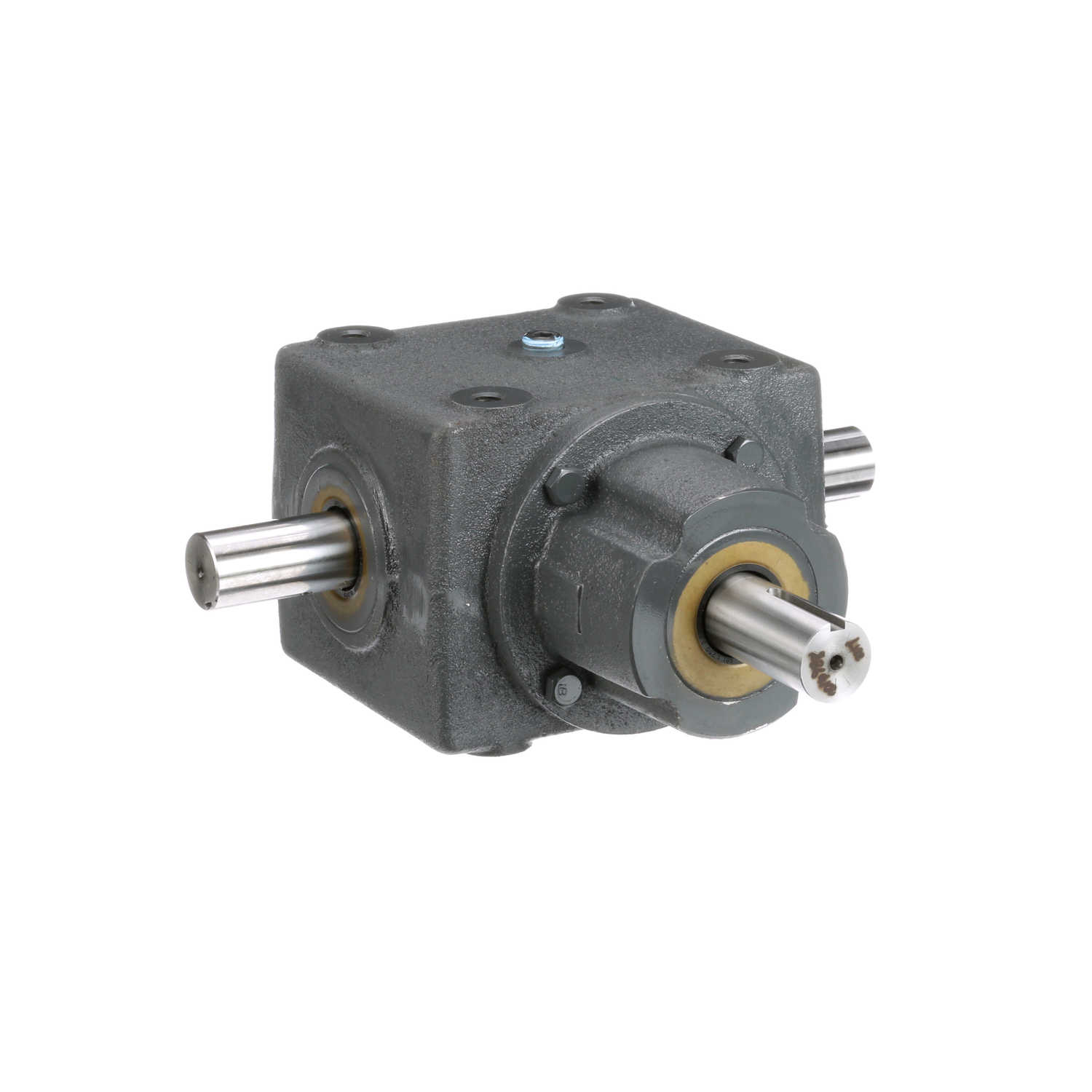

12HB1-LR20 ; BEVEL GEAR REDUCERS

Speed Reducer; Right Angle; 2:1 Ratio; Shaft Input Type; Right and Left Hand Output Type; Direct Mounted; Straight Bevel; 12HB1 Series; 1-1/4" Input Shaft Diameter

Part #

1251610

BDI #
328848

Details

2055.56 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 2,055.56 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Right Angle Shafts
Brand
BROWNING
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
Weight / Kilogram
20.816
EAN
0662289250486
Product Group - BDI
M02282
Reducer Type
Right Angle
Nominal Ratio
2:1
Mounting Frame
Not Applicable
Input Type
Shaft
Output Type
Right and Left Hand
Motor Included
No
Nominal Max Input Rating
10HP
Nominal Max Output RPM
875
Mounting Method
Direct Mounted
Output RPM at 1750 RPM Input
875
Gearing
Straight Bevel
Manufacturer's Series
12HB1
Mounting Position
Floor
Mounting Bolt Pattern footprint
Square
Maximum Overhung load value And um
780Lbs
Base Included
No
Input Rating value plus um
10.9HP
Housing Material And Finish
Rugged Cast Iron
Output Torque
786In-Lbs
Fan Cooling
No
Inch - Metric
Inch
Category - BDI
Reducers Right Angle
Harmonized Tariff Code
8483.40.10.00
Noun
Reducer
Keyword String
Speed Straight Bevel
Manufacturer URL
https://www.regalrexnord.com
Manufacturer Internal Number
1251610
Weight / LBS
48
Long Description
Speed Reducer; Right Angle; 2:1 Ratio; Shaft Input Type; Right and Left Hand Output Type; Direct Mounted; Straight Bevel; 12HB1 Series; 1-1/4" Input Shaft Diameter
Output Shaft Length
2.375 Inch | 60.325 Millimeter
Bolt Hole Diameter
0.5 Inch | 12.7 Millimeter
Base to Center of Input Shaft
2.813 Inch | 71.45 Millimeter
Nominal Center Distance
0 Inch | 0 Millimeter
Overall Width
11.344 Inch | 288.138 Millimeter
Base to Center of Output Shaft
2.813 Inch | 71.45 Millimeter
Overall Length
12.25 Inch | 311.15 Millimeter
Overall Height
5.625 Inch | 142.875 Millimeter
Input Shaft Length
2.5 Inch | 63.5 Millimeter
Input Shaft Diameter
1.25 Inch | 31.75 Millimeter
Output Shaft Diameter
1.25 Inch | 31.75 Millimeter
