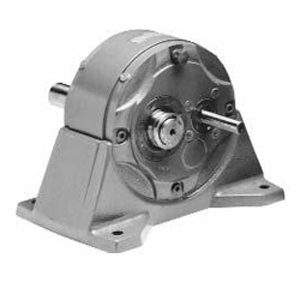

231S-PH-4-H1 https://www.bdiexpress.com/medias/INDB-GSPDRED-200-PL-S-S-BM-1-300x300.jpg?context=bWFzdGVyfHJvb3R8MjQ0MDR8aW1hZ2UvanBlZ3xhREF4TDJoallpOHhNREF4TkRnNE16azNNVEV3TWk5SlRrUkNMVWRUVUVSU1JVUmZNakF3WDFCTVgxTmZVMTlDVFY4eFh6TXdNSGd6TURBdWFuQm58OGY0NGQzZDNlMjM4NWMxNWQ3NzZjOGQ2MTZiMWRmMDRkN2FhMjdkMjZiYzUyNjI3NTY3OGU5YjNjZGU1ZDk3YQ
Back to search results
175058 Parallel Shafts

BOSTON GEAR BOSTON GEAR

231S-PH-4-H1

Description

231S-PH-4-H1 ; NON RETURNABLE

Speed Reducer; OPTIMOUNT; Parallel; 4:1 Ratio; Not Applicable Frame; Shaft Input Type; Shaft Output Type; 431 Output RPM; Direct Mounted; Helical

Part #

231S-PH-4-H1

BDI #
175058

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Parallel Shafts
Brand
BOSTON GEAR
Manufacturer Name
ALTRA INDUSTRIAL MOTION
Minimum Buy Quantity
N/A
Weight / Kilogram
27.24
EAN
0781711581674
Product Group - BDI
M02282
Tradename
OPTIMOUNT
Reducer Type
Parallel
Nominal Ratio
4:1
Mounting Frame
Not Applicable
Input Type
Shaft
Output Type
Shaft
Motor Included
No
Nominal Max Input Rating
5HP
Nominal Max Output RPM
437.5
Mounting Method
Direct Mounted
Output RPM at 1750 RPM Input
431
Gearing
Helical
Manufacturer's Series
200
Mounting Position
Floor
Mounting Bolt Pattern footprint
Rectangular
Maximum Overhung load value And um
575Lbs
Base Included
Yes
Input Rating value plus um
6.63HP
Housing Material And Finish
Cast Iron
Output Torque value plus um
959In-Lbs
Fan Cooling
No
Other Features
Single Reduction | Removable Projection Shaft
Inch - Metric
Inch
Category - BDI
Reducers Parallel Shaft
Harmonized Tariff Code
8483.40.10.00
Noun
Reducer
Keyword String
Speed Helical
Manufacturer URL
https://www.bostongear.com
Manufacturer Item Number
231SPH4
Manufacturer Internal Number
58167
Weight / LBS
60
Long Description
Speed Reducer; OPTIMOUNT; Parallel; 4:1 Ratio; Not Applicable Frame; Shaft Input Type; Shaft Output Type; 431 Output RPM; Direct Mounted; Helical
Overall Length
11.53 Inch | 292.862 Millimeter
Nominal Center Distance
3.11 Inch | 78.994 Millimeter
Overall Width
12.5 Inch | 317.5 Millimeter
Center Distance
3.11 Inch | 78.994 Millimeter
Base to Center of Input Shaft
5.44 Inch | 138.176 Millimeter
Output Shaft Diameter
1.375 Inch | 34.925 Millimeter
Input Shaft Length
3.06 Inch | 77.724 Millimeter
Bolt Hole Diameter
0.531 Inch | 13.487 Millimeter
Output Shaft Length
3 Inch | 76.2 Millimeter
Input Shaft Diameter
0.938 Inch | 23.825 Millimeter
Overall Height
9.88 Inch | 250.952 Millimeter
Base to Center of Output Shaft
5.44 Inch | 138.176 Millimeter
