321602 Spur and Helical Gears

BROWNING BROWNING

YCS6Q96

Description

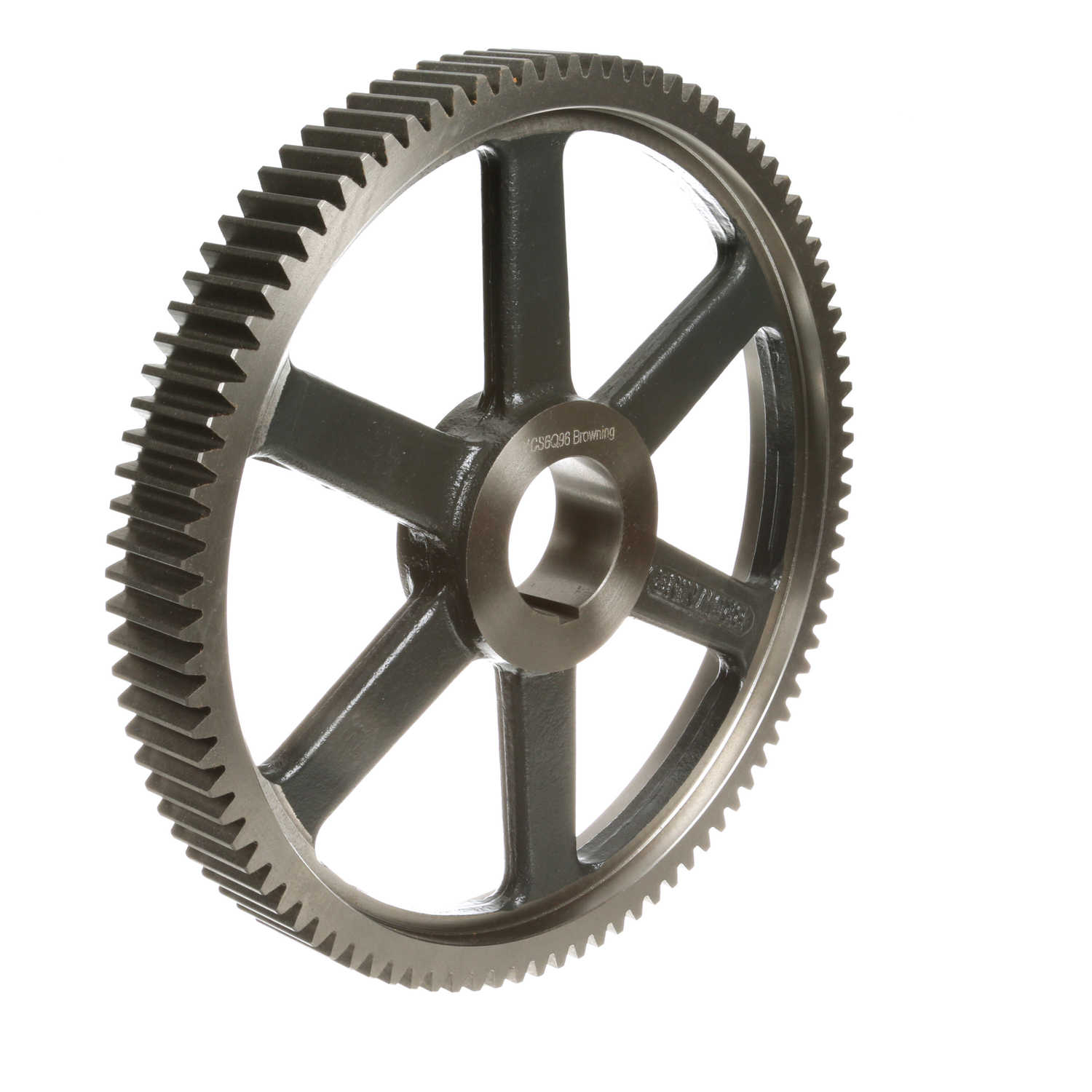

YCS6Q96 ; OPEN GEARING

Spur Gear; 16" Pitch Diameter; 6 DP; 2" Face Width; Bushed; 96 Teeth; 20 Pressure Angle; Q1; 3/4 To 2-11/16" Bushing Bore Range; No Minimum Plain Bore; 4-1/8" Hub Diameter; Cast Iron; No Hardened Teeth

Part #

1220391

BDI #
321602

Details

1279.4 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 1,279.40 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Spur and Helical Gears
Brand
BROWNING
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
UNSPSC
31171707
Weight / Kilogram
15.89
EAN
0662289248131
Product Group - BDI
M02182
Pitch
6 DP
Mounting Method
Bushed
Number of Teeth
96
Pressure Angle
20
Direction
Not Applicable
Bushing Size if bushed
Q1
Minimum Plain Bore
No
Gear Style
Spur Gear
Material
Cast Iron
Hardened Teeth
No
Inch - Metric
Inch
Other Features
Bushing Sold Seperately | Bushing Not Included | Type 17 | Split Taper Bushings
Category - BDI
Spur and Helical Gears
Harmonized Tariff Code
8483.40.90.00
Noun
Gear
Keyword String
Spur
Manufacturer URL
https://www.regalbeloit.com
Manufacturer Internal Number
1220391
Long Description
Spur Gear; 16" Pitch Diameter; 6 DP; 2" Face Width; Bushed; 96 Teeth; 20 Pressure Angle; Q1; 3/4 To 2-11/16" Bushing Bore Range; No Minimum Plain Bore; 4-1/8" Hub Diameter; Cast Iron; No Hardened Teeth
Face Width
2 Inch | 50.8 Millimeter
Bushing Bore Range
3/4 To 2-11/16 Inch | 19.05 To 68.263 Millimeter
Hub Diameter
4.125 Inch | 104.775 Millimeter
Bore
0 Inch | 0 Millimeter
Pitch Diameter
16 Inch | 406.4 Millimeter
