322246 Sheaves - Variable Speed

BROWNING BROWNING

2MVP35B49X 1 1/8

Description

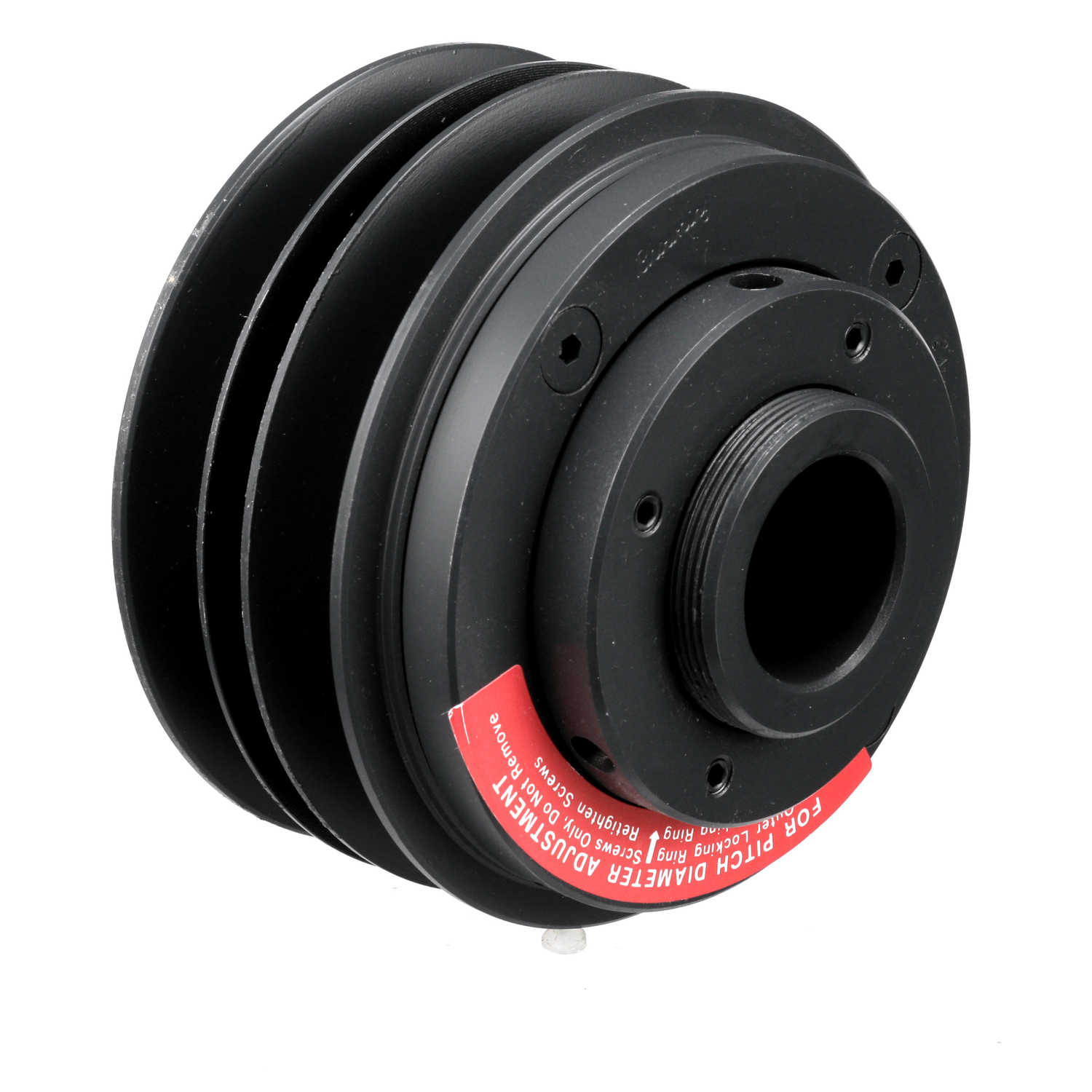

2MVP35B49X 1 1/8 ; MVP SHEAVE

Variable Speed Pulley; 1-1/8" Bore; 2 Grooves; 5.18" Outside Diameter; Finished Bore; No Bushing; A|B Belt Series; 3.4" Pitch Dia Min; 4.9" Pitch Dia Max; 1-15/16" Face Wid Min; 2-5/16" Face Wid Max; Keyway; Manual Turn Adjustment Method

Part #

1019785

BDI #
322246

Details

921.29 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 921.29 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Sheaves - Variable Speed
Brand
BROWNING
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
Weight / Kilogram
4.45
EAN
0662289254170
Product Group - BDI
M02354
Belt Series
A | B
Number of Grooves
2
Mounting Method
Finished Bore
Bushing Size
No Bushing
Keyway Yes/No
Yes
Adjustment Method
Manual Turn
Inch - Metric
Inch
Minimum Plain Bore
No
Category - BDI
Sheave - Variable Speed
Harmonized Tariff Code
8483.50.90.40
Noun
Pulley
Keyword String
Variable Speed
Manufacturer URL
https://www.regalbeloit.com
Manufacturer Item Number
2MVP35B49X 1 1/8
Manufacturer Internal Number
1019785
Weight / LBS
9.8
Long Description
Variable Speed Pulley; 1-1/8" Bore; 2 Grooves; 5.18" Outside Diameter; Finished Bore; No Bushing; A|B Belt Series; 3.4" Pitch Dia Min; 4.9" Pitch Dia Max; 1-15/16" Face Wid Min; 2-5/16" Face Wid Max; Keyway; Manual Turn Adjustment Method
Face Width Minimum
1.938 Inch | 49.225 Millimeter
Bore
1.125 Inch | 28.575 Millimeter
Pitch Diameter Maximum
4.9 Inch | 124.46 Millimeter
Pitch Diameter Minimum
3.4 Inch | 86.36 Millimeter
Belt Width Minimum
0.5 Inch | 12.7 Millimeter
Belt Width Maximum
0.656 Inch | 16.662 Millimeter
Face Width Maximum
2.313 Inch | 58.75 Millimeter
Outside Diameter
5.18 Inch | 131.572 Millimeter
