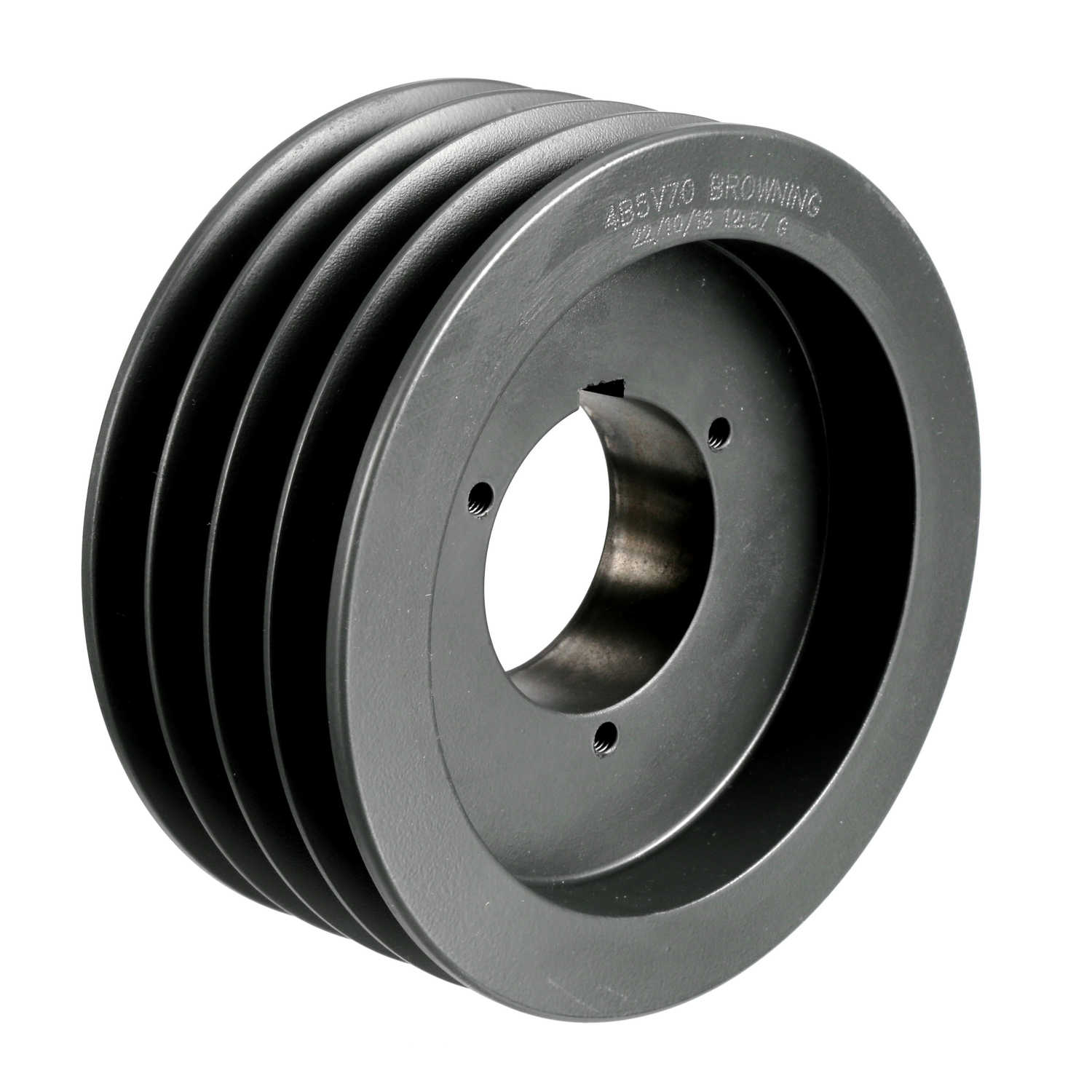

329036 Sheaves - Fixed Pitch

BROWNING BROWNING

4B5V70

Description

4B5V70 ; MULT SHEAVES

Transmission Pulley; 4 Grooves; 7.28" Outside Diameter; Bushed; B Bushing Series; A | B | 5V Belt Series; 6.6" Pitch Minimum; 7.1" Pitch Maximum; 1/2 To 2-7/16" Bushing Bore Range; Keyway

Part #

3694569

BDI #
329036

Details

254.71 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 254.71 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Sheaves - Fixed Pitch
Brand
BROWNING
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
Weight / Kilogram
6.719
EAN
0662289037469
Product Group - BDI
M02350
Number of Grooves
4
Mounting Method
Bushed
Bushing Size
B
Belt Series
A | B | 5V
Keyway Yes/No
Yes
Minimum Plain Bore
No
Other Features
Split Taper Bushing | Web Style | Type 4
Inch - Metric
Inch
Category - BDI
Sheave - Fixed Pitch
Harmonized Tariff Code
8483.50.90.40
Noun
Pulley
Keyword String
Transmission
Manufacturer URL
https://www.regalbeloit.com
Manufacturer Item Number
4B5V70
Manufacturer Internal Number
3694569
Weight / LBS
13.2
Long Description
Transmission Pulley; 4 Grooves; 7.28" Outside Diameter; Bushed; B Bushing Series; A | B | 5V Belt Series; 6.6" Pitch Minimum; 7.1" Pitch Maximum; 1/2 To 2-7/16" Bushing Bore Range; Keyway
Outside Diameter
7.28 Inch | 184.912 Millimeter
Bore
0 Inch | 0 Millimeter
Bushing Bore Range
1/2 To 2-7/16 Inch | 12.7 To 61.913 Millimeter
Pitch Diameter Minimum
6.6 Inch | 167.64 Millimeter
Pitch Diameter Maximum
7.1 Inch | 180.34 Millimeter
