331420
Sheaves - Fixed Pitch
BROWNING
BROWNING
35V1180SF
BROWNING BROWNING
Opis

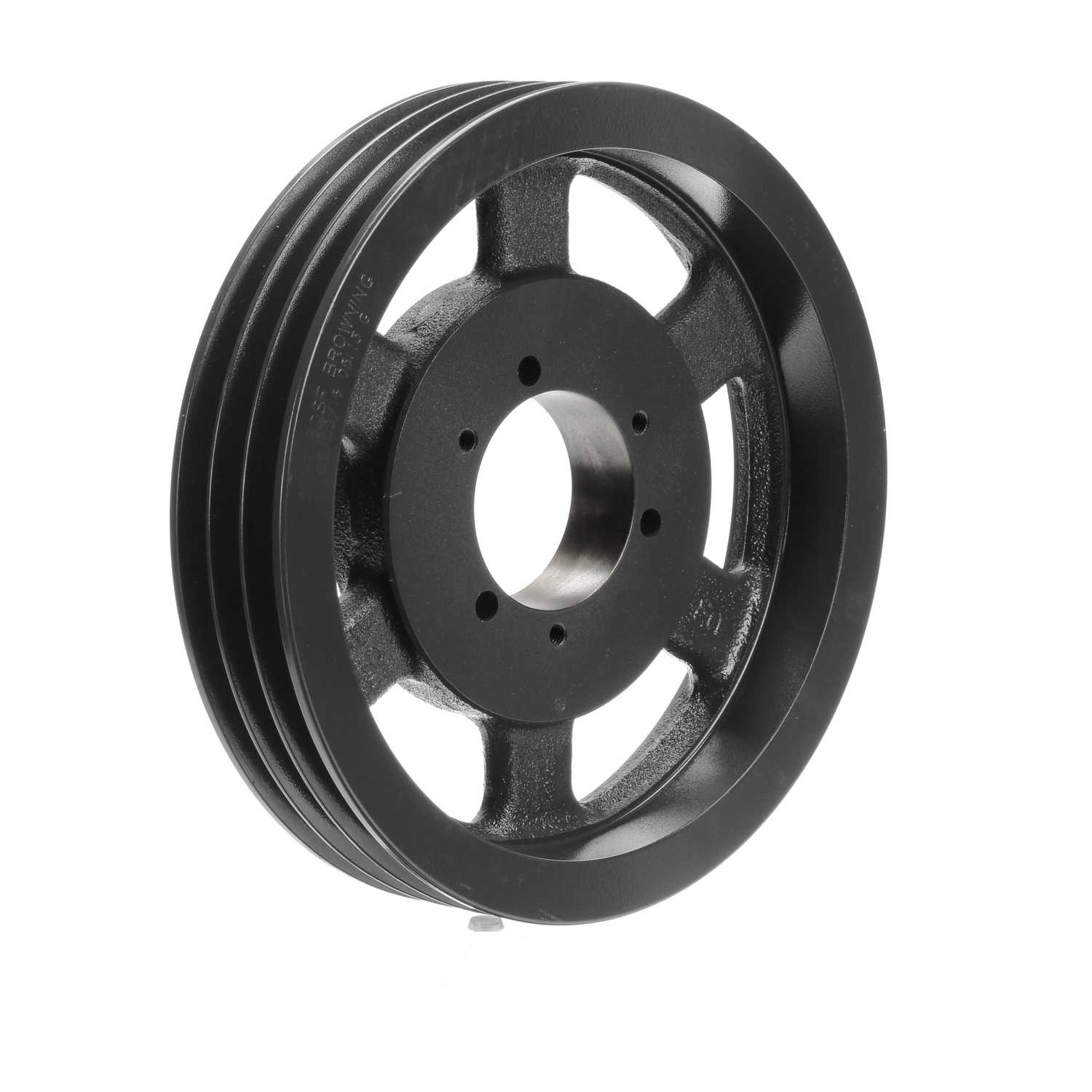

35V1180SF SHEAVE ; 3GROOVE 11.8"OD
3 Grooves; 11.8" Outside Diameter; Bushed; SF Bushing Series; 5V Belt Series; 11.7" Pitch Minimum; 11.7" Pitch Maximum; 1/2 To 2-15/16" Bushing Bore Range; Keyway
Br. Materijala
35V1180SF
BDI br. Materijala
331420
Detalji
2099-12-31
http://schema.org/NewCondition
https://schema.org/LimitedAvailability
https://www.bdiexpress.com/rs/en/Mechanical-Power-Transmission/Belt-Drives/Sheaves-and-Pulleys/Sheaves---Fixed-Pitch/35V1180SF/p/331420
Vaša cena
Zatražite cenu
BDIExpress
|
Specifikacije
Kategorija
Minimalna količina za kupovinu
Nije dostupno
Grupa proizvoda – BDI
M02350
Evropski broj artikla
0662289406234
Težina / Kilogram
11.486
Number of Grooves
3
Mounting Method
Bushed
Bushing Size
SF
Belt Series
5V
Keyway Yes/No
Yes
Minimum Plain Bore
No
Other Features
QD Bushing | Arm Style | Type A3
Inch - Metric
Inch
Category - BDI
Sheave - Fixed Pitch
Harmonized Tariff Code
8483.50.90.40
Noun
Pulley
Keyword String
Transmission
Manufacturer URL
https://www.regalbeloit.com
Manufacturer Item Number
35V1180SF
Manufacturer Internal Number
1065846
Weight / LBS
29.7
Long Description
3 Grooves; 11.8" Outside Diameter; Bushed; SF Bushing Series; 5V Belt Series; 11.7" Pitch Minimum; 11.7" Pitch Maximum; 1/2 To 2-15/16" Bushing Bore Range; Keyway
Pitch Diameter Maximum
11.7 Inch | 297.18 Millimeter
Bore
0 Inch | 0 Millimeter
Outside Diameter
11.8 Inch | 299.72 Millimeter
Bushing Bore Range
1/2 To 2-15/16 Inch | 12.7 To 74.613 Millimeter
Pitch Diameter Minimum
11.7 Inch | 297.18 Millimeter
