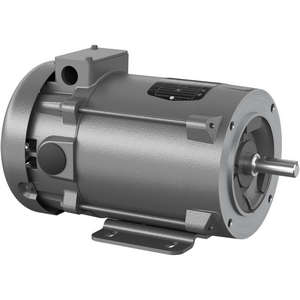

CD5318 https://www.bdiexpress.com/medias/MFRBECMOTORX-9PAA00000173228-300x300.jpg?context=bWFzdGVyfHJvb3R8NzA5NXxpbWFnZS9qcGVnfGFEbGhMMmc0TlM4eE1ERTVNVFkwTmpreE5qWXpPQzlOUmxKQ1JVTk5UMVJQVWxoZk9WQkJRVEF3TURBd01UY3pNakk0WHpNd01IZ3pNREF1YW5CbnwwNmY0OThmZThlZWE3NjhhYjAwNzEyMzA3OGY2ZTJjMWRmNTZjYWVlYTA2ZTVlZDZkYmY3MmNlNzE5NDU3NWVm
Back to search results
125560 DC Motors

BALDOR-RELIANCE BALDOR-RELIANCE

CD5318

Description

CD5318 SHUNT WOUND DC MOTOR ; 1HP 56C FRM 1800RPM 180VDC NEMA TEFC

Shunt Wound; 1HP; 56C Frame Size; 1800 Sync RPM; 180 Voltage; DC; TEFC Enclosure; NEMA Frame Profile; C-Face and Rigid; Base; 5/8" Shaft Diameter; 3-1/2" Base to Center Height; 15.49" Overall Length

Part #

CD5318

BDI #
125560

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
DC Motors
Brand
BALDOR-RELIANCE
Manufacturer Name
ABB MOTORS AND MECHANICAL INC
Minimum Buy Quantity
N/A
Weight / Kilogram
24.06
EAN
0781568124789
Product Group - BDI
M04104
Horse Power
1HP
Frame Size
56C
Sync RPM
1800
Voltage
180
Current
DC
Enclosure
TEFC
Frame Profile
NEMA
Mounting Method
C-Face | Rigid
Base
Yes
Inch - Metric
Inch
Other Features
SCR Drive
Category - BDI
DC Motor
Harmonized Tariff Code
8501.33.40.60
Noun
Motor
Keyword String
Direct Current Shunt Wound
Manufacturer URL
http://www.baldor.com
Weight / LBS
53
Long Description
Shunt Wound; 1HP; 56C Frame Size; 1800 Sync RPM; 180 Voltage; DC; TEFC Enclosure; NEMA Frame Profile; C-Face and Rigid; Base; 5/8" Shaft Diameter; 3-1/2" Base to Center Height; 15.49" Overall Length
Base to Center Height
3.5 Inch | 88.9 Millimeter
Overall Length
15.49 Inch | 393.446 Millimeter
Shaft Diameter
0.625 Inch | 15.875 Millimeter
