C4D18WK13A https://www.bdiexpress.com/medias/MFRREXXXXXXX-10930300-300x300.jpg?context=bWFzdGVyfHJvb3R8MjA0ODB8aW1hZ2UvanBlZ3xhR0V4TDJnMk1pOHhNREExTURFMk16RXhOREF4TkM5TlJsSlNSVmhZV0ZoWVdGaGZNVEE1TXpBek1EQmZNekF3ZURNd01DNXFjR2N8MTYyMDI0MjUwZjY3YmY4YjUzMmExYzdjZjZjZTkwNDUyZTA0YTA4ZmNmYTc1MjAwNjNjMTE3OGJlNzYwMDNlNg

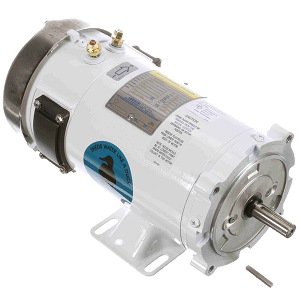

22850721 DC Motors

LEESON LEESON

C4D18WK13A

Description

C4D18WK13A

DC Motor; Farm and Agriculture Duty; 1HP; 56C Frame Size; 1800 Sync RPM; 24 Voltage; DC; TEFC Enclosure; C-Face | Rigid Mounted; Base; 5/8" Shaft Diameter; 6.47" Overall Length; 81.3 Efficiency Full Load

Part #

109303.00

BDI #
22850721

Details

1230.32 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 1,230.32 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
DC Motors
Brand
LEESON
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
Weight / Kilogram
0.005
EAN
0691720100240
Product Group - BDI
M04104
Horse Power
1HP
Frame Size
56C
Sync RPM
1800
Voltage
24
Current
DC
Enclosure
TEFC
Mounting Method
C-Face | Rigid
Base
Yes
Efficiency Full Load
81.3
Inch - Metric
Inch
Other Features
Current Rating 39 Ampere
Category - BDI
DC Motor
Harmonized Tariff Code
8501.33.40.60
Noun
Motor
Keyword String
Direct Current Farm Duty
Manufacturer URL
https://www.regalrexnord.com
Weight / LBS
118
Long Description
DC Motor; Farm and Agriculture Duty; 1HP; 56C Frame Size; 1800 Sync RPM; 24 Voltage; DC; TEFC Enclosure; C-Face | Rigid Mounted; Base; 5/8" Shaft Diameter; 6.47" Overall Length; 81.3 Efficiency Full Load
Overall Length
6.47 Inch | 164.338 Millimeter
Shaft Diameter
0.625 Inch | 15.875 Millimeter
