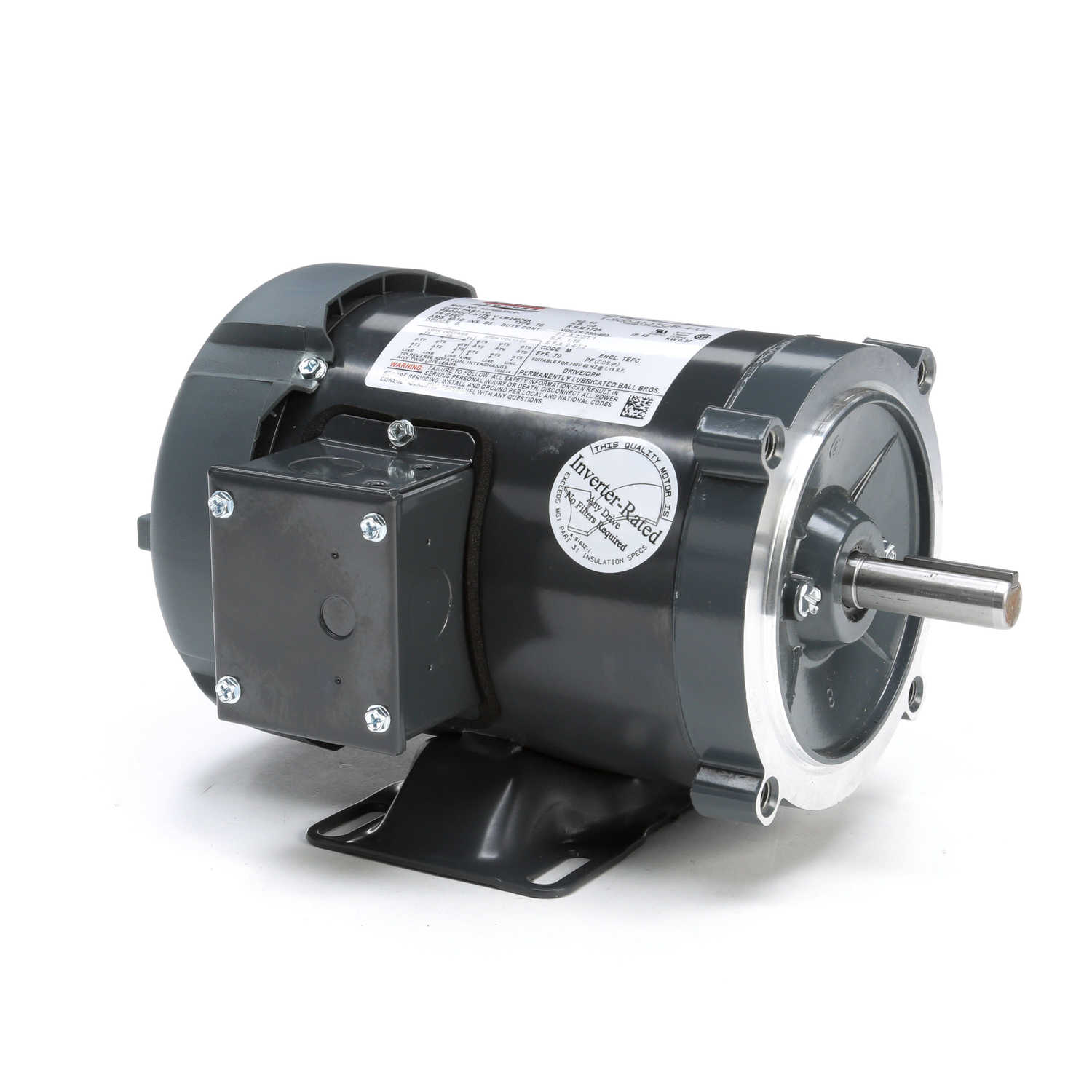

558896 AC Motors

LEESON LEESON

LM24074 OBSOLETE DO NOT USE 07/23

Description

LM24074 OBSOLETE DO NOT USE 07/23 ; .5 HP 1725 230/460 TEFC 56C

AC Motor; General Purpose; 1/2HP; S56C Frame Size; 1800 Sync RPM; 230/460 Voltage; AC; TEFC Enclosure; NEMA Frame Profile; Three Phase; 60 Hertz; Rigid; Base; 5/8" Shaft Diameter; 3-1/2" Base to Center of Shaft; 10.69" Overall Length; 70% Efficiency Full Load

Part #

LM24074

BDI #
558896

Details

464.96 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 464.96 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
AC Motors
Brand
LEESON
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
Weight / Kilogram
8.17
EAN
0691720061268
Product Group - BDI
M04104
Horse Power
1/2HP
Frame Size
S56C
Hertz
60
Sync RPM
1800
Voltage
230/460
Current
AC
Phase
Three Phase
Enclosure
TEFC
Frame Profile
NEMA
Mounting Method
Rigid
Base
Yes
Efficiency Full Load
70
Inch - Metric
Inch
Other Features
Current Rating 2.2/1.1 Ampere | 4 Poles
Category - BDI
AC Motor
Harmonized Tariff Code
8501.51.60.40
Noun
Motor
Keyword String
Alternating Current General Purpose
Manufacturer URL
https://www.regalrexnord.com
Manufacturer Item Number
LM24074
Manufacturer Internal Number
LM24074
Weight / LBS
19
Long Description
AC Motor; General Purpose; 1/2HP; S56C Frame Size; 1800 Sync RPM; 230/460 Voltage; AC; TEFC Enclosure; NEMA Frame Profile; Three Phase; 60 Hertz; Rigid; Base; 5/8" Shaft Diameter; 3-1/2" Base to Center of Shaft; 10.69" Overall Length; 70% Efficiency Full Load
Overall Length
10.69 Inch | 271.526 Millimeter
Shaft Diameter
0.625 Inch | 15.875 Millimeter
Base to Center of Shaft
3.5 Inch | 88.9 Millimeter
