557850 AC Motors

LEESON LEESON

LM10336

Description

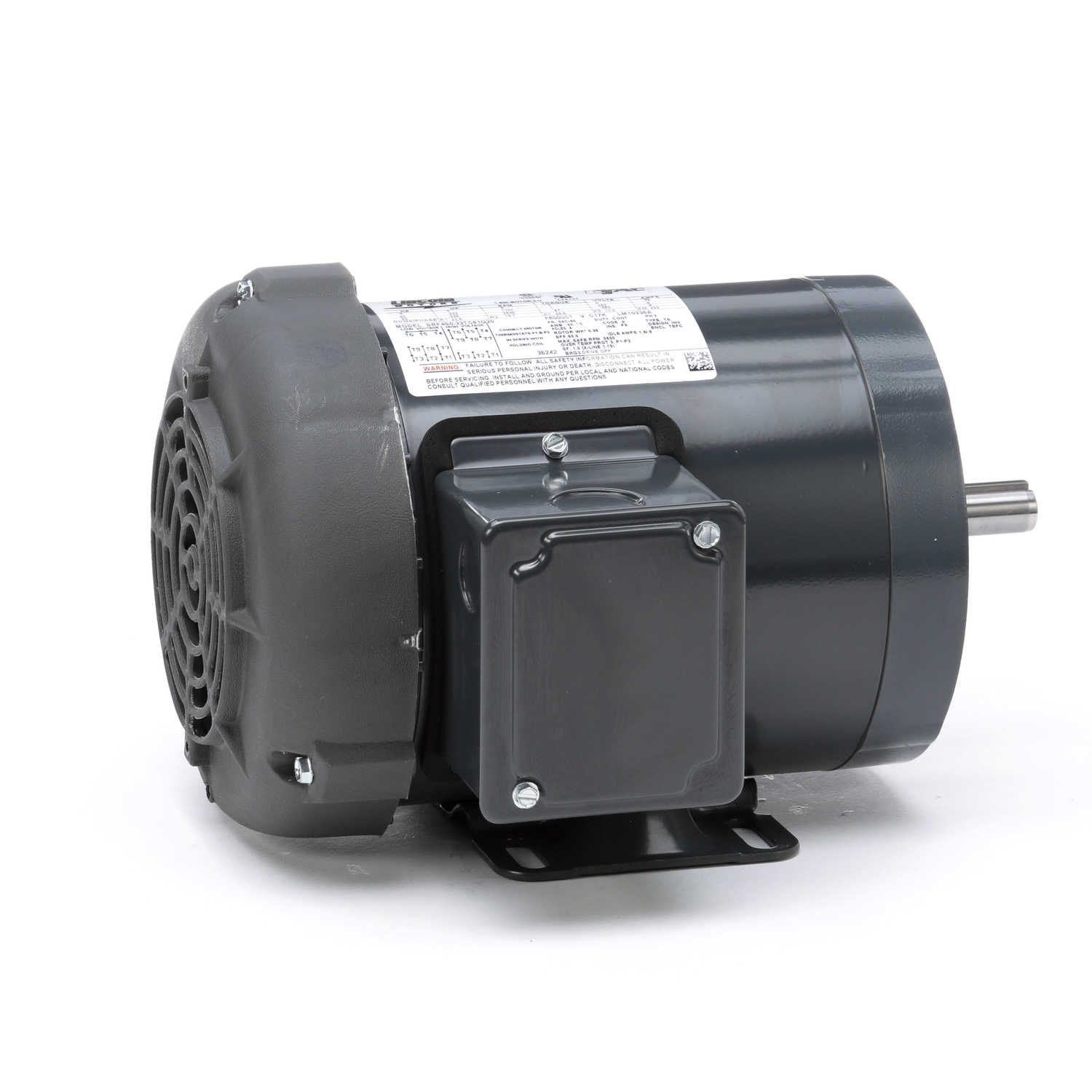

LM10336 ; .33 HP 1725 230/460 TEFC 56C

AC Motor; Inverter; 1/3HP; 56C-60 Frame Size; 1800 Sync RPM; 230/460 Voltage; AC; TEFC Enclosure; NEMA Frame Profile; Three Phase; 60 Hertz; Rigid; Base; 5/8" Shaft Diameter; 3-1/2" Base to Center of Shaft; 11.31" Overall Length; 65.5% Efficiency Full Load

Part #

LM10336

BDI #
557850

Details

522.32 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 522.32 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
AC Motors
Brand
LEESON
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
Weight / Kilogram
11.8
EAN
0691720060469
Product Group - BDI
M04104
Horse Power
1/3HP
Frame Size
56C-60
Hertz
60
Sync RPM
1800
Voltage
230/460
Current
AC
Phase
Three Phase
Enclosure
TEFC
Frame Profile
NEMA
Mounting Method
Rigid
Base
Yes
Efficiency Full Load
65.5
Inch - Metric
Inch
Other Features
Current Rating 1.6/0.8 Ampere | 4 Poles
Category - BDI
AC Motor
Harmonized Tariff Code
8501.51.60.40
Noun
Motor
Keyword String
Alternating Current Inverter
Manufacturer URL
https://www.regalrexnord.com
Manufacturer Item Number
LM10336
Manufacturer Internal Number
LM10336
Weight / LBS
22
Long Description
AC Motor; Inverter; 1/3HP; 56C-60 Frame Size; 1800 Sync RPM; 230/460 Voltage; AC; TEFC Enclosure; NEMA Frame Profile; Three Phase; 60 Hertz; Rigid; Base; 5/8" Shaft Diameter; 3-1/2" Base to Center of Shaft; 11.31" Overall Length; 65.5% Efficiency Full Load
Base to Center of Shaft
3.5 Inch | 88.9 Millimeter
Overall Length
11.31 Inch | 287.274 Millimeter
Shaft Diameter
0.625 Inch | 15.875 Millimeter
