554149 AC Motors

LEESON LEESON

102862.00

Description

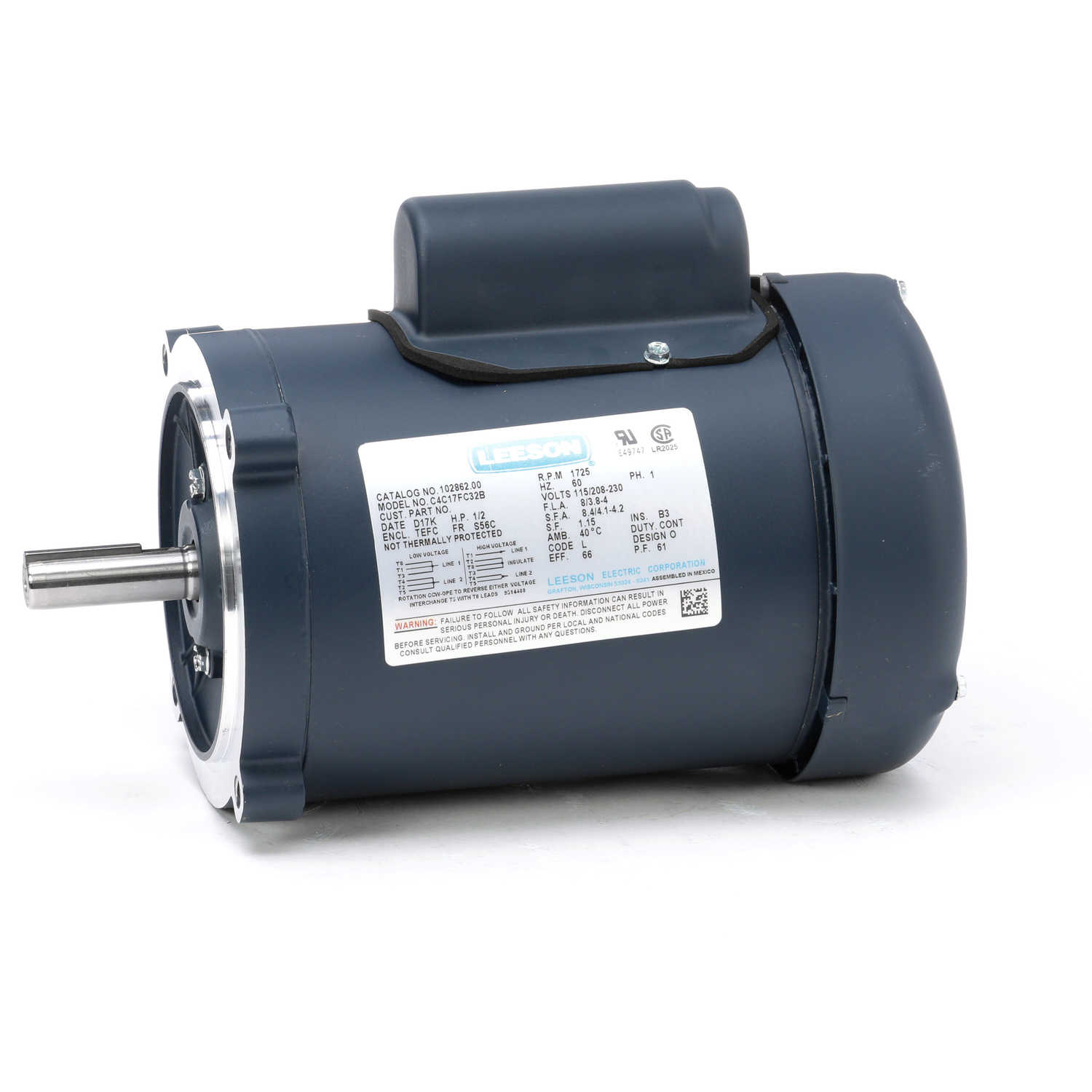

10286200 ; .50HP 1725 115/230 TEFC

AC Motor; General Purpose; 1/2HP; S56C Frame Size; 1800 Sync RPM; 115/208-230 Voltage; AC; TEFC Enclosure; NEMA Frame Profile; Single Phase; 60 Hertz; C-Face; No Base; 5/8" Shaft Diameter; 10.69" Overall Length; 66% Efficiency Full Load

Part #

10286200

BDI #
554149

Details

459.68 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 459.68 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
AC Motors
Brand
LEESON
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
Weight / Kilogram
9.525
EAN
0691720326428
Product Group - BDI
M04104
Horse Power
1/2HP
Frame Size
S56C
Hertz
60
Sync RPM
1800
Voltage
115/208-230
Current
AC
Phase
Single Phase
Enclosure
TEFC
Frame Profile
NEMA
Mounting Method
C-Face
Base
No
Efficiency Full Load
66
Inch - Metric
Inch
Other Features
Current Rating 8/3.8-4 Ampere | 4 Poles
Category - BDI
AC Motor
Harmonized Tariff Code
8501.40.60.40
Noun
Motor
Keyword String
Alternating Current General Purpose
Manufacturer URL
https://www.regalrexnord.com
Manufacturer Item Number
102862.00
Manufacturer Internal Number
102862.00
Weight / LBS
21
Long Description
AC Motor; General Purpose; 1/2HP; S56C Frame Size; 1800 Sync RPM; 115/208-230 Voltage; AC; TEFC Enclosure; NEMA Frame Profile; Single Phase; 60 Hertz; C-Face; No Base; 5/8" Shaft Diameter; 10.69" Overall Length; 66% Efficiency Full Load
Overall Length
10.69 Inch | 271.526 Millimeter
Shaft Diameter
0.625 Inch | 15.875 Millimeter
